Huawei H12-211 Exam
HCNA-HNTD (Huawei Certified Network Associate - Huawei Network Technology and Device) (Page 11 )

Updated On: 7-Feb-2026
Page 11 of 84
PDF with 527 Questions

When R2 forwards data to R3 from R1, which of the following items will change? (Choose two)

  1. The source MAC address
  2. The destination MAC address
  3. The source IP address
  4. The destination IP address

Answer(s): A,B



If Host B also configured the IP address as “192.168.1.1/24”, an IP address config will occur. What will happen as a result?

  1. Host B will send an ICMP request to the destination with the configured IP address. If a reply is received, the host will notify of an address conflict.
  2. Host A will send a gratuitous ARP request to resolve the MAC address of the destination 192.168.1.1, for which Host B will reply.
  3. Host B will send a gratuitous ARP request to resolve the MAC address of the destination 192.168.1.1, for which Host A will reply.
  4. Host A will ignore any received ARP request intended for destination 192.168.1.1.

Answer(s): C

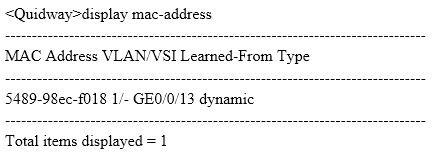

Refer to the graphic.


A switch attempts to forward a frame to the MAC destination 5489-98ec-f011. What operation will occur on the switch?

  1. The switch will send a request to obtain the MAC address of 5489-98ec-f011.
  2. The switch will report that the destination is unreachable and report this to the source.
  3. The switch will flood the frame via all ports, with exception of the port on which the frame was received.
  4. The switch will drop the frame because it does not have an entry in its MAC address table.

Answer(s): C



Host A has been connected to a four port switch A on port G0/0/1and configured with an IP address. When Host A initially forwards a frame, what action will be taken by Switch A?

  1. Switch A will drop this frame.
  2. Switch A will attempt to flood the frame to all ports except for the G0/0/1 interface.
  3. Switch A will forward the frame via ports G0/0/1, G0/0/2 and G0/0/3.
  4. Switch will receive this frame before returning the frame to G0/0/1.

Answer(s): B



A server is linked to port interface G0/0/1 of a switch. The administrator wishes to allow only this server to be linked to this interface on the switch.

Which method can be used to achieve this?

  1. Configure a static ARP entry using the server’s IP address and MAC address in the switch.
  2. Configure a static MAC address binding entry of the server’s MAC address and the interface in the switch.
  3. Configure the default gateway of the switch to be the same as the server’s IP address.
  4. It is not possible to enable a single device to be associated with an interface.

Answer(s): B
