QUESTION: 29

A network administrator recently used tracert to trace the path to the destination IP address of an external website, however the trace path displayed only a timeout result.

Which of the following statements correctly explains the reason for this? (Choose two)

The source router had shutdown the ICMP function.
This destination IP address does not exist.
The gateway cannot find a route to the destination.
This is a normal phenomenon.

Answer(s): B,C

Reveal Solution Next Question

QUESTION: 30

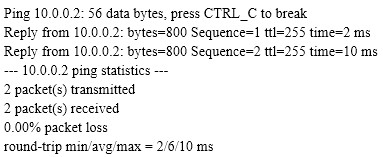

A network administrator uses the ping command to test connectivity to the destination 10.0.0.2 on a Huawei AR series router.

Which statement regarding the output is correct?

The network administrator used the command ping -c 2 -s 800 10.0.0.2
The network administrator used the command ping -a 2 -v 800 10.0.0.2
The path between the source and destination is not OK.
The network administrator changed the default TTL value.

Answer(s): A

Reveal Solution Next Question

QUESTION: 31

Which of the following statements explains the behavior of the ICMP redirect function? (Choose two)

When a router receives data on the interface via which the same data needs to be forwarded, and the source is on the same segment as the next hop, an ICMP redirect message will be sent by the router to the source.
When a router receives data on an interface, and the router’s IP address matches the destination IP of the data, an ICMP redirect message will be sent by the router to the source.
When a router receives data on the interface via which the same data needs to be forwarded, and the source is on the same segment as the next hop, an ICMP Redirect message will be sent by the source to the router.
When a router receives data on the interface via which the same data needs to be forwarded, and the source is on a different segment from the next hop, an ICMP redirect message will be sent by the router to the source

Answer(s): A,D
