ASPF enables the firewall to support multi-channel protocols such as FTP and to define security policies for complex applications.
Answer(s): A
ASPF (Application Specific Packet Filtering) is a feature that allows firewalls to better handle multi-channel protocols like FTP. These protocols require multiple communication channels for their operation (for example, FTP uses separate channels for command and data transmission). ASPF enables firewalls to track and manage these multi-channel communications effectively, ensuring that security policies are applied consistently to all channels involved in the session.For example, when FTP is used, ASPF helps to manage the data channel and control channel separately, ensuring that the firewall can inspect and allow or block both types of traffic correctly.Therefore, ASPF does indeed enable the firewall to support multi-channel protocols and define security policies for complex applications.

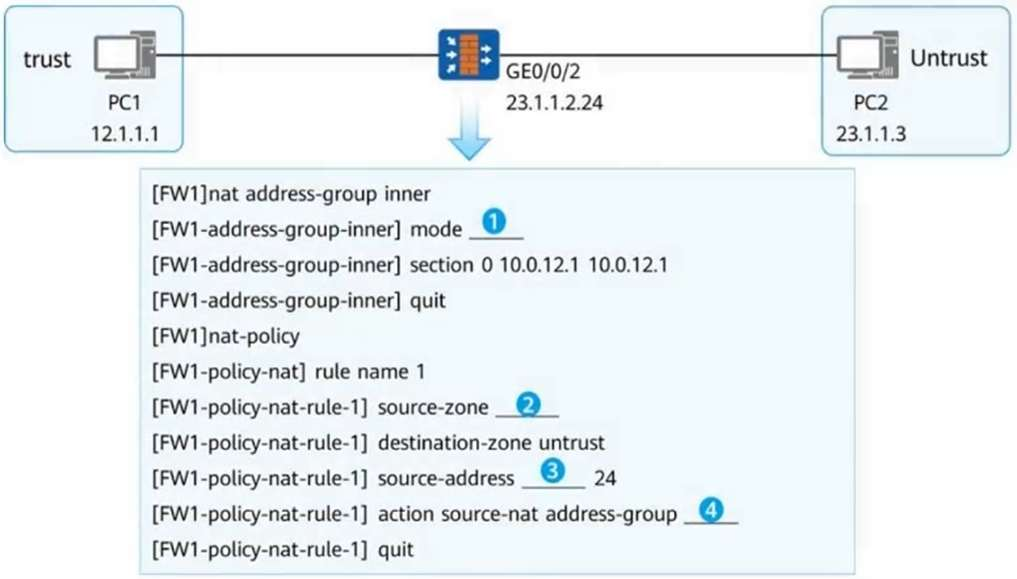

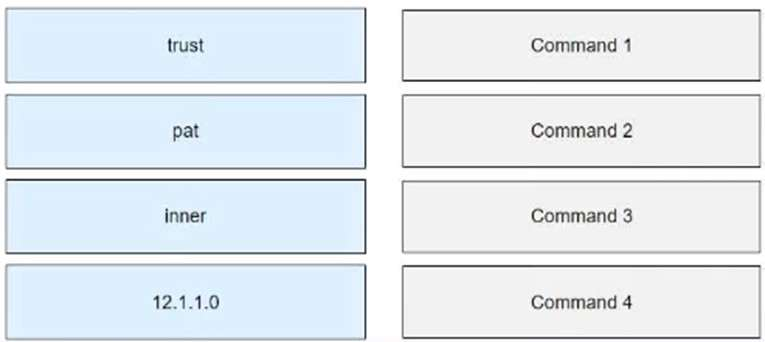

DRAG DROP (Drag and Drop is not supported)To enable PC1 to access PC2 using the IP address of the firewall's GE0/0/2, you need to configure NAPT for source address translation. In the following figure, fill in the blank to complete the command.Select and Place:

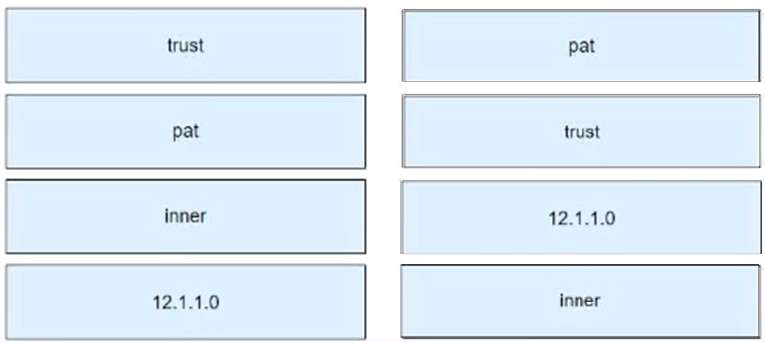

Command 1: patThis specifies that the nat address-group is in Port Address Translation (PAT) mode, allowing multiple internal hosts to share a single public IP.Command 2: trustThis specifies the source zone for NAT, which in this case is the trust zone where PC1 resides.Command 3: 12.1.1.0This is the source IP address or range for NAT, specifying the network (e.g., 12.1.1.0/24) from which NAT will translate outgoing traffic.Command 4: innerThis specifies the nat address-group name (inner) that contains the NAT address pool for translation.
Which of the following statements about BFD operating modes are true? (Choose all that apply.)
Answer(s): A,C,D
Demand mode is a more efficient operating mode where the BFD session is established, and BFD control packets are sent only on demand (i.e., when needed to check the status). It reduces the frequency of BFD packets being sent compared to other modes.Asynchronous mode operates with periodic exchange of BFD control packets at the negotiated interval. If one system fails to receive these packets within the configured detection time, the session is declared down.This ensures fast failure detection.Asynchronous mode is the primary mode used in most BFD implementations. In this mode, both systems continuously send control packets at regular intervals to detect link failures quickly. It is the default mode for BFD.
Which command is used to configure the VRRP preemption delay?
Answer(s): B
In VRRP (Virtual Router Redundancy Protocol), the preemption delay is used to configure the amount of time a router should wait before taking over the role of the master router if it becomes the highest priority router after a failure.The correct command to configure the VRRP preemption delay is:vrrp vrid 1 preempt-delay 20This command ensures that the router with VRID 1 will wait for 20 seconds before it preempts and becomes the master router.
The VRID of the VRRP virtual router is 3 and the virtual IP address is 100.1.1.10. What is the virtual MAC address?
In VRRP (Virtual Router Redundancy Protocol), the virtual MAC address is derived from the VRID (Virtual Router ID) and the multicast MAC address format. The multicast MAC address format for VRRP is 01-00- 5E-00-01-XX.Where XX is the VRID in hexadecimal.Steps:VRID = 3.Convert VRID 3 to hexadecimal: 3 in hexadecimal is 03.The virtual MAC address for VRRP with VRID 3 becomes:01-00-5E-00-01-03.
During the DHCP interaction process, the DHCP server and client exchange various types of packets. Which of the following packets is not sent from the client to the server?
The DHCP NAK is sent by the server to the client, not the other way around. It is used to inform the client that the requested IP address is not available or valid (e.g., the IP is no longer available or the client requested an IP outside of the allowed range).

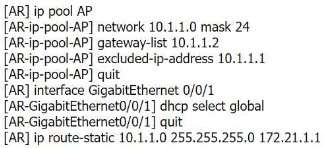

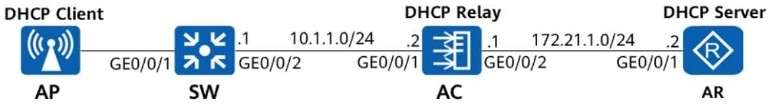

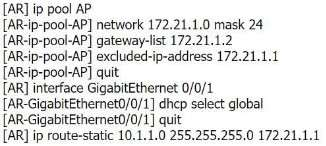

On the network shown in the following figure, the management VLAN is VLAN 10, and the AP is configured to obtain an IP address on the network segment 10.1.1.0/24 through DHCP. The AP, AC, and AR function as the DHCP client, DHCP relay agent, and DHCP server, respectively. Which of the following configurations for the DHCP relay agent and DHCP server are correct? (Choose all that apply.)
Answer(s): A,D

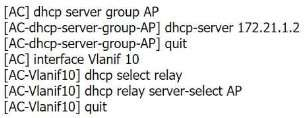

E . AC Configuration:Correctly defines a DHCP server group with the IP 172.21.1.2 (AR's address).Configures VLAN 10 to forward DHCP requests to this server.Correct for the AC.F . AC Configuration:Correctly defines a DHCP server group with the IP 10.1.1.2.Configures VLAN 10 to forward DHCP requests to this server.Correct for the AC, assuming the server is reachable.

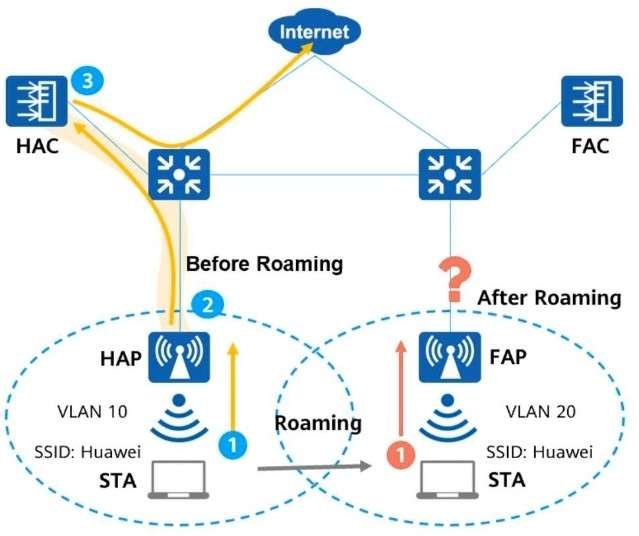

As shown in the figure, data traffic is forwarded in tunnel mode along the path of STA -> HAP -> HAC -> upper- layer network before roaming. What is the flow direction of data traffic after Layer 3 roaming?
The question describes a Layer 3 roaming scenario in tunnel mode, which has specific characteristics:1. Before Roaming:Data traffic from the STA (client) is forwarded via:- HAP (Home Access Point) -> HAC (Home Access Controller) -> Upper-layer network.The tunnel is between the HAP and the HAC.2. After Layer 3 Roaming:After the STA roams to the FAP (Foreign Access Point) in VLAN 20, the traffic is still routed through the original HAC (Home Access Controller) because:- The HAC continues to manage the session (home agent role).- The FAC (Foreign Access Controller) establishes a tunnel to the HAC, ensuring seamless forwarding without breaking the connection.3. Flow Direction:The data flow after roaming becomes:- STA -> FAP -> FAC -> HAC -> Upper-layer network.There is no involvement of the HAP in this traffic path after roaming.
