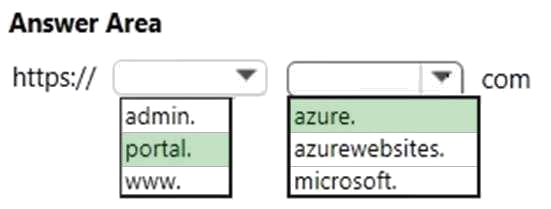

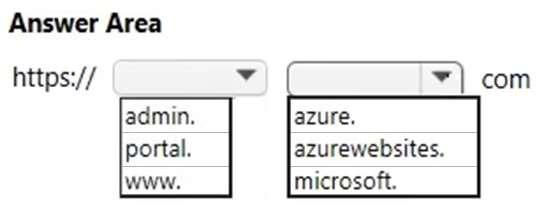

HOTSPOT (Drag and Drop is not supported)You have an Azure environment that contains 10 web apps. To which URL should you connect to manage all the Azure resources? To answer, select the appropriate options in the answer area.NOTE: Each correct selection is worth one point.Hot Area:
Answer(s): A
The Azure portal is a web-based management interface where you can view and manage all your Azure resources in one unified hub, including web apps, databases, virtual machines, virtual networks, storage and Visual Studio team projects.The URL of the Azure portal is https://portal.azure.com.
https://azure.microsoft.com/en-gb/features/azure-portal/

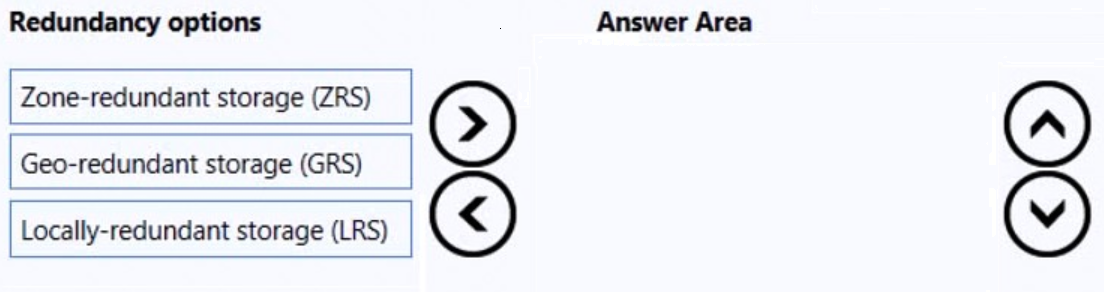

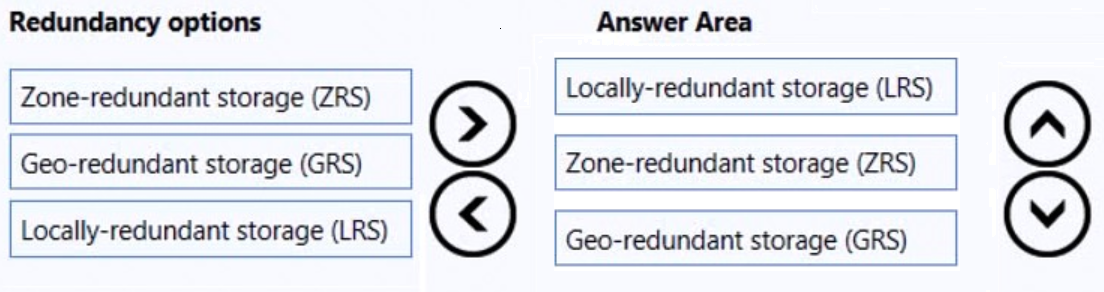

DRAG DROP (Drag and Drop is not supported)Arrange the storage account redundancy options from the least redundant to the most redundant. To answer, move all options from the list of options to the answer area and arrange them in the correct order.
HOTSPOT (Drag and Drop is not supported)Select the answer that correctly completes the sentence.
You need to identify the type of failure for which an Azure Availability Zone can be used to protect access to Azure services. What should you identify?
Answer(s): D
Availability zones expand the level of control you have to maintain the availability of the applications and data on your VMs. An Availability Zone is a physically separate zone, within an Azure region. There are three Availability Zones per supported Azure region.Each Availability Zone has a distinct power source, network, and cooling. By architecting your solutions to use replicated VMs in zones, you can protect your apps and data from the loss of a datacenter. If one zone is compromised, then replicated apps and data are instantly available in another zone.
https://docs.microsoft.com/en-us/azure/virtual-machines/availability

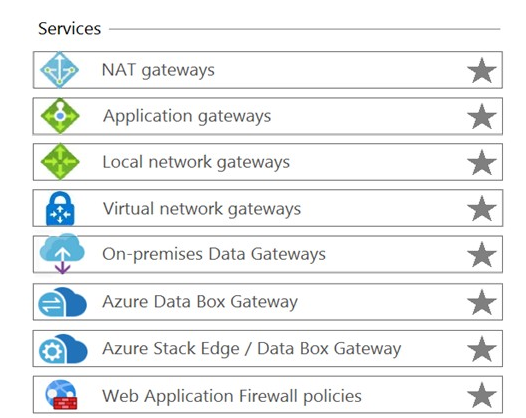

HOTSPOT (Drag and Drop is not supported)You plan to extend your company’s network to Azure. The network contains a VPN appliance that uses an IP address of 131.107.200.1.You need to create an Azure resource that defines the VPN appliance in Azure.Which Azure resource should you create? To answer, select the appropriate resource in the answer area. Hot Area:

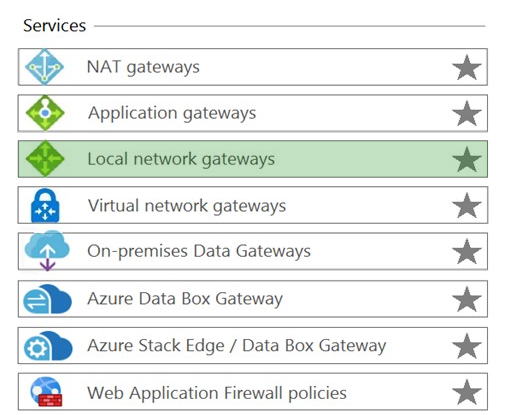

A Local Network Gateway is an object in Azure that represents your on-premise VPN device. A Virtual Network Gateway is the VPN object at the Azure end of the VPN. A ‘connection’ is what connects the Local Network Gateway an the Virtual Network Gateway to bring up the VPN.The local network gateway typically refers to your on-premises location. You give the site a name by which Azure can refer to it, then specify the IP address of the on-premises VPN device to which you will create a connection. You also specify the IP address prefixes that will be routed through the VPN gateway to the VPN device. The address prefixes you specify are the prefixes located on your on-premises network. If your on-premises network changes or you need to change the public IP address for the VPN device, you can easily update the values later.
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-site-to-site-resource-manager-portal
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.You plan to deploy several Azure virtual machines.You need to ensure that the services running on the virtual machines are available if a single data center fails.Solution: You deploy the virtual machines to two or more resource groups.Does this meet the goal?
Answer(s): B
A resource group is a logical container for Azure resources. When you create a resource group, you specify which location to create the resource group in. However, when you create a virtual machine and place it in the resource group, the virtual machine can still be in a different location (different datacenter). Therefore, creating multiple resource groups, even if they are in separate datacenters does not ensure that the services running on the virtual machines are available if a single data center fails.
https://docs.microsoft.com/en-us/azure/azure-resource-manager/management/overview#resource-groups
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.You plan to deploy several Azure virtual machines.You need to ensure that the services running on the virtual machines are available if a single data center fails.Solution: You deploy the virtual machines to a scale set.Does this meet the goal?
This answer does not specify that the scale set will be configured across multiple data centers so this solution does not meet the goal.Azure virtual machine scale sets let you create and manage a group of load balanced VMs. The number of VM instances can automatically increase or decrease in response to demand or a defined schedule. Scale sets provide high availability to your applications, and allow you to centrally manage, configure, and update many VMs.Virtual machines in a scale set can be deployed across multiple update domains and fault domains to maximize availability and resilience to outages due to data center outages, and planned or unplanned maintenance events.
https://docs.microsoft.com/en-us/azure/virtual-machine-scale-sets/availability

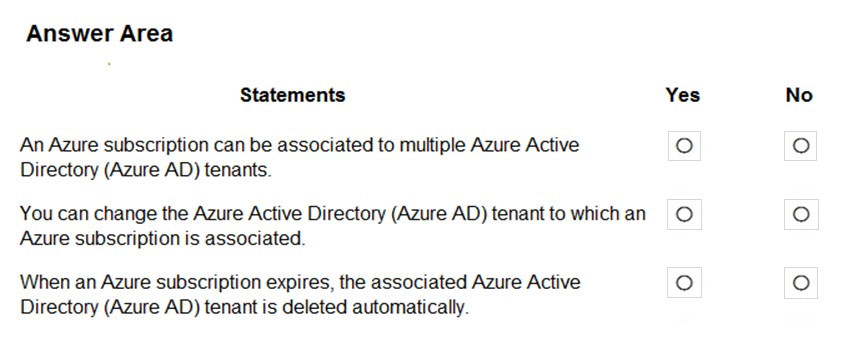

HOTSPOT (Drag and Drop is not supported)For each of the following statements, select Yes if the statement is true. Otherwise, select No.NOTE: Each correct selection is worth one point.Hot Area:

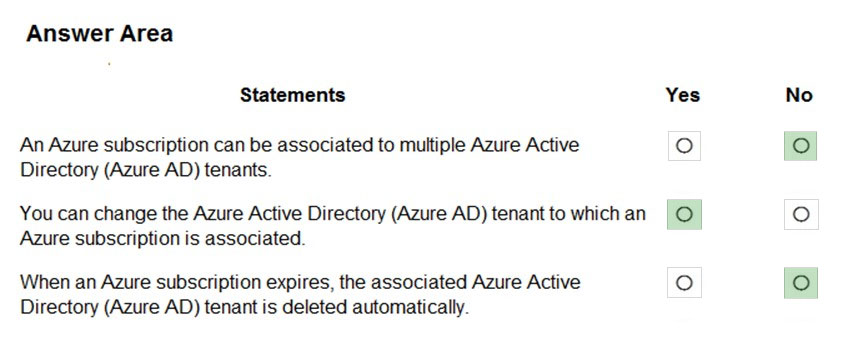

Box 1: NoAn Azure AD tenant can have multiple subscriptions but an Azure subscription can only be associated with one Azure AD tenant.Box 2: YesBox 3: NoIf your subscription expires, you lose access to all the other resources associated with the subscription. However, the Azure AD directory remains in Azure. You can associate and manage the directory using a different Azure subscription.
https://docs.microsoft.com/en-us/azure/active-directory/fundamentals/active-directory-how-subscriptions-associated-directory
