Free MCIA-LEVEL-1 exam questions in PDF & AI Tutor

QUESTION: 1

Mule applications need to be deployed to CloudHub so they can access on-premises database systems. These systems store sensitive and hence tightly protected data, so are not accessible over the internet.
What network architecture supports this requirement?

An Anypoint VPC connected to the on-premises network using an IPsec tunnel or AWS DirectConnect, plus matching firewall rules in the VPC and on-premises network
Static IP addresses for the Mule applications deployed to the CloudHub Shared Worker Cloud, plus matching firewall rules and IP whitelisting in the on-premises network
An Anypoint VPC with one Dedicated Load Balancer fronting each on-premises database system, plus matching IP whitelisting in the load balancer and firewall rules in the VPC and on-premises network
Relocation of the database systems to a DMZ in the on-premises network, with Mule applications deployed to the CloudHub Shared Worker Cloud connecting only to the DMZ

Answer(s): A

Explanation:

* "Relocation of the database systems to a DMZ in the on-premises network, with Mule applications deployed to the CloudHub Shared Worker Cloud connecting only to the DMZ" is not a feasible option
* "Static IP addresses for the Mule applications deployed to the CloudHub Shared Worker Cloud, plus matching firewall rules and IP whitelisting in the on-premises network" - It is risk for sensitive data. - Even if you whitelist the database IP on your app, your app wont be able to connect to the database so this is also not a feasible option
* "An Anypoint VPC with one Dedicated Load Balancer fronting each on-premises database system, plus matching IP whitelisting in the load balancer and firewall rules in the VPC and on-premises network" Adding one VPC with a DLB for each backend system also makes no sense, is way too much work. Why would you add a LB for one system.
* Correct answer: "An Anypoint VPC connected to the on-premises network using an IPsec tunnel or AWS DirectConnect, plus matching firewall rules in the VPC and on-premises network"

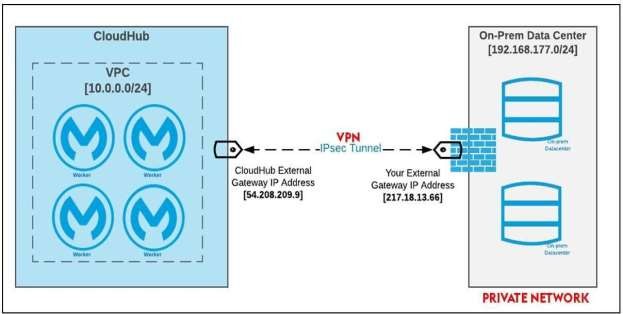

IPsec Tunnel You can use an IPsec tunnel with network-to-network configuration to connect your on- premises data centers to your Anypoint VPC. An IPsec VPN tunnel is generally the recommended solution for VPC to on-premises connectivity, as it provides a standardized, secure way to connect. This method also integrates well with existing IT infrastructure such as routers and appliances.

Reference:

https://docs.mulesoft.com/runtime-manager/vpc-connectivity-methods-concept

Show Answer Next Question

QUESTION: 2

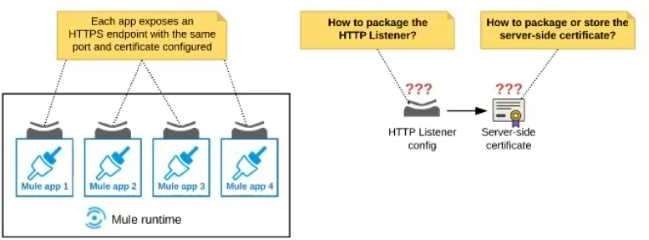

Refer to the exhibit.

An organization deploys multiple Mule applications to the same customer -hosted Mule runtime. Many of these Mule applications must expose an HTTPS endpoint on the same port using a server- side certificate that rotates often.

What is the most effective way to package the HTTP Listener and package or store the server-side certificate when deploying these Mule applications, so the disruption caused by certificate rotation is minimized?

Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint Package the server-side certificate in ALL Mule APPLICATIONS that need to expose an HTTPS endpoint
Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime's classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION
Package an HTTPS Listener configuration In all Mule APPLICATIONS that need to expose an HTTPS endpoint Package the server-side certificate in a NEW Mule DOMAIN project
Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing It from all Mule applications that need to expose an HTTPS endpoint. Package the server-side certificate in the SAME Mule DOMAIN project Go to Set

Answer(s): B

Explanation:

In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.

Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime’s classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

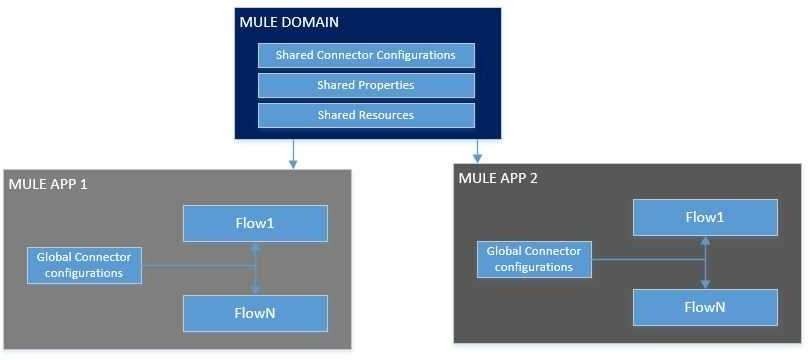

What is Mule Domain Project?
* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.
* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.
* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:
1) Create a Mule Domain project
2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project
3) Modify the value of domain in mule-deploy.properties file of the applications

Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)

Show Answer Next Question

QUESTION: 3

An API client is implemented as a Mule application that includes an HTTP Request operation using a default configuration. The HTTP Request operation invokes an external API that follows standard HTTP status code conventions, which causes the HTTP Request operation to return a 4xx status code. What is a possible cause of this status code response?

An error occurred inside the external API implementation when processing the HTTP request that was received from the outbound HTTP Request operation of the Mule application
The external API reported that the API implementation has moved to a different external endpoint
The HTTP response cannot be interpreted by the HTTP Request operation of the Mule application after it was received from the external API
The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application

Answer(s): D

Explanation:

Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application"
Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user’s request, and not with the server.
Such cases usually arise when a user’s access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public’s view.
In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user — either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are 400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently.
The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------
In Lay man's term the scenario would be: API CLIENT —> MuleSoft API - HTTP request “Hey, API.. process this” —
> External API API CLIENT <– MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <– (4XX) External API

Show Answer Next Question

QUESTION: 4

An XA transaction Is being configured that involves a JMS connector listening for Incoming JMS messages. What is the meaning of the timeout attribute of the XA transaction, and what happens after the timeout expires?

The time that is allowed to pass between committing the transaction and the completion of the Mule flow After the timeout, flow processing triggers an error
The time that Is allowed to pass between receiving JMS messages on the same JMS connection After the timeout, a new JMS connection Is established
The time that Is allowed to pass without the transaction being ended explicitly After the timeout, the transaction Is forcefully rolled-back
The time that Is allowed to pass for state JMS consumer threads to be destroyed After the timeout, a new JMS consumer thread is created

Answer(s): C

Explanation:

* Setting a transaction timeout for the Bitronix transaction manager
● Set the transaction timeout either
– In wrapper.conf
– In CloudHub in the Properties tab of the Mule application deployment
● The default is 60 secs. It is defined as mule.bitronix.transactiontimeout = 120
* This property defines the timeout for each transaction created for this manager.
If the transaction has not terminated before the timeout expires it will be automatically rolled back.

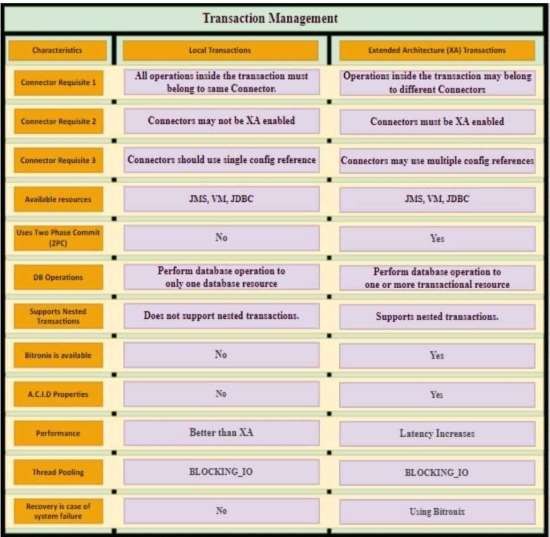

Additional Info around Transaction Management:
Bitronix is available as the XA transaction manager for Mule applications
● To use Bitronix, declare it as a global configuration element in the Mule application
<bti:transaction-manager />
● Each Mule runtime can have only one instance of a Bitronix transaction manager, which is shared by all Mule applications
● For customer-hosted deployments, define the XA transaction manager in a Mule domain
– Then share this global element among all Mule applications in the Mule runtime

Show Answer Next Question

QUESTION: 5

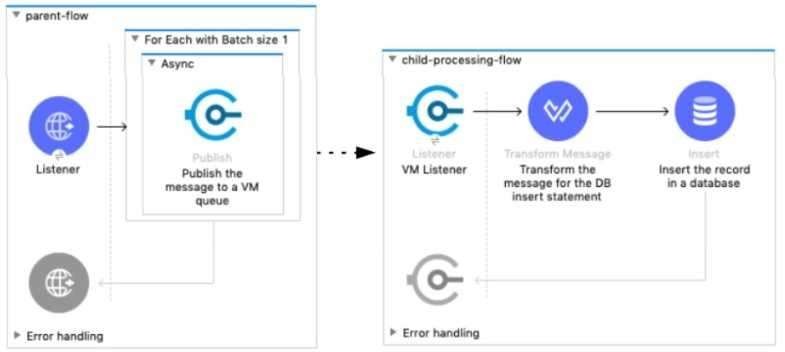

Refer to the exhibit.

A Mule 4 application has a parent flow that breaks up a JSON array payload into 200 separate items, then sends each item one at a time inside an Async scope to a VM queue.
A second flow to process orders has a VM Listener on the same VM queue. The rest of this flow processes each received item by writing the item to a database.
This Mule application is deployed to four CloudHub workers with persistent queues enabled.
What message processing guarantees are provided by the VM queue and the CloudHub workers, and how are VM messages routed among the CloudHub workers for each invocation of the parent flow under normal operating conditions where all the CloudHub workers remain online?

EACH item VM message is processed AT MOST ONCE by ONE CloudHub worker, with workers chosen in a deterministic round-robin fashion Each of the four CloudHub workers can be expected to process 1/4 of the Item VM messages (about 50 items)
EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker Each of the four CloudHub workers can be expected to process some item VM messages
ALL Item VM messages are processed AT LEAST ONCE by the SAME CloudHub worker where the parent flow was invoked. This one CloudHub worker processes ALL 200 item VM messages
ALL item VM messages are processed AT MOST ONCE by ONE ARBITRARY CloudHub worker This one CloudHub worker processes ALL 200 item VM messages

Answer(s): B

Explanation:

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue

Reference:

https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult

Show Answer Next Question

MuleSoft MCIA-LEVEL-1: Skills Tested, Job Roles, and Study Tips

The MuleSoft Certified Integration Architect - Level 1 certification is designed for professionals who operate at the intersection of business requirements and technical implementation within the Anypoint Platform ecosystem. Individuals who pursue this certification typically function as integration architects, lead developers, or technical consultants responsible for designing scalable, secure, and resilient integration solutions. Organizations hiring for these roles look for candidates who can demonstrate a deep understanding of API-led connectivity, architectural patterns, and the lifecycle management of APIs. Achieving this MuleSoft certification validates that a professional possesses the necessary expertise to guide development teams, ensure best practices are followed during the design phase, and align technical outcomes with overarching business goals. Because this role is critical to enterprise digital transformation, the certification serves as a benchmark for verifying that an architect can handle complex integration challenges in real-world environments.

What the MCIA-LEVEL-1 Exam Covers

The MCIA-LEVEL-1 exam evaluates a candidate's ability to design integration solutions that are not only functional but also maintainable and secure over the long term. The exam covers core domains such as API-led connectivity, which is the foundational methodology for MuleSoft projects, requiring candidates to understand how to structure APIs across system, process, and experience layers. Furthermore, the exam tests knowledge of Anypoint Platform capabilities, including deployment strategies, security configurations, and performance tuning, which are essential for any architect managing enterprise-grade integrations. By working through our practice questions, candidates can familiarize themselves with the specific scenarios that test these architectural concepts, ensuring they are prepared to apply theoretical knowledge to practical design problems. The curriculum emphasizes the ability to make informed trade-offs between different architectural patterns, ensuring that the chosen solution meets both performance requirements and organizational constraints.

The most technically demanding aspect of the exam often involves complex scenario-based questions that require a deep understanding of high availability, disaster recovery, and security protocols within the Anypoint Platform. Candidates must demonstrate they can architect solutions that handle high-volume traffic while maintaining data integrity and security compliance across distributed systems. This requires more than just knowing the definitions of platform features; it demands the ability to synthesize multiple requirements—such as latency, throughput, and authentication standards—into a cohesive design. Mastering these areas is essential because the exam frequently presents situations where multiple solutions might seem viable, but only one aligns perfectly with MuleSoft's recommended architectural best practices.

Are These Real MCIA-LEVEL-1 Exam Questions?

Our platform provides access to practice questions that are sourced and verified by the community, consisting of IT professionals and recent test-takers who have sat for the actual certification exam. These community-verified resources are designed to help you understand the format and logic of the exam, ensuring our questions reflect what appears on the real exam because they are sourced from the community. If you've been searching for MCIA-LEVEL-1 exam dumps or braindump files, our community-verified practice questions offer something more valuable, each question is verified and explained by IT professionals who recently passed the exam. We prioritize accuracy and pedagogical value over simple memorization, ensuring that you are learning the underlying principles required to pass the certification exam rather than just memorizing patterns. This approach ensures that the content remains relevant and trustworthy for all users.

The community verification process is the cornerstone of our platform, where users actively participate in refining the accuracy of the material. When a user encounters a question, they have the opportunity to discuss answer choices, flag potentially incorrect information, and share context from their own recent exam experience. This collaborative environment allows for a continuous feedback loop, where the collective knowledge of the community helps clarify difficult concepts and correct nuances in the explanations. By engaging with these discussions, you gain insights into why certain answers are correct and why others are distractors, which is a critical component of effective exam preparation.

How to Prepare for the MCIA-LEVEL-1 Exam

Effective exam preparation for the MuleSoft Certified Integration Architect - Level 1 exam requires a balanced approach that combines hands-on experience with rigorous study of official documentation. Candidates should spend significant time working within a sandbox or real-world Anypoint Platform environment to gain practical familiarity with the tools and configurations discussed in the exam objectives. It is vital to prioritize understanding architectural concepts over rote memorization, as the exam is heavily focused on scenario-based problem solving. Every practice question includes a free AI Tutor explanation that breaks down the reasoning behind the correct answer, so you understand the concept, not just the answer. Building a consistent study schedule that allows for deep dives into specific topics, such as API security or deployment models, will significantly improve your retention and readiness.

A common mistake candidates make is relying solely on memorizing questions and answers, which leaves them unprepared for the nuanced, scenario-based nature of the actual certification exam. Because the exam tests your ability to apply knowledge to specific business problems, you must be able to analyze requirements and determine the best architectural fit, which cannot be achieved through memorization alone. Additionally, many candidates struggle with time management during the exam because they spend too much time on complex scenarios without a clear strategy for elimination. To avoid this, use your practice sessions to simulate exam conditions, focusing on identifying key requirements in the prompt and quickly eliminating clearly incorrect options. By treating each practice question as a learning opportunity rather than a test of memory, you will build the critical thinking skills necessary for success.

What to Expect on Exam Day

On the day of your MuleSoft certification exam, you should be prepared for a rigorous assessment that typically includes a mix of multiple-choice and scenario-based questions. These questions are designed to test your ability to make architectural decisions under pressure, often requiring you to select the most appropriate solution based on a set of provided constraints and business goals. The exam is administered through a professional testing environment, such as Pearson VUE, which ensures a secure and standardized testing experience for all candidates. You will have a set amount of time to complete the exam, and it is important to pace yourself carefully, ensuring you have enough time to review complex scenarios thoroughly. Familiarity with the exam interface and the types of questions asked will help reduce anxiety and allow you to focus entirely on demonstrating your architectural expertise.

Who Should Use These MCIA-LEVEL-1 Practice Questions

These practice questions are intended for experienced integration architects, lead developers, and technical consultants who are actively pursuing the MuleSoft Certified Integration Architect - Level 1 credential. Ideally, candidates should have significant hands-on experience with the Anypoint Platform and a solid grasp of enterprise integration patterns before sitting for the certification exam. Whether you are looking to validate your existing skills for a new role or aiming to advance your career within your current organization, this certification is a recognized standard in the industry. Using these resources as part of your exam preparation will help you identify knowledge gaps and reinforce your understanding of complex topics. The goal is to ensure that when you walk into the testing center, you are confident in your ability to handle any scenario the exam presents.

To get the most out of these practice questions, do not simply read the correct answer and move on; instead, engage deeply with the AI Tutor explanation provided for each item. Take the time to read the community discussions, as these often contain valuable context and alternative perspectives that can deepen your understanding of the subject matter. If you find yourself consistently getting certain types of questions wrong, flag them and revisit them later to ensure you have mastered the underlying concept. By actively managing your study process and utilizing the community feedback, you will be well-positioned to succeed. Browse the questions above and use the community discussions and AI Tutor to build real exam confidence.
