NFPA CFPE Exam Questions
Certified Fire Planiner (Page 4 )

Updated On: 28-Feb-2026
Page 4 of 21
PDF with 100 Questions

Actuation of alarm notification appliances at the protected premises shall occur within how many seconds after the activation of an initiating device?

  1. 10 seconds
  2. 30 seconds
  3. 60 seconds
  4. 90 seconds

Answer(s): A

Explanation:

According to NFPA 72, National Fire Alarm and Signaling Code, the actuation of alarm notification appliances at the protected premises shall occur within 10 seconds after the activation of an initiating device, such as a smoke detector or manual pull station. This quick response time is crucial to ensure occupants are promptly alerted to evacuate in case of a fire or emergency, minimizing potential harm or loss of life. This requirement is established to maximize safety and compliance with fire protection standards.



Exhibit.

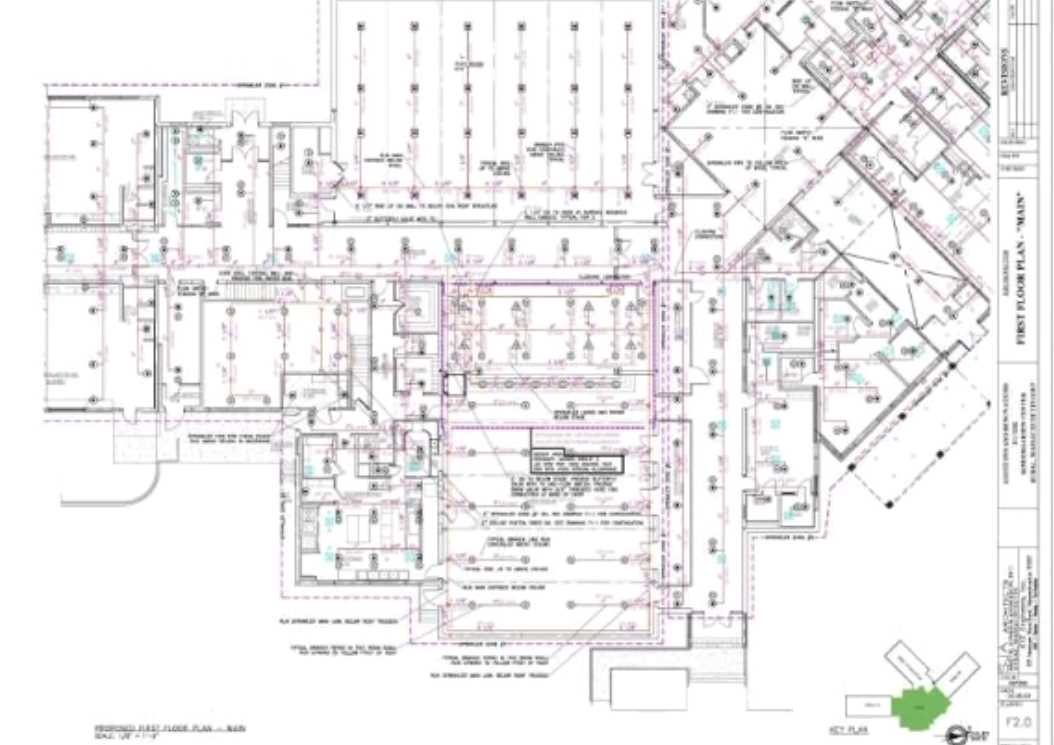

On plan F2.0. the fire sprinklers in playroom A14 are supplied by what size cross main?

  1. 1 in (25 mm)
  2. 1 1/4 in (32 mm)
  3. 2 1 2 m (64 mm)
  4. 3 in (76 mm)

Answer(s): B

Explanation:

On plan F2.0, the fire sprinklers in playroom A14 are supplied by a cross main with a diameter of 1 1/4 inches (32 mm). This size is adequate to deliver the necessary flow rate and pressure required to meet the fire protection demand for a room of this size and occupancy. The sprinkler system design and piping must comply with NFPA 13, Standard for the Installation of Sprinkler Systems, which outlines the required sizing and installation practices for fire protection systems in various types of occupancies, including playrooms and similar spaces.



What is the maximum travel distance to an exit that is permitted in a sprinklered movie theater'?

  1. 100 ft (30 m)
  2. 150 ft (46 m)
  3. 200 ft (61m)
  4. 250 ft (76 m)

Answer(s): C

Explanation:

For a sprinklered movie theater, the maximum travel distance to an exit is typically 200 feet (61 meters), as stipulated by NFPA 101, Life Safety Code. This distance is determined based on the need to ensure safe egress for occupants in an emergency, balancing the need for quick evacuation with the layout and size of the building. The 200 ft maximum allows sufficient time for occupants to reach an exit while maintaining safety standards in a fully sprinklered environment.



Exhibit.



On plan A12 what occupant load factor would you use?

  1. 30 ft2 (2 8 m2)
  2. 50 ft2 (4 6 m2)
  3. 100 ft2 (9 3 m2)
  4. 200 ft2 (18 6 m2)

Answer(s): A

Explanation:

On plan A12, the occupant load factor to use is 30 ft² (2.8 m²) per person. This factor is used to calculate the maximum number of occupants for a given space based on its size and usage, ensuring that the building adheres to safe occupancy levels as required by fire safety codes. The occupant load factor is determined by the type of occupancy and activity level within the space and is outlined in NFPA 101, Life Safety Code, which provides guidelines for calculating occupant loads to ensure safety during an emergency evacuation.
Top of Form
Bottom of Form



Exhibit.

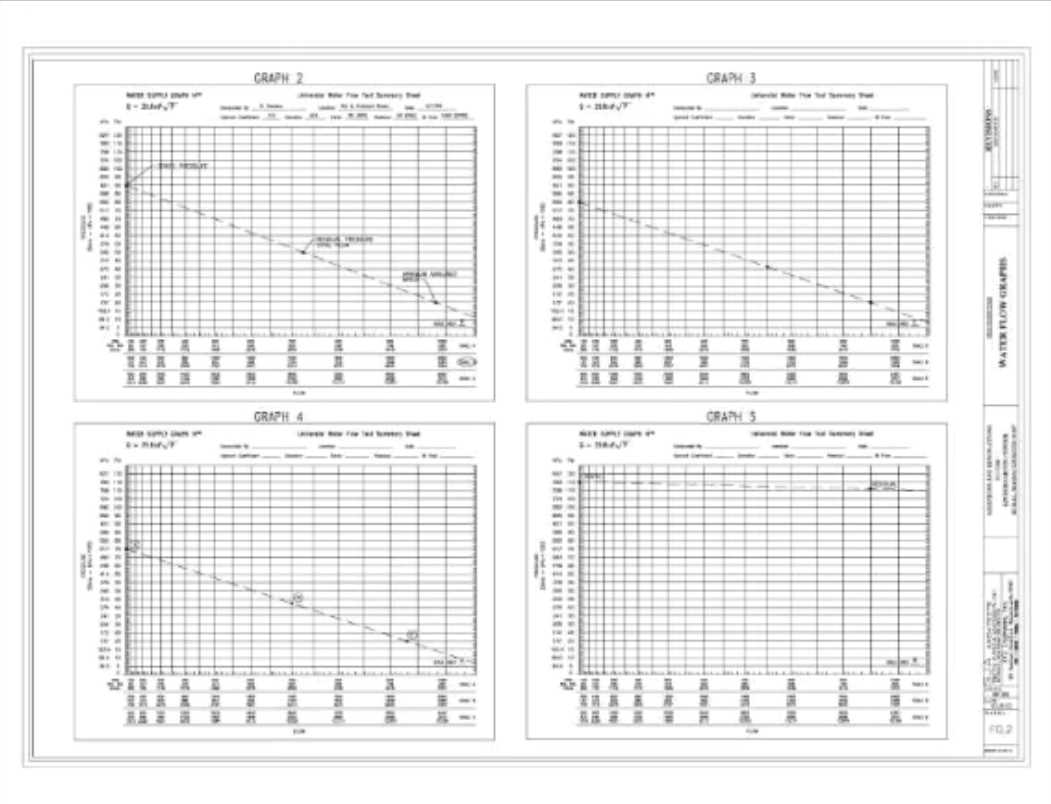

What is the approximate maximum available water indicated on supply graph 2 on plan F0.2?

  1. 980 gpm (3,709 Ipm)
  2. 1,680 gpm (6,359 Ipm)
  3. 1.980gpm (7,495 Ipm)
  4. 3,980gpm(15,066lpm)

Answer(s): C

Explanation:

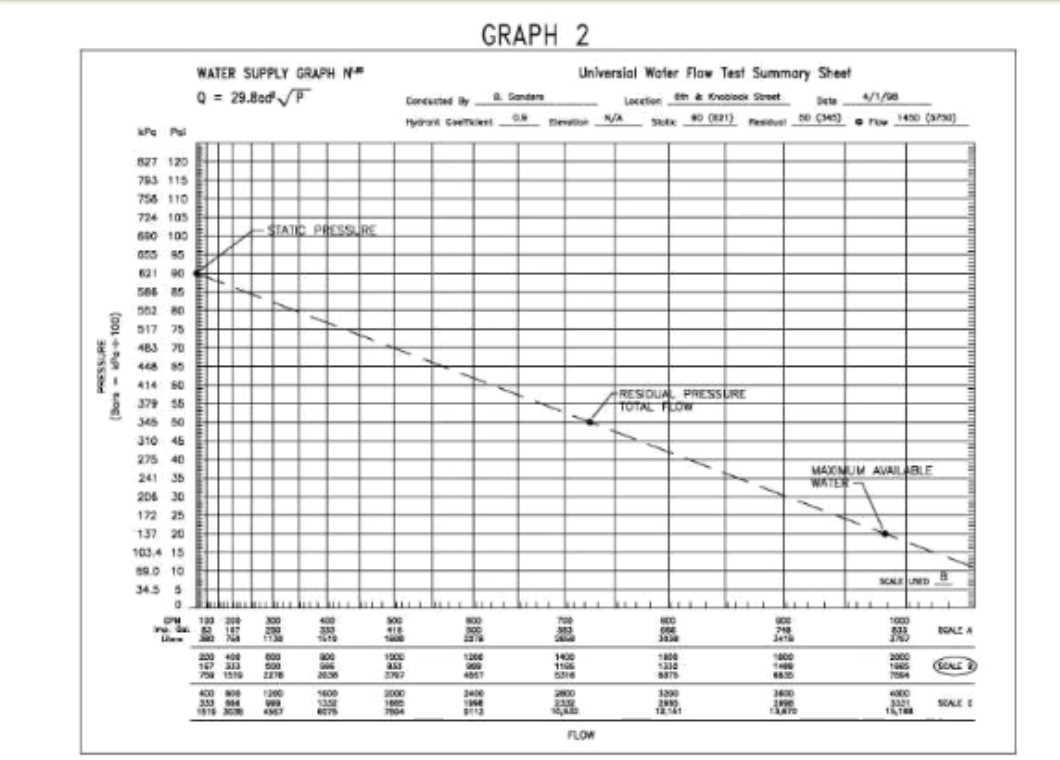

The graph labeled as "Water Supply Graph N°2" presents a standard water supply flow test summary, which indicates the relationship between pressure (psi or kPa) and flow (gpm or Lpm) for a specific system or hydrant.
How to interpret the graph:
Static Pressure:
This is the pressure measured when there is no water flowing, shown at the highest point on the left side of the graph (indicated as approximately 100 psi or 689 kPa in this case).
Residual Pressure:
This is the pressure available when water is flowing at a specific rate. The residual pressure line decreases as flow increases, indicating that the pressure reduces when water is drawn from the system.
Maximum Available Water:
The maximum available water is the point where the system can deliver the highest possible flow (gpm) before the residual pressure reaches a critical minimum level, indicating the system's limit.
Flow at Maximum Available Water:
In this specific graph, the point marked as Maximum Available Water is where the flow reaches 1,980 gpm (7,495 Lpm). This is derived by following the flow axis (horizontal axis) until it intersects with the Maximum Available Water curve on the graph.
Why the Correct Answer is C (1,980 gpm):
By following the plotted line for residual pressure, the graph shows that the maximum flow attainable from the system is 1,980 gpm (7,495 Lpm) before pressure drops too low. This value represents the system's maximum water supply capacity under normal operating conditions. This analysis is consistent with the flow rates displayed on the graph and matches the key markers labeled, which indicate the operational limits of the system.
NFPA Relevance:
In fire protection and water supply systems, understanding the maximum available water flow is essential for ensuring that sufficient water can be delivered in the event of a fire. This calculation is particularly relevant in the context of NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection) and NFPA 25 (Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems), as these standards require that water supply systems are capable of delivering adequate flow to suppression systems under expected fire conditions.
