Nokia 4A0-C01 Exam
Nokia NRS II Composite Exam (Page 20 )

Updated On: 19-Jan-2026
Page 20 of 170
PDF with 852 Questions

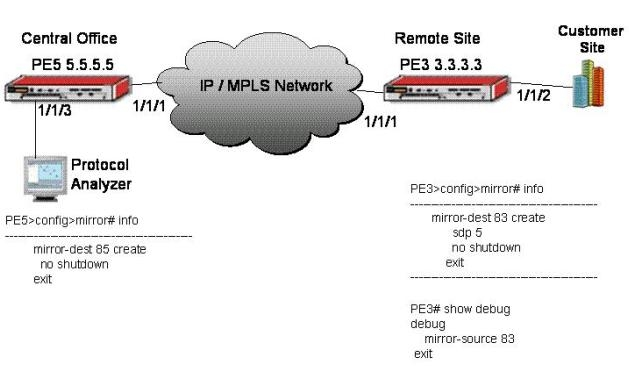

Click on the exhibit button below.

Assuming the customer only needs to monitor traffic from PE3 to the customer site, what three items are missing from PE3's configuration? (Assume that the IP/MPLS network
structure between the local and remote PEsis in place.)

  1. The mirror destination configuration on PE5 is missing the "remote-source" command,
  2. The mirror destination on PE3 needs a "remote-source" command.
  3. The mirror service IDs on the local and remote destinations must match.
  4. The mirror source on PE3 needs a "remote-source" command.
  5. The mirror source command on the remote PE3 needs a command that tells it to monitor port 1/1/2.

Answer(s): A,C,E



Which of the following about per-interface label space is TRUE?

  1. A single label is assigned to a FEC for all interfaces on the same router.
  2. The same label can be used to forward a packet on an LSR regardless of which egress port is used.
  3. It uses fewer label resources than a per-platform label space.
  4. A separate label is used for each interface that the FEC is advertised on.

Answer(s): D



Click on the exhibit.

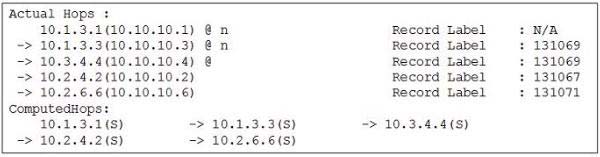

The partial command output from an Alcatel-Lucent 7750 SR is shown. Which of the following about this LSP path is TRUE?

  1. R4 (10.10.10.4) has established a link protection tunnel.
  2. R6 (10.10.10.6) has established a link protection tunnel.
  3. R2 (10.10.10.2) has established a node protection tunnel.
  4. R1 (10.10.10.1) has not established a node protection tunnel.

Answer(s): A



Which of the following about IS-IS Traffic Engineering on an Alcatel-Lucent 7750 SR is FALSE?

  1. Traffic engineering information is carried in the extended TLVs.
  2. Traffic engineering must be enabled on all IP/MPLS routers along the LSP path.
  3. Traffic engineering information is stored in the opaque database,
  4. Traffic engineering is required for constraint-based LSPs.

Answer(s): C



Which of the following statements are TRUE about configuring a SDP between an IES and a VPLS? (Choose 2)

  1. The SDP must be a mesh
  2. The SDP must be a spoke.
  3. Once the SDP is configured on both PE routers, both the services will be operationally up without further configuration changes.
  4. The Layer 2 MTUs must match between the IES and the VPLS
  5. The Layer 2 MTU must be 14 bytes smaller on the VPLS than it is on the IES.

Answer(s): B,D



Viewing page 20 of 170
Viewing questions 96 - 100 out of 852 questions
