QUESTION: 37

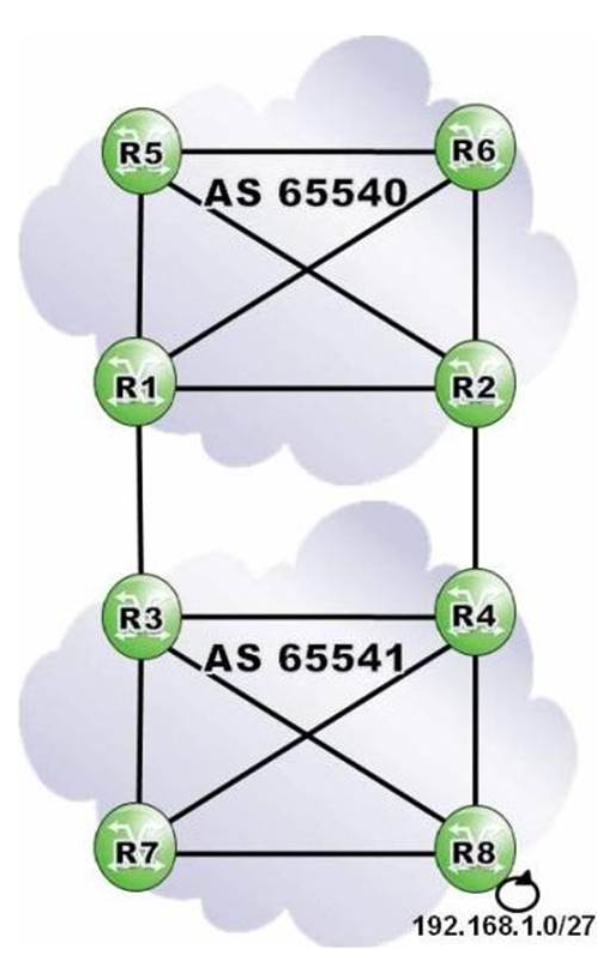

Click the exhibit.

Router R2 receives a route to 192.168.1.0/27 from router R4, and sets the local preference to 110. Router R1 receives a route to 192.168.1.0/27 from router R3, and sets the local preference to 80. Both ASs have a full iBGP mesh. What path does traffic destined to 192.168.1.0/27 take from router R1?

R1-R3-R8
R1-R2-R4-R8
R1-R3-R4-R8
R1-R2-R4-R3-R8

Answer(s): B

Reveal Solution Next Question

QUESTION: 38

Which of the following about SDPs is FALSE?

An SDP is not required for a local service.
A single SDP can carry different types of services.
An SDP can simultaneously support GRE and MPLS encapsulation.
An SDP can use the system IP address to indicate the far-end router.

Answer(s): C

Reveal Solution Next Question

QUESTION: 39

An Nokia 7750 SR receives a route from an eBGP peer with a MED value of 500. What

MED value is sent to iBGP peers?

100
The IGP cost
500
None

Answer(s): C

Reveal Solution Next Question

QUESTION: 40

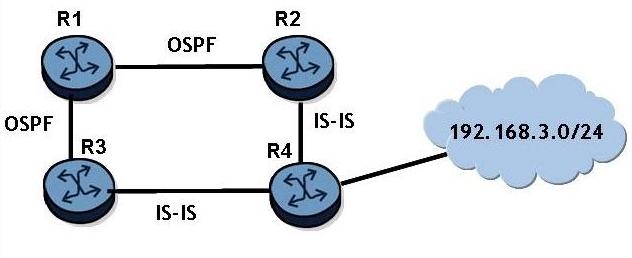

Click the exhibit button.

If router R2 redistributes the IS-IS route to 192.168.3.0/24 into OSPF, router R3 will receive two routes to 192.168.3.0/24. What will be the preference of these two routes? Assume that all IS-IS routers are L1/L2 capable and are in the same area. Choose two answers.

The OSPF internal preference
The IS-IS Level 1 internal preference
The IS-IS Level 2 internal preference
The OSPF external preference
The IS-IS Level 2 external preference
The IS-IS Level 1 external preference

Answer(s): B,D

Reveal Solution Next Question
