QUESTION: 109

What command will show the OSPF neighbors, and their status on the Nokia 7750 SR?

Show ospf neighbors
Show router ospf neighbors
Show router ospf adjacency
Show ospf adjacency

Answer(s): B

Click the exhibit.

Assume all router-IDs are properly configured, and IPv6 link-local addresses are used to establish all eBGP sessions. Given the following iBGP configuration on router A, what is the Next Hop for prefix 2001:DB8:A:401::1/128 on router B?

The IPv6 link-local address of the router D interface towards router
The IPv6 link-local address of the router A interface towards router D.
The IPv6 global address of router A.
The IPv6 global address of router

Answer(s): C

Reveal Solution Next Question

QUESTION: 111

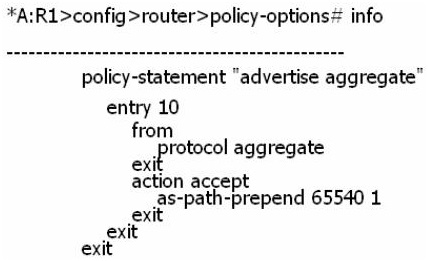

Router R1, in AS 65540, has the export policy shown below. It advertises an aggregate route to eBGP peer router R2 in 65550. What is the AS Path of the aggregate route received by router R2?
