Free OMG-Certified Systems Modeling Professional - Model Builder - Intermediate Exam Braindumps
OMG-Certified Systems Modeling Professional - Model Builder - Intermediate Questions 21–25 (page: 6)

Updated On: 10-Feb-2026
Page 6 of 19
PDF with 90 Questions

Choose the correct answer

Which statement is true when modeling generalization?

  1. Subclasses may only redefine existing features of a superclass.
  2. Subclasses may add, remove, and redefine existing features of a superclass
  3. Subclasses may add and remove, but not redefine, existing features of a superclass
  4. Subclasses may add and redefine, but not remove existing features of a superclass
  5. Subclasses may remove or redefine existing features, but not add features, to a superclass.

Answer(s): D



Choose the correct answer.

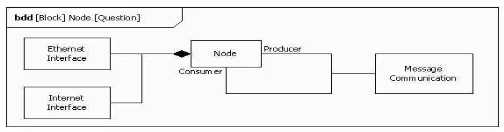

Given the following bdd:



Which Ibd corresponds?

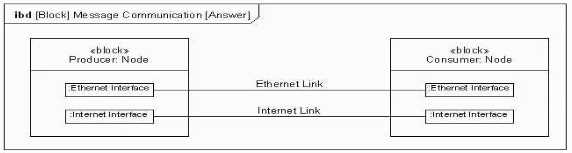

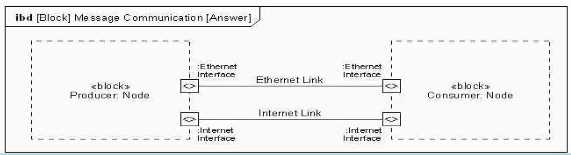

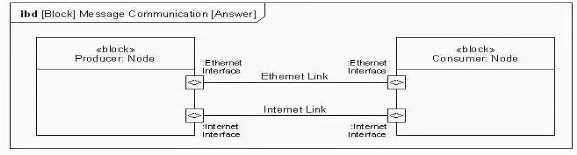

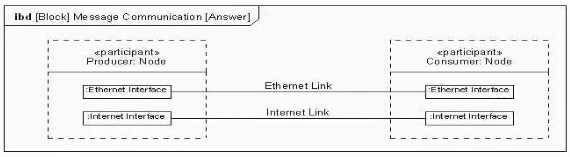

A)



B)



C)



D)

  1. Option A
  2. Option B
  3. Option C
  4. Option D

Answer(s): C



Choose the correct answer
Where may constraint blocks be defined?

  1. on any diagram
  2. only on parametric diagrams
  3. only on block definition diagrams
  4. only on block definition diagrams or package diagrams
  5. only on block definition diagrams or parametric diagrams
  6. only on block definition diagrams or internal block diagrams

Answer(s): D



Choose the correct answer
What is a flow port that is typed by a flow specification said to be?

  1. atomic
  2. nonatomic
  3. delegation
  4. behavioral
  5. conjugated
  6. directionless

Answer(s): B



Choose the correct answer

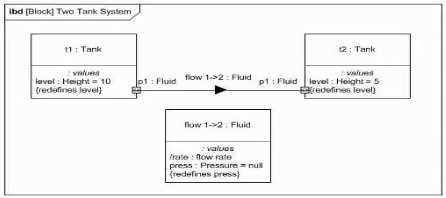

A system consists of two identical tanks each containing a different level of fluid. The tanks are connected together by a port at the bottom of each tank. This system is modeled m the following diagram:



Which statement is true?

  1. The block Fluid, which types item property flow 1 ->2. has a value property press : Pressure with a default value of null
  2. The value property /rate : flow rate is a derived property, which accommodates calculating its value based on oilier properties
  3. Parts t1 and t2 each use part instances to redefine the value of property level : Height
  4. The value of /rate for item property flow 1->2 is positive for flow from t1 to t2. and negative for How in the other direction
  5. Both port p1 on pan t1. and port p1 on t2. must have values defined for value properties /rate and press

Answer(s): B



  PDF
Viewing page 6 of 19
Viewing questions 26 - 30 out of 90 questions
