Which finding is shown in this image?
Answer(s): A

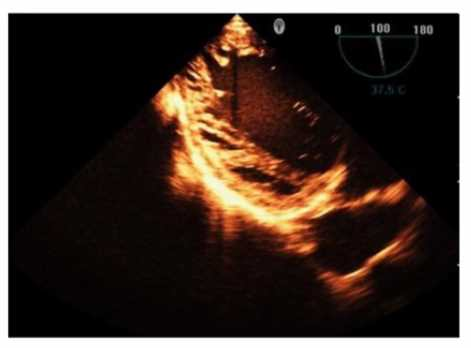

The echocardiographic image shows a mobile, highly echogenic, mesh-like structure within the right atrium consistent with the Chiari network. The Chiari network is an embryologic remnant of the right valve of the sinus venosus, appearing as a fenestrated, reticulated membrane that is usually thin and mobile, found near the orifice of the inferior vena cava or the coronary sinus.This structure is benign and often an incidental finding but can be confused with thrombus or atrial tumors. Unlike left atrial thrombus, which appears as a more solid, immobile mass often located in the left atrial appendage, the Chiari network is mobile and located in the right atrium. Cor triatriatum is a rare congenital membrane dividing the left atrium into two chambers and appears differently on echocardiography. Artifact refers to non-anatomic echoes which do not persist or move consistently.Recognition of Chiari network is important to avoid misdiagnosis, and its characteristics are well described in echocardiography literature such as the "Textbook of Clinical Echocardiography" and ASE16:Textbook of Clinical Echocardiography, 6ep.400-40212:ASE Guidelines imaging guidelines.on Cardiac Massesp.150-155
Which is the most likely abnormality represented in these images from a 48-year-old man with shortness of breath?
Answer(s): C
The echocardiographic images show prominent trabeculations and deep intertrabecular recesses communicating with the left ventricular cavity, best seen on contrast-enhanced images. This finding is characteristic of left ventricular noncompaction (LVNC), a cardiomyopathy resulting from arrested myocardial compaction during embryogenesis.LVNC is diagnosed by visualizing a two-layered myocardium with a thin compacted epicardial layer and a thicker noncompacted endocardial layer with deep trabecular recesses. The use of contrast echocardiography enhances endocardial border delineation and recess visualization, increasing diagnostic accuracy.Loeffler syndrome (hypereosinophilic cardiomyopathy) often shows endomyocardial fibrosis and restrictive physiology but not prominent trabeculations. Hypertrophic cardiomyopathy shows asymmetric septal hypertrophy without deep recesses. Ischemic cardiomyopathy shows wall motion abnormalities but not characteristic trabecular patterns.These diagnostic criteria and imaging features are well documented in the "Textbook of Clinical16:TextbookEchocardiography" and ASE guidelines on cardiomyopathies and use of contrast echo12:ASE Contrast of Clinical Echocardiography, 6eChapter on LV Noncompaction.Echocardiography Guidelinesp.180-190
The variables necessary to calculate mitral regurgitant (MR) effective orifice area by the proximal isovelocity surface area (PISA) equation include MR aliasing hemispheric radius, the aliasing velocity, and which other parameter?
The proximal isovelocity surface area (PISA) method estimates the effective regurgitant orifice area (EROA) in mitral regurgitation by measuring the radius of the hemispheric flow convergence region (aliasing radius) and incorporating the aliasing velocity and the peak velocity of the MR jet.The equation for EROA is:EROA = (2 × r² × Va) / VmaxWhere:r = radius of the PISA hemisphere (aliasing radius)Va = aliasing velocity (the velocity at which color aliasing occurs)Vmax = peak MR velocity obtained by continuous wave DopplerThis calculation does not involve the mitral annular diameter, time velocity integral of mitral annulus, or left ventricular outflow tract diameter.Thus, the third necessary parameter after aliasing radius and velocity is the maximum MR velocity measured by continuous wave Doppler, which allows determination of flow rate through the regurgitant orifice.This formula and its clinical application are well established in adult echocardiography literature and 12:ASE Valvular Regurgitation Guidelinesp.210-ASE valvular regurgitation guidelines16:Textbook of Clinical Echocardiography, 6eChapter on Mitral Regurgitation .Assessment
Which of the following are key features of an unrepaired tetralogy of Fallot?
Answer(s): D
Comprehensive and Detailed Explanation From Exact Extract:Tetralogy of Fallot (TOF) is a congenital heart defect characterized by four key anatomical abnormalities: an outlet (malalignment) ventricular septal defect (VSD), an overriding aorta that receives blood from both ventricles, right ventricular outflow tract (RVOT) obstruction (commonly infundibular stenosis), and resultant right ventricular hypertrophy. These defects cause cyanosis due to right-to-left shunting and impaired pulmonary blood flow.Option A describes Ebstein anomaly, characterized by a displaced tricuspid valve and atrialization of the right ventricle.Option B describes features more consistent with Shone complex or other left heart obstructive lesions.Option C describes atrioventricular septal defect (AVSD), seen in conditions like Down syndrome.In unrepaired TOF, echocardiography demonstrates the large malalignment VSD, overriding aorta, RVOT obstruction, and hypertrophied right ventricle. These are classic textbook findings described in adult and pediatric echocardiography literature, including "Textbook of Clinical Echocardiography"16:Textbook of Clinical(Chapter on Congenital Heart Disease) and ASE guidelines12:ASE Adult Congenital Guidelinesp.400-410.Echocardiography, 6ep.560-565
The 'P' wave of an electrocardiogram relates to which echocardiography event?
Comprehensive and Detailed Explanation From Exact Extract:The P wave on the ECG corresponds to atrial depolarization, which precedes atrial contraction (atrial systole). On echocardiography, atrial contraction can be observed as the atrial "kick," contributing to ventricular filling during late diastole.Ventricular contraction (QRS complex) and ventricular relaxation (T wave) correspond to other phases of the cardiac cycle. Atrial relaxation occurs during ventricular systole but is not represented by the P wave.This timing relationship is critical for correlating echocardiographic Doppler inflow patterns, such as the late diastolic A wave, with the ECG. These concepts are outlined in the foundational echocardiography references, including ASE guidelines and the "Textbook of Clinical16:Textbook of Clinical Echocardiography, 6ep.150-15512:ASE Echocardiography".Echocardiography Guidelinesp.50-55
