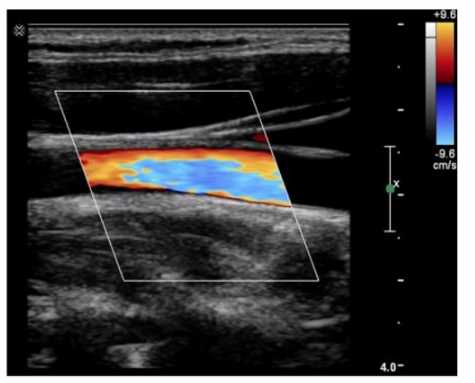

Which color Doppler artifact is visualized in this image?
Answer(s): B
The color Doppler image shows an artifact where high-velocity blood flow exceeds the Nyquist limit, resulting in color wrap-around or aliasing. This artifact is visualized as a mosaic pattern of colors that abruptly change, indicating that the velocity exceeds the color Doppler scale's maximum. Aliasing occurs when the sampling rate (pulse repetition frequency) is insufficient to accurately capture the high velocities, causing the display to cycle back to lower velocities.
ARDMS Sonography Principles & Instrumentation GuidelinesHagen-Ansert SL. Textbook of Diagnostic Ultrasonography. 8th ed. St. Louis, MO: Mosby; 2017.
Which type of display process rescans only the region of interest and improves resolution?
Write magnification, or pre-processing zoom, involves rescanning the region of interest (ROI) with more scan lines, thus acquiring new data for that specific area. This process increases the spatial resolution of the image in the magnified area because it gathers more detailed data by adjusting the scan parameters, resulting in improved image quality. This is different from read magnification (post- processing zoom), which simply enlarges the existing image data without increasing resolution.
ARDMS Sonography Principles & Instrumentation GuidelinesHedrick WR, Hykes DL, Starchman DE. Ultrasound Physics and Instrumentation. 4th ed. Philadelphia,PA: Elsevier Saunders; 2005.
If the speed of sound in a medium is less than the average speed of sound in soft tissue, where will the echo be placed on an image?
Answer(s): D
The placement of an echo on an ultrasound image is dependent on the assumption that the speed of sound in soft tissue is 1540 m/s. If the speed of sound in the medium is less than this assumed speed, the ultrasound system will interpret the returning echo as taking longer to return than it actually does. This causes the system to place the echo deeper in the image than its actual position. Therefore, the echo will be displayed "too deep" in the image.
ARDMS Sonography Principles & Instrumentation GuidelinesKremkau FW. Sonography Principles and Instruments. 9th ed. Philadelphia, PA: Elsevier; 2016.

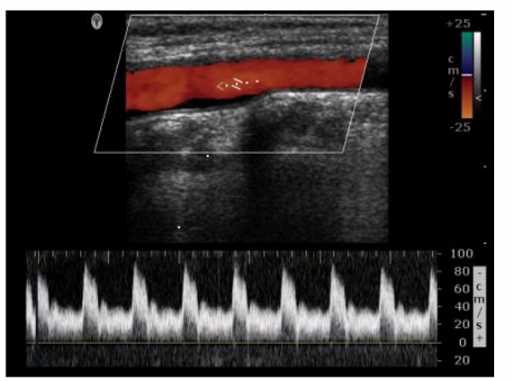

Which adjustment would reduce the noise in the Doppler waveform in this image?
Answer(s): A
Noise in the Doppler waveform can often be attributed to excessive gain settings. Decreasing the Doppler gain reduces the amplification of both the signal and the noise, thus providing a clearer and more accurate Doppler waveform. Excessive gain can cause speckling and clutter, which obscure the true Doppler signals. By reducing the gain, the noise level is minimized, resulting in a cleaner Doppler signal representation.
Which of these modes has the highest duty factor?
The duty factor is the fraction of time that the ultrasound system is actively transmitting a signal. Continuous wave (CW) Doppler has the highest duty factor because it continuously transmits and receives ultrasound waves. Unlike pulsed wave Doppler, which alternates between sending and receiving signals, CW Doppler does not have a listening period, resulting in a duty factor of nearly 100%. Therefore, CW Doppler has the highest duty factor among the modes listed.
