What is the benefit of using a wall filter?
Answer(s): D
A wall filter in Doppler ultrasound is designed to remove low-frequency signals that are often caused by tissue motion, vessel wall movement, or other forms of motion artifact. These low-frequency signals can clutter the Doppler spectrum, making it difficult to accurately interpret blood flow velocities. By filtering out these unwanted low-frequency signals, the wall filter helps to enhance the clarity of the Doppler signal, allowing for more accurate measurements of blood flow velocities.
American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

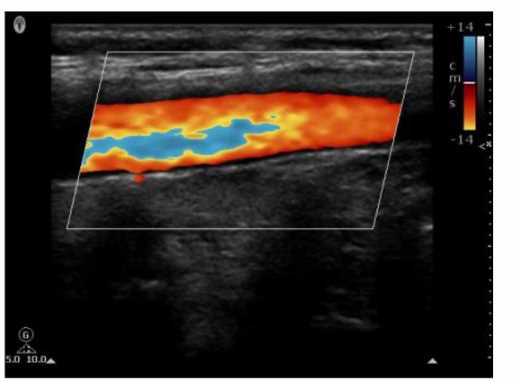

Which pulsed-wave Doppler adjustment would be appropriate to correct the aliasing seen in this image?
Answer(s): C
Aliasing in pulsed-wave Doppler occurs when the sampled Doppler frequency exceeds the Nyquist limit, which is half of the pulse repetition frequency (PRF). This results in an incorrect representation of the blood flow velocities, causing the waveform to wrap around and appear on the opposite side of the baseline. To correct aliasing, the PRF should be increased, which raises the Nyquist limit and allows for accurate measurement of higher velocities without aliasing. Increasing the PRF effectively reduces the likelihood of aliasing artifacts in the Doppler signal.
Penetration can be improved by decreasing which setting?
Answer(s): B
In ultrasound imaging, penetration refers to the ability of the ultrasound beam to travel deeper into the tissue. Lower frequency transducers produce sound waves with longer wavelengths, which are less attenuated by the tissues and therefore can penetrate deeper into the body. Conversely, higher frequency transducers produce sound waves with shorter wavelengths that provide better resolution but are more quickly attenuated, resulting in less penetration. Therefore, decreasing the frequency of the transducer improves penetration, allowing for better visualization of deeper structures.
Which system control adjusts amplification of signals as a function of depth?
Time Gain Compensation (TGC), also known as Depth Gain Compensation (DGC), is used to adjust the amplification of ultrasound signals based on their depth. As ultrasound waves travel deeper into the tissue, they become weaker due to attenuation. TGC compensates for this attenuation by progressively increasing the gain for deeper echoes, ensuring that structures at different depths appear with similar brightness on the ultrasound image. This function is critical for creating a uniform image and accurately visualizing deeper anatomical structures.

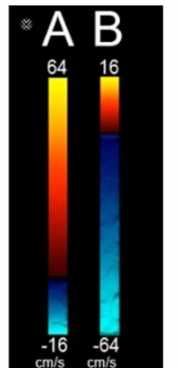

Which color control was adjusted in color bar A to produce color bar B?
The color bar on a Doppler ultrasound display indicates the range of velocities that the system can detect and display. In color bar A, the scale is set to a higher maximum velocity (64 cm/s), while in color bar B, the scale is set to a lower maximum velocity (16 cm/s). Adjusting the scale (or velocity range) changes the upper and lower limits of the velocities displayed, which affects the sensitivity of the Doppler system to detect flow velocities. Lowering the scale allows for better visualization of lower velocities, but it may also increase the likelihood of aliasing for higher velocities.
