Which factor improves axial resolution?
Answer(s): C
Axial resolution refers to the ability of an ultrasound system to distinguish between two structures that are close to each other along the path of the ultrasound beam. It is primarily determined by the spatial pulse length, which is the product of the wavelength and the number of cycles in a pulse. Shorter wavelengths result in shorter spatial pulse lengths, thereby improving axial resolution. This is because shorter wavelengths (which correspond to higher frequencies) allow for better differentiation between closely spaced structures along the beam's axis.
American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

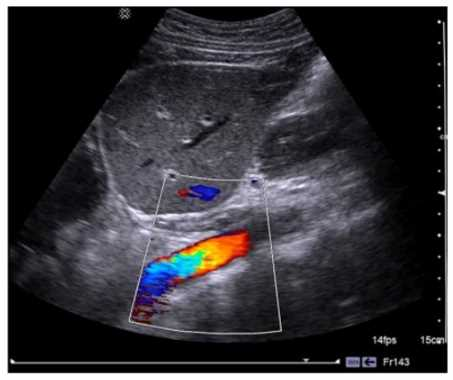

Which transducer was most likely used to create this image?
Answer(s): A
The image shown is typical of an abdominal ultrasound, which commonly utilizes a curvilinear transducer. Curvilinear transducers have a wider field of view at depth, making them ideal for imaging large structures within the abdomen. These transducers emit a curved beam, allowing for better penetration and a broader field of view, which is necessary for comprehensive abdominal examinations. The curvature of the image, the wide field of view, and the depth of penetration all suggest the use of a curvilinear transducer.
The ability to resolve two separate reflectors perpendicular to the path of the beam describes which type of resolution?
Lateral resolution describes the ability of an ultrasound system to distinguish between two structures that are side by side (perpendicular to the path of the ultrasound beam). This type of resolution depends on the beam width; narrower beams provide better lateral resolution. As the ultrasound beam travels deeper into the tissue, it generally widens, which can reduce lateral resolution. Techniques such as focusing the beam can help improve lateral resolution at specific depths by narrowing the beam width.
Which factor influences color flow imaging frame rate?
The frame rate in color flow imaging is influenced by several factors, one of the most significant being line density. Line density refers to the number of ultrasound lines used to create an image. Increasing line density improves spatial resolution but requires more time to acquire each frame, thereby reducing the frame rate. Other factors such as filter selection, dynamic range, and variance map selection can affect the quality of the color flow image, but they do not have as direct an impact on frame rate as line density does.
ARDMS Sonography Principles and Instrumentation, Chapter on Color Doppler Imaging.
What produces increased attenuation within soft tissue?
Answer(s): B
Attenuation refers to the reduction in the intensity of the ultrasound beam as it travels through tissue. Higher frequency ultrasound beams experience more attenuation because they are absorbed and scattered more than lower frequency beams. This is due to the fact that higher frequency waves have shorter wavelengths and interact more with the small particles in tissues, causing greater energy loss.
ARDMS Sonography Principles and Instrumentation, Chapter on Ultrasound Physics and Instrumentation.
