QUESTION: 29

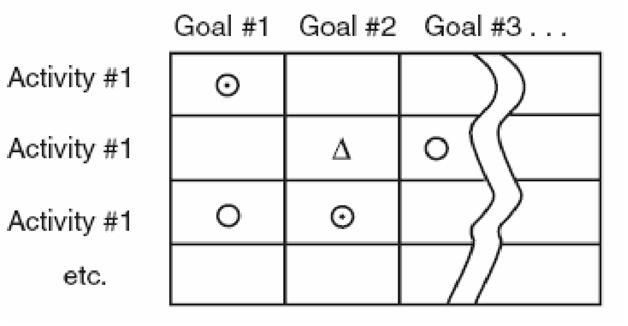

A management team lists nine goals across the top of a rectangle and 15 activity initiatives along the left hand side of the rectangle. If one of the activities strongly supports one of the goals a circle is placed in the box where that activity’s row intersects the goal’s column. If the activity’s support is very strong a “bulls eye” is placed in the box and if the support is weak a triangle is used. This best describes which problem solving tool?

Affinity diagram
Inter-relationship digraph
Tree diagram
Process decision program chart
Matrix diagram
Prioritization matrix
Activity network diagram

Answer(s): E

Reveal Solution Next Question

QUESTION: 30

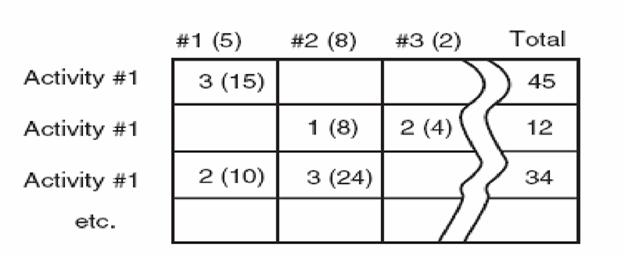

The management team in the above problem assigns each goal a numerical value designating its importance. The “bulls eyes,” circles and triangles are replaced by the values 3, 2 and 1 respectively. Entries are made in each box by multiplying the 3, 2 or 1 by the goal value. The importance of each activity is calculated by adding the entries in its row.
