QUESTION: 171

What is the path for traffic sent from one user workstation to another workstation on a separate switch in a three-tier architecture model?

access “" core “" access
access “" distribution “" distribution “" access
access “" core “" distribution “" access
access “" distribution “" core “" distribution “" access

Answer(s): D

Show Answer Next Question

QUESTION: 172

What is the difference between IPv6 unicast and anycast addressing?

An individual IPv6 unicast address is supported on a single interface on one node, but an IPv6 anycast address is assigned to a group of interfaces on multiple nodes.
IPv6 anycast nodes must be explicitly configured to recognize the anycast address, but IPv6 unicast nodes require no special configuration.
IPv6 unicast nodes must be explicitly configured to recognize the unicast address, but IPv6 anycast nodes require no special configuration.
Unlike an IPv6 anycast address, an IPv6 unicast address is assigned to a group of interfaces on multiple nodes.

Answer(s): A

Show Answer Next Question

QUESTION: 173

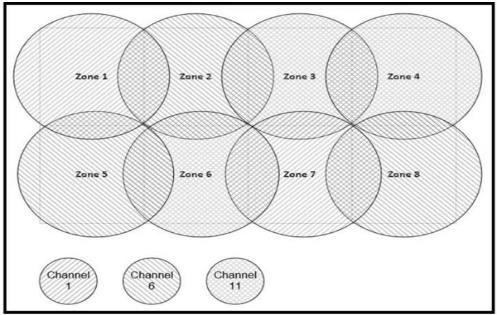

Refer to the exhibit. Between which zones do wireless users expect to experience intermittent connectivity?

between zones 1 and 2
between zones 2 and 5
between zones 3 and 4
between zones 3 and 6

Answer(s): C

Show Answer Next Question

QUESTION: 174

Which WAN topology provides a combination of simplicity quality, and availability?

partial mesh
full mesh
point-to-point
hub-and-spoke

Answer(s): C

Show Answer Next Question

QUESTION: 175

DRAG DROP (Drag and Drop is not supported)

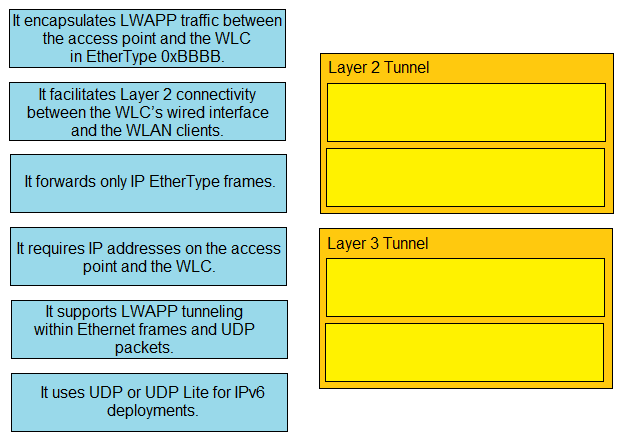

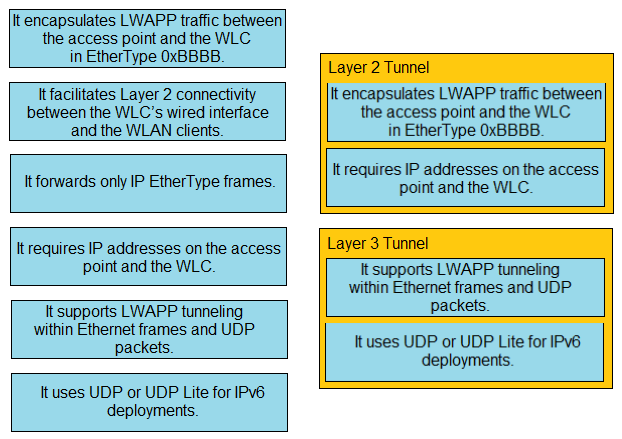

Drag and drop the statements about wireless architectures from the left onto the architectures on the right.
Select and Place:
