Cisco 300-410 Exam Questions
Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) (Page 23 )

DRAG DROP (Drag and Drop is not supported)

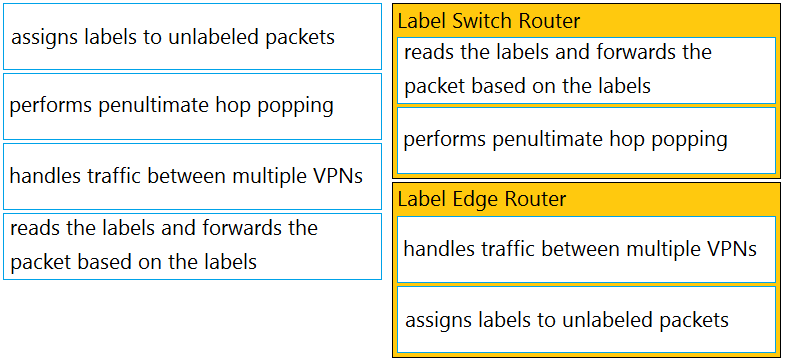

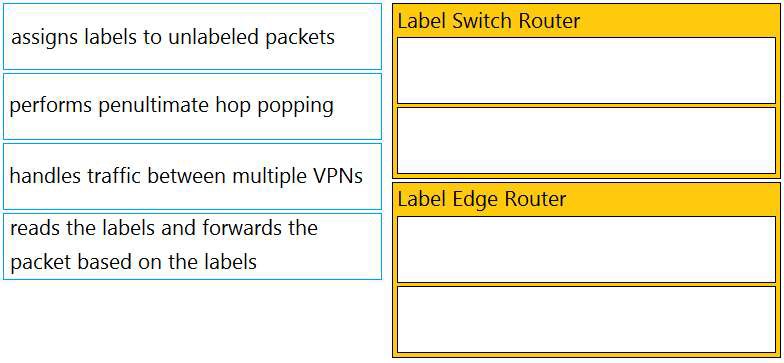

Drag and drop the operations from the left onto the locations where the operations are performed on the right.

Select and Place:

Which protocol does MPLS use to support traffic engineering?

An engineer configured a company's multiple area OSPF Head Office router and Site A Cisco routers with VRF lite. Each site router is connected to a PE router of an MPLS backbone:

Head Office & Site A
ipcef
ipvrfabc
rd 101:101
!
interface FastEthernet0/0
ipvrf forwarding abc
ip address 172.16.16.X 255.255.255.252
!
routerospf 1 vrfabc
log-adjacency-changes
network 172.16.16.0 0.0.0.255 area 1

After finishing both site router configurations, none of the LSA 3, 4, 5, and 7 are installed at Site A router. Which configuration resolves this issue?

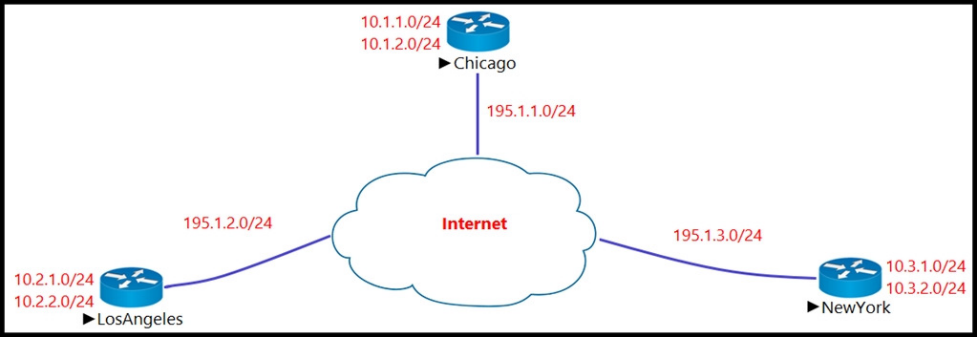

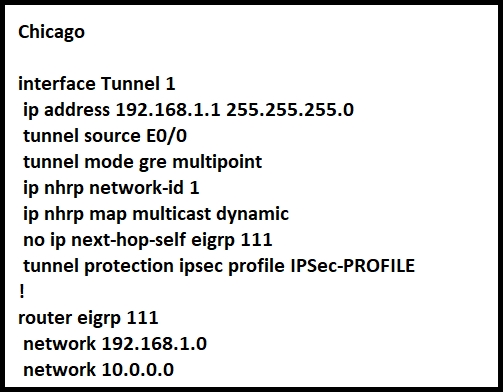

Refer to the exhibit. The Los Angeles and New York routers are receiving routers from Chicago but not from each other.




Which configuration fixes the issue?

DRAG DROP (Drag and Drop is not supported)

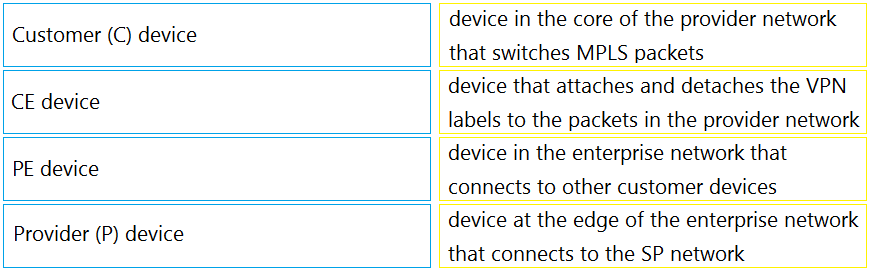

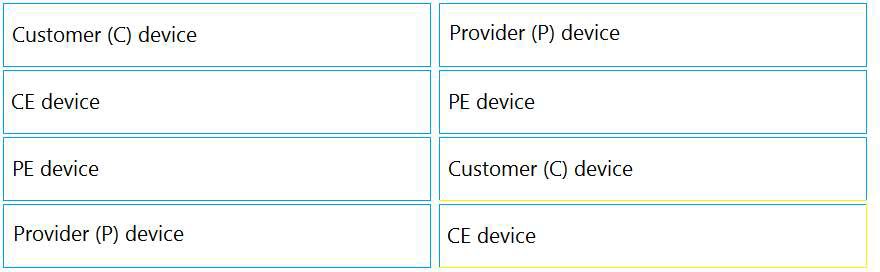

Drag and drop the MPLS VPN device types from the left onto the definitions on the right.
Select and Place:
