Free Cisco® 300-410 Exam Braindumps (page: 30)

Page 30 of 156
PDF with 620 Questions

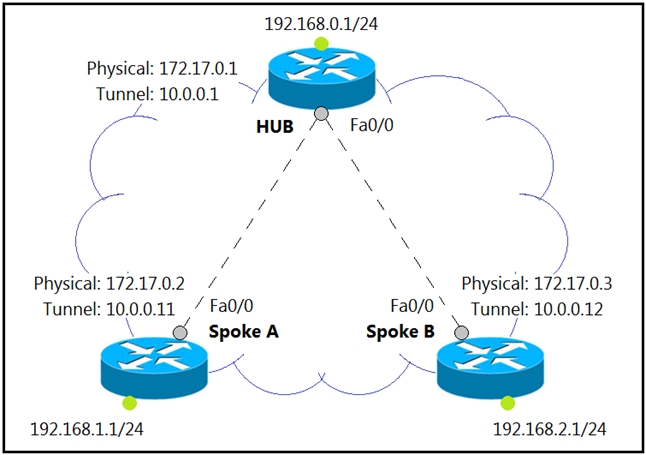

Refer to the exhibit. Which interface configuration must be configured on the HUB router to enable MVPN with mGRE mode?


  1. interface Tunnel0
    descriptionmGRE - DMVPN Tunnel
    ip address 10.1.0.1 255.255.255.0
    ipnhrp map multicast dynamic
    ipnhrp network-id 1
    tunnel source 172.17.0.1
    ipnhrp map 10.0.0.11 172.17.0.2
    ipnhrp map 10.0.0.12 172.17.0.3
    tunnel mode gre

  2. interface Tunnel0
    descriptionmGRE - DMVPN Tunnel
    ip address 10.0.0.1 255.255.255.0
    ipnhrp map multicast dynamic
    ipnhrp network-id 1
    tunnel source 10.0.0.1
    tunnel mode gre multipoint

  3. interface Tunnel0
    descriptionmGRE - DMVPN Tunnel
    ip address 10.0.0.1 255.255.255.0
    ipnhrp network-id 1
    tunnel source 172.17.0.1
    tunnel mode gre multipoint

  4. interface Tunnel0
    descriptionmGRE - DMVPN Tunnel
    ip address 10.0.0.1 255.255.255.0
    ipnhrp map multicast dynamic
    ipnhrp network-id 1
    tunnel source 10.0.0.1
    tunnel destination 172.17.0.2
    tunnel mode gre multipoint

Answer(s): C



How are MPLS Layer 3 VPN services deployed?

  1. The RD and RT values must match under the VRF.
  2. The import and export RT values under a VRF must always be the same.
  3. The label switch path must be available between the local and remote PE routers.
  4. The RD and RT values under a VRF must match on the remote PE router.

Answer(s): C



Which IGPs are supported by the MPLS LDP autoconfiguration feature?

  1. ISIS and RIPv2
  2. RIPv2 and OSPF
  3. OSPF and EIGRP
  4. OSPF and ISIS

Answer(s): D


Reference:

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_ldp/configuration/15-s/mp-ldp-15-s-book/mp-ldp-autoconfig.pdf

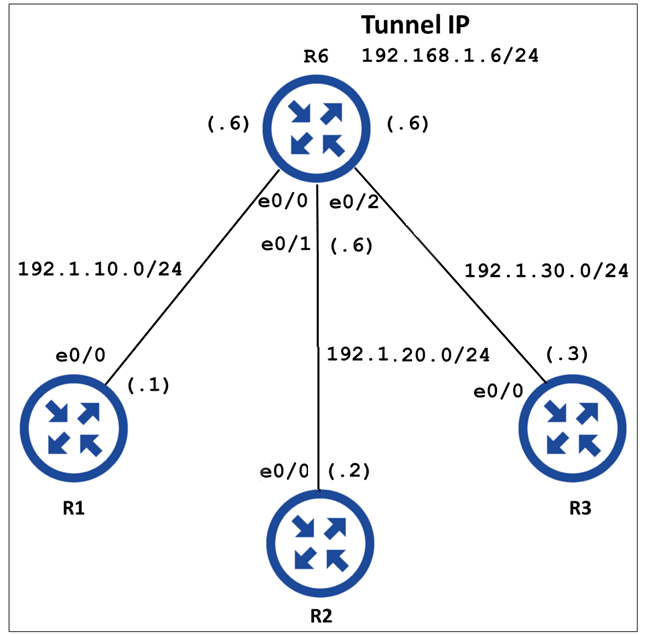

Refer to the exhibit.


An engineer must establish multipoint GRE tunnels between hub router R6 and branch routers R1, R2, and R3.

Which configuration accomplishes this task on R1?


  1. interface Tunnel 1
    ip address 192.168.1.1 255.255.255.0
    tunnel source e0/0
    tunnel mode gre multipoint
    ipnhrpnhs 192.168.1.6
    ipnhrp map 192.168.1.6 192.1.10.1
    ipnhrp map 192.168.1.2 192.1.20.2
    ipnhrp map 192.168.1.3 192.1.30.3

  2. interface Tunnel 1
    ip address 192.168.1.1 255.255.255.0
    tunnel source e0/1
    tunnel mode gre multipoint
    ipnhrpnhs 192.168.1.6
    ipnhrp map 192. 168.1.6 192.1.10.6

  3. interface Tunnel 1
    ip address 192. 168.1.1 255.255.255.0
    tunnel source e0/0
    tunnel mode gre multipoint
    ipnhrp network-id 1
    ipnhrpnhs 192.168.1.6
    ipnhrp map 192.168.1.6 192.1.10.6

  4. interface Tunnel 1
    ip address 192.168.1.1 255. 255.255.0
    tunnel source e0/1
    tunnel mode gre multipoint
    ipnhrp network-id 1
    ipnhrpnhs 192.168.1.6
    ipnhrp map 192.168.1.6 192.1.10.1
    ipnhrp map 192.168.1.2 192.1.20.2
    ipnhrp map 192.168.1.3 192.1.30.3

Answer(s): C
