Free 300-410 Exam Braindumps
Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) Questions 41–48 (page: 7)

Updated On: 9-Jul-2026
Page 7 of 81
PDF with 640 Questions

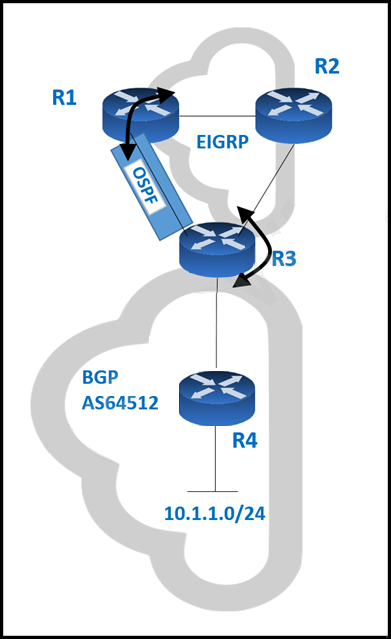

Refer to the exhibit. Routing protocols are mutually redistributed on R3 and R1. Users report intermittent connectivity to services hosted on the 10.1.1.0/24 prefix. Significant routing update changes are noticed on R3 when the show ip route profile command is run.


How must the services be stabilized?

  1. The routing loop must be fixed by reducing the admin distance of OSPF from 110 to 80 on R3
  2. The routing loop must be fixed by reducing the admin distance of iBGP from 200 to 100 on R3
  3. The issue with using BGP must be resolved by using another protocol and redistributing it into EIGRP on R3
  4. The issue with using iBGP must be fixed by running eBGP between R3 and R4

Answer(s): B



When determining if a system is capable of support, what is the minimum time spacing required for a BFD control packet to receive once a control packet is arrived?

  1. Desired Min TX Interval
  2. Detect Mult
  3. Required Min RX Interval
  4. Required Min Echo RX Interval

Answer(s): C



An engineer is configuring a network and needs packets to be forwarded to an interface for any destination address that is not in the routing table.

What should be configured to accomplish this task?

  1. set ip next-hop
  2. set ip default next-hop
  3. set ip next-hop recursive
  4. set ip next-hop verify-availability

Answer(s): B



What is an advantage of using BFD?

  1. It detects local link failure at layer 1 and updates the routing table.
  2. It detects local link failure at layer 3 and updates the routing protocols.
  3. It has sub-second failure detection for layer 1 and layer 3 problems.
  4. It has sub-second failure detection for layer 1 and layer 2 problems.

Answer(s): D



An engineer needs dynamic routing between two routers and is unable to establish OSPF adjacency. The output of the show ipospf neighbor command shows that the neighbor state is EXSTART/EXCHANGE.

Which action should be taken to resolve this issue?

  1. match the passwords
  2. match the hello timers
  3. match the MTUs
  4. match the network types

Answer(s): C


Reference:

https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13684-12.html

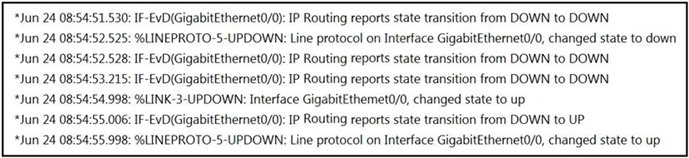

Refer to the exhibit. R1 is connected with R2 via GigabitEthernet0/0, and R2 cannot ping R1.


What action will fix the issue?

  1. Fix route dampening configured on the router.
  2. Replace the SFP module because it is not supported.
  3. Fix IP Event Dampening configured on the interface.
  4. Correct the IP SLA probe that failed.

Answer(s): C

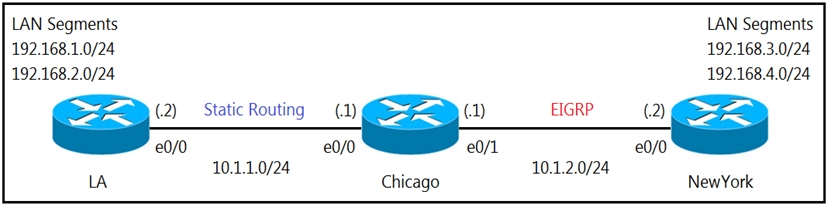

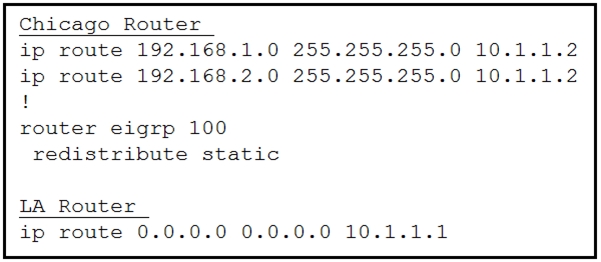

Refer to the exhibits. A user on the 192.168.1.0/24 network can successfully ping 192.168.3.1, but the administrator cannot ping 192.168.3.1 from the LA router.



Which set of configurations fixes the issue?





Answer(s): D

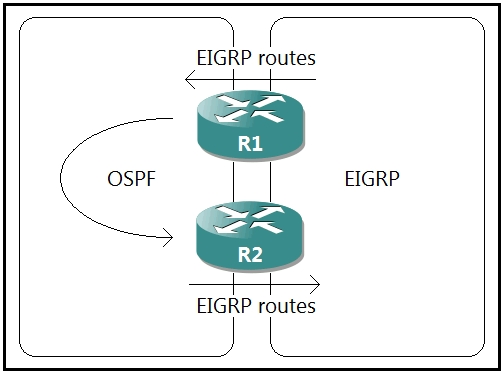

Refer to the exhibit.


A network administrator configured mutual redistribution on R1 and R2 routers, which caused instability in the network.

Which action resolves the issue?

  1. Set a tag in the route map when redistributing EIGRP into OSPF on R1, and match the same tag on R2 to deny when redistributing OSPF into EIGRP.
  2. Set a tag in the route map when redistributing EIGRP into OSPF on R1, and match the same tag on R2 to allow when redistributing OSPF into EIGRP.
  3. Apply a prefix list of EIGRP network routes in OSPF domain on R1 to propagate back into the EIGRP routing domain.
  4. Advertise summary routes of EIGRP to OSPF and deny specific EIGRP routes when redistributing into OSPF.

Answer(s): A



  PDF
Viewing page 7 of 81
Viewing questions 31 - 35 out of 640 questions
