Free 300-410 Exam Braindumps
Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) Questions 25–32 (page: 5)

Updated On: 9-Jul-2026
Page 5 of 81
PDF with 640 Questions

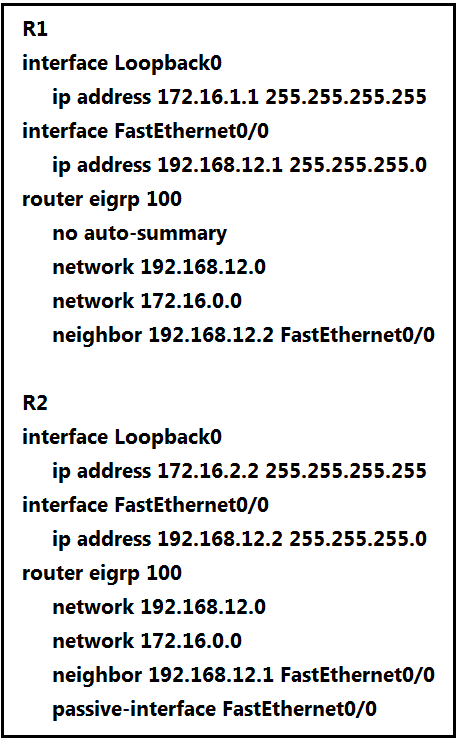

Refer to the exhibit. R1 and R2 cannot establish an EIGRP adjacency. Which action establishes EIGRP adjacency?

  1. Remove the current autonomous system number on one of the routers and change to a different value.
  2. Add the passive-interface command to the R1 configuration so that it matches the R2 configuration.
  3. Remove the passive-interface command from the R2 configuration so that it matches the R1 configuration.
  4. Add the no auto-summary command to the R2 configuration so that it matches the R1 configuration.

Answer(s): C



An engineer configured policy-based routing for a destination IP address that does not exist in the routing table.

How is the packet treated through the policy for configuring the set ip default next-hop command?

  1. Packets are not forwarded to the specific next hop.
  2. Packets are forwarded based on the routing table.
  3. Packets are forwarded based on a static route.
  4. Packets are forwarded to the specific next hop.

Answer(s): D



Refer to the exhibit. The administrator configured route advertisement to a remote low resources router to use only the default route to reach any network but failed.


Which action resolves this issue?

  1. Remove the prefix keyword from the distribute-list command.
  2. Remove the line with the sequence number 10 from the prefix list.
  3. Change the direction of the distribute-list command from out to in.
  4. Remove the line with the sequence number 5 from the prefix list.

Answer(s): D

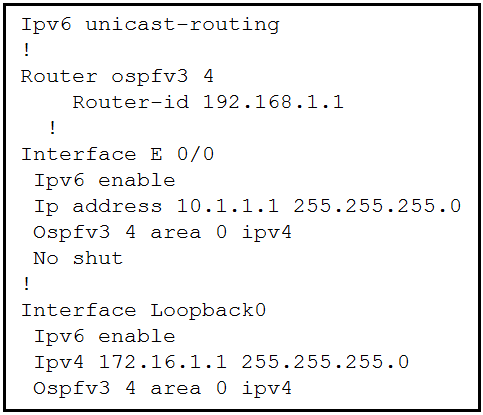

Refer to the exhibit. The network administrator configured the branch router for IPv6 on the E 0/0 interface. The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up.


Which action fixes the problem on the branch router to bring the IPv6 neighbors up?

  1. Disable OSPF for IPv4 using the no ospfv3 4 area 0 ipv4 command under the E 0/0 interface.
  2. Enable the IPv4 address family under the router ospfv3 4 process by using the address-family ipv4 unicast command.
  3. Disable IPv6 on the E 0/0 interface using the no ipv6 enable command.
  4. Enable the IPv4 address family under the E 0/0 interface by using the address-family ipv4 unicast command.

Answer(s): B

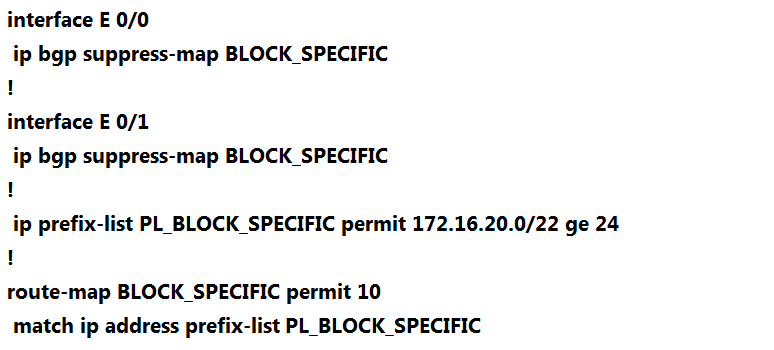

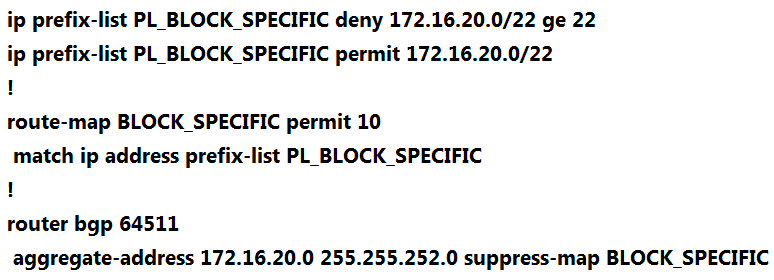

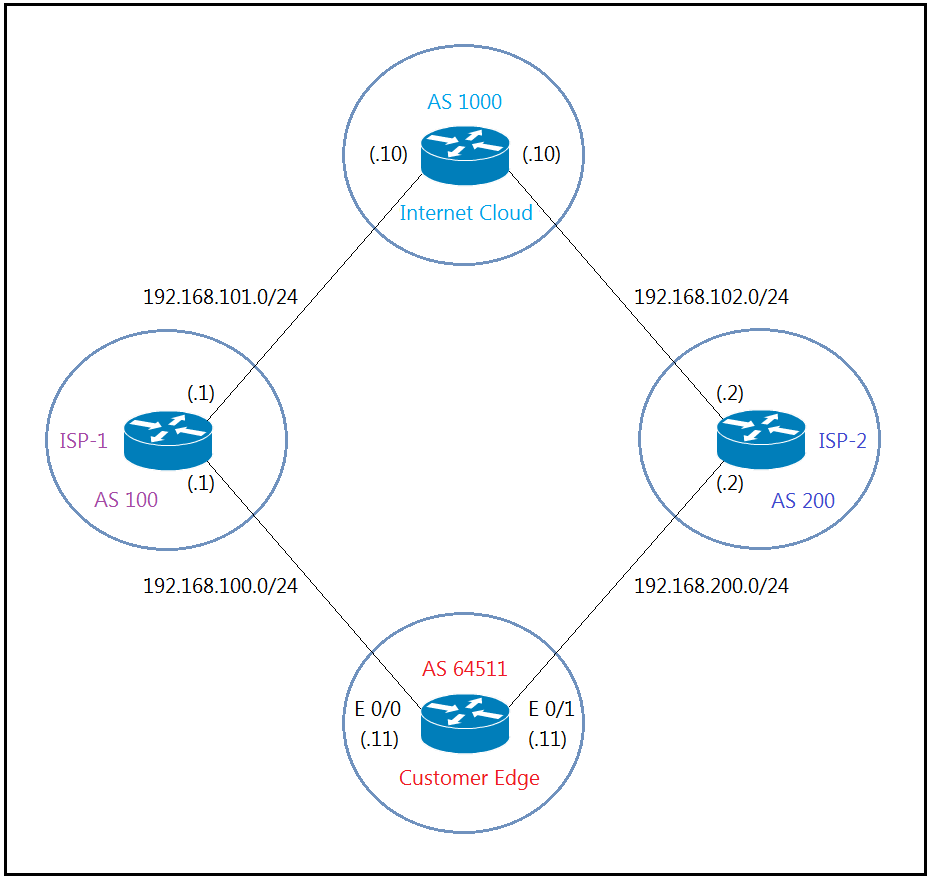

Refer to the exhibit. The network administrator has configured the Customer Edge router (AS 64511) to send only summarized routes toward ISP-1 (AS 100) and ISP-2 (AS 200).



After this configuration, ISP-1 and ISP-2 continue to receive the specific routes and the summary route. Which configuration resolves the issue?





Answer(s): A

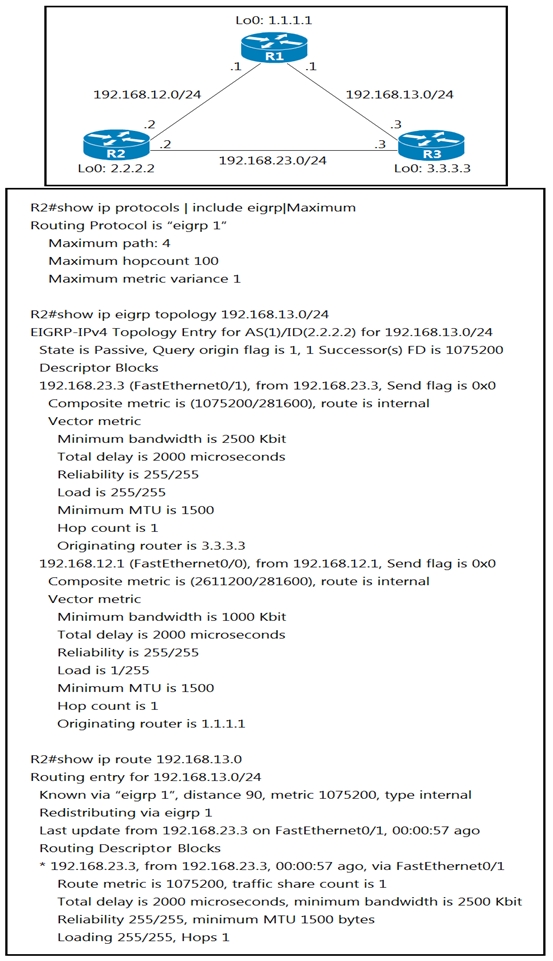

Refer to the exhibit. R2 has two paths to reach 192.168.13.0/24, but traffic is sent only through R3. Which action allows traffic to use both paths?

  1. Configure the variance 4 command under the EIGRP process on R2.
  2. Configure the bandwidth 2000 command under interface FastEthernet0/0 on R2.
  3. Configure the delay 1 command under interface FastEthernet0/0 on R2.
  4. Configure the variance 2 command under the EIGRP process on R2.

Answer(s): A

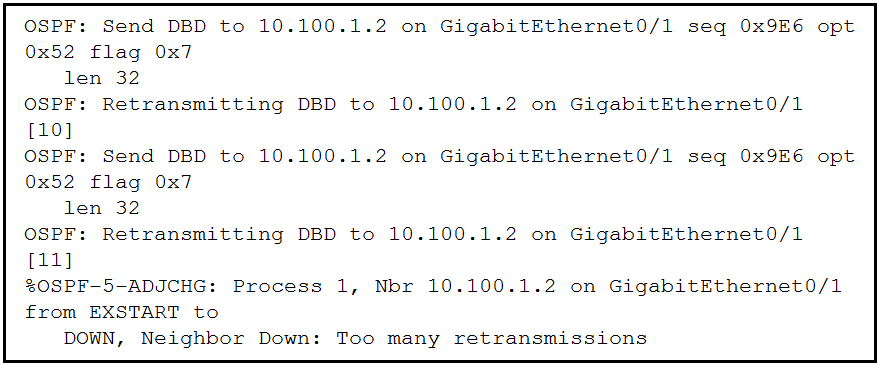

Refer to the exhibit. The OSPF neighbor relationship is not coming up. What must be configured to restore OSPF neighbor adjacency?

  1. matching hello timers
  2. OSPF on the remote router
  3. use router ID
  4. matching mtu values

Answer(s): D



An engineer configured two routers connected to two different service providers using BGP with default attributes. One of the links is presenting high delay, which causes slowness in the network.

Which BGP attribute must the engineer configure to avoid using the high-delay ISP link if the second ISP link is up?

  1. AS-PATH
  2. WEIGHT
  3. MED
  4. LOCAL_PREF

Answer(s): D



  PDF
Viewing page 5 of 81
Viewing questions 21 - 25 out of 640 questions
