QUESTION: 137

A local router shows an EBGP neighbor in the Active state.
Which statement is true about the local router?

The local router is attempting to open a TCP session with the neighboring router.
The local router is receiving prefixes from the neighboring router and adding them in RIB-IN.
The local router has active prefixes in the forwarding table from the neighboring router.
The local router has BGP passive mode configured for the neighboring router.

Answer(s): A

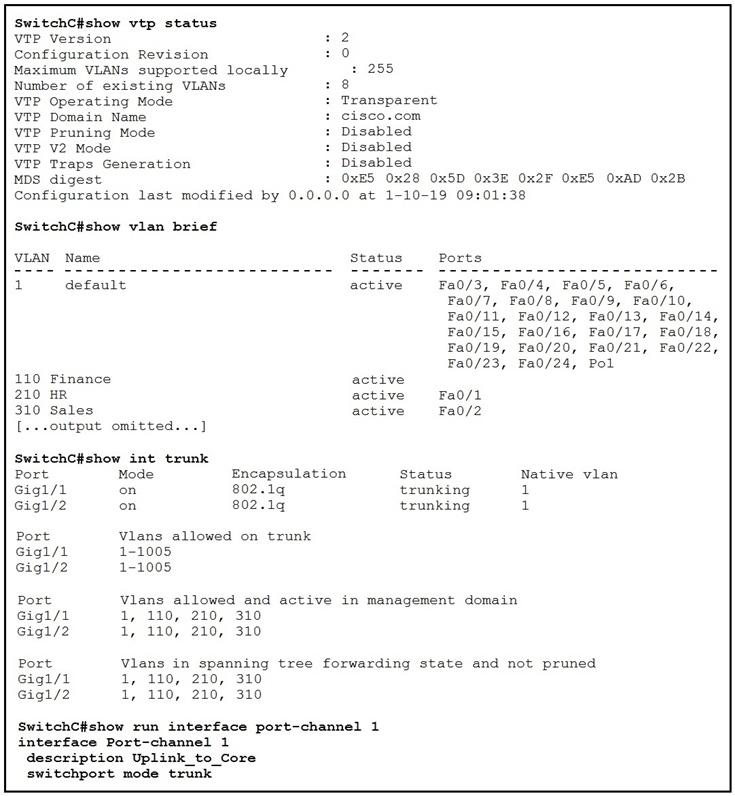

Refer to the exhibit.
SwitchC connects HR and Sales to the Core switch. However, business needs require that no traffic from the Finance VLAN traverse this switch.
Which command meets this requirement?

SwitchC(config)#vtp pruning vlan 110
SwitchC(config)#vtp pruning
SwitchC(config)#interface port-channel 1 SwitchC(config-if)#switchport trunk allowed vlan add 210,310
SwitchC(config)#interface port-channel 1 SwitchC(config-if)#switchport trunk allowed vlan remove 110

Answer(s): D

Show Answer Next Question

QUESTION: 139

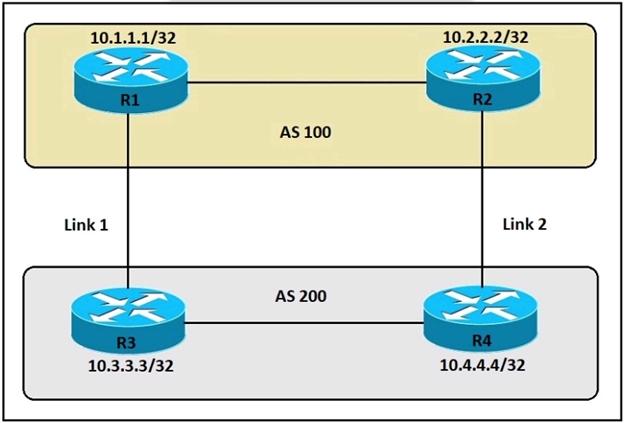

Refer to the exhibit.
An engineer must ensure that all traffic leaving AS 200 will choose Link 2 as the exit point.
Assuming that all BGP neighbor relationships have been formed and that the attributes have not been changed on any of the routers, which configuration accomplishes this task?

R4(config-router)bgp default local-preference 200
R3(config-router)bgp default local-preference 200
R4(config-router)neighbor 10.2.2.2 weight 200
R3(config-router)neighbor 10.1.1.1 weight 200

Answer(s): A

Reference:

https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13753-25.html#:~:text=Border%20Gateway%20Protocol%20(BGP)%
20routers,to%20use%20for%20traffic%20forwarding.
