Free Cisco® 350-401 Exam Braindumps (page: 52)

Page 52 of 268
PDF with 1067 Questions

DRAG DROP (Drag and Drop is not supported)

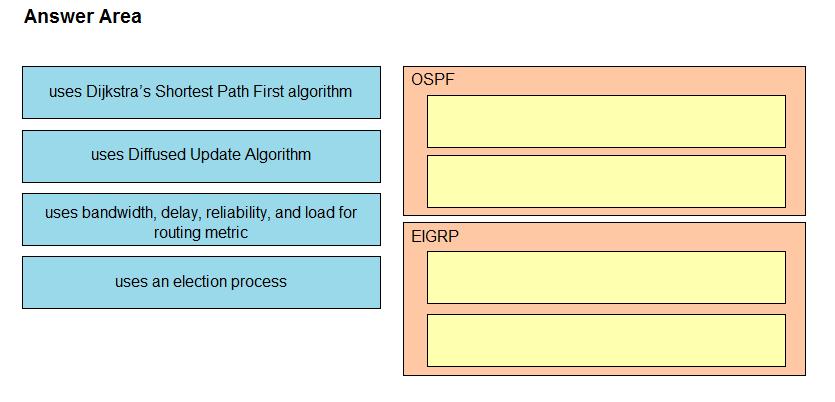

Drag and drop the characteristics from the left onto the protocols they apply to on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Refer to the exhibit.

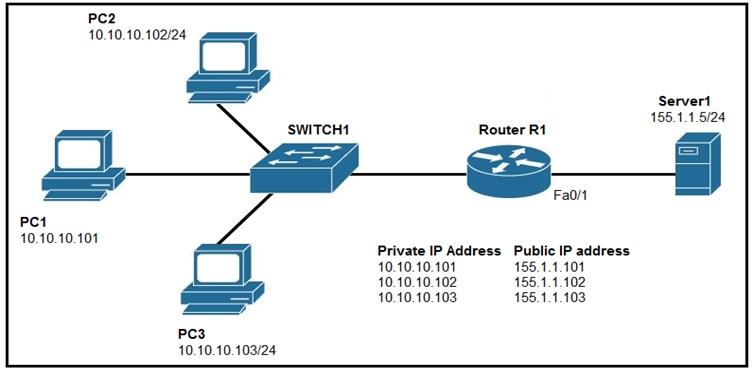

Which set of commands on router R1 allow deterministic translation of private hosts PC1, PC2, and PC3 to addresses in the public space?

  1. RouterR1(config)#int f0/0 RouterR1(config)#ip nat inside RouterR1(config)#exit RouterR1(config)#int f0/1 RouterR1(config)#ip nat outside RouterR1(config)#exit RouterR1(config)#access-list 1 10.10.10.0 0.0.0.255 RouterR1(config)#ip nat inside source list 1 interface f0/1 overload
  2. RouterR1(config)#int f0/0 RouterR1(config)#ip nat inside RouterR1(config)#exit RouterR1(config)#int f0/1 RouterR1(config)#ip nat outside RouterR1(config)#exit RouterR1(config)#access-list 1 10.10.10.0 0.0.0.255 RouterR1(config)#ip nat pool POOL 155.1.1.101 155.1.1.103 netmask 255.255.255.0 RouterR1(config)#ip nat inside source list 1 pool POOL
  3. RouterR1(config)#int f0/0 RouterR1(config)#ip nat inside RouterR1(config)#exit RouterR1(config)#int f0/1 RouterR1(config)#ip nat outside RouterR1(config)#exit RouterR1(config)#ip nat inside source static 10.10.10.101 155.1.1.101 RouterR1(config)#ip nat inside source static 10.10.10.102 155.1.1.102 RouterR1(config)#ip nat inside source static 10.10.10.103 155.1.1.103
  4. RouterR1(config)#int f0/0 RouterR1(config)#ip nat outside RouterR1(config)#exit RouterR1(config)#int f0/1 RouterR1(config)#ip nat inside RouterR1(config)#exit RouterR1(config)#ip nat inside source static 10.10.10.101 155.1.1.101 RouterR1(config)#ip nat inside source static 10.10.10.102 155.1.1.102 RouterR1(config)#ip nat inside source static 10.10.10.103 155.1.1.103

Answer(s): C

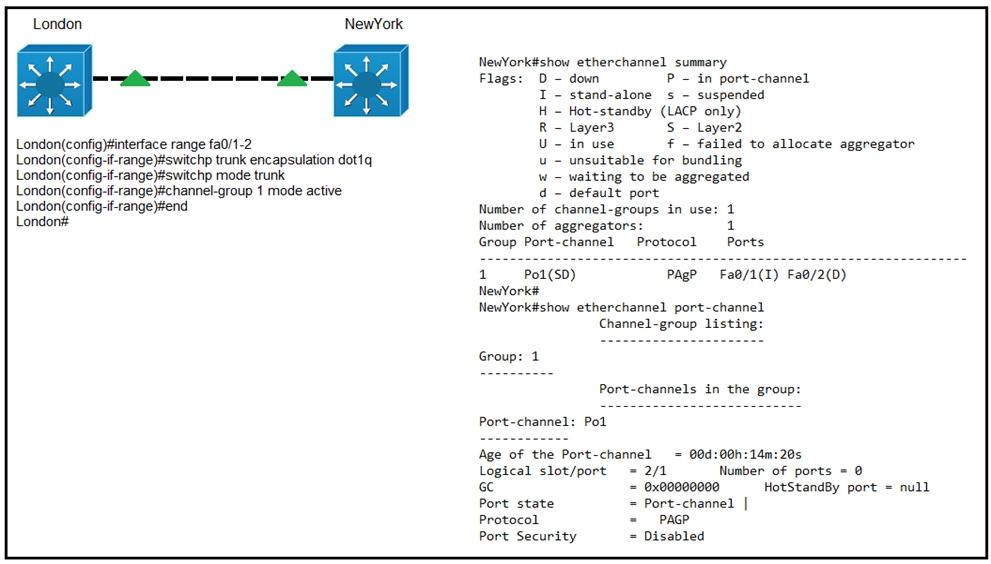

Refer to the exhibit. Communication between London and New York is down.
Which command set must be applied to the NewYork switch to resolve the issue?

  1. NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode negotiate NewYork(config-if)#end NewYork#
  2. NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode on NewYork(config-if)#end NewYork#
  3. NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode passive NewYork(config-if)#end NewYork#
  4. NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode auto NewYork(config-if)#end NewYork#

Answer(s): C

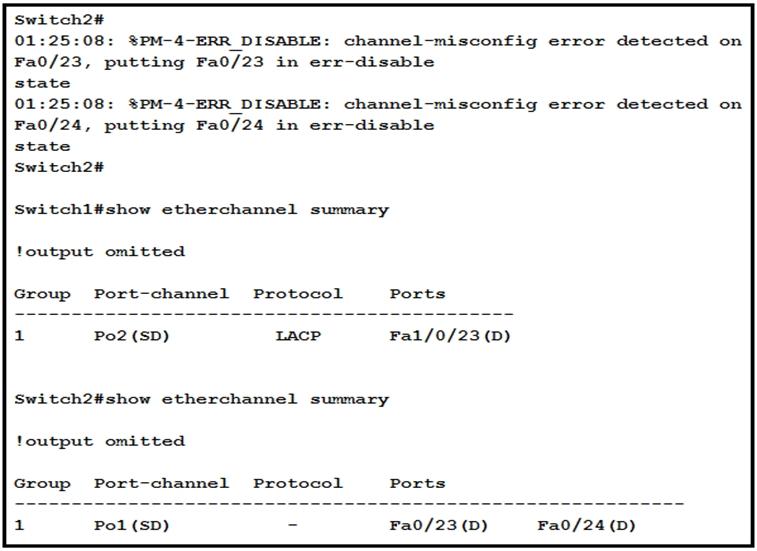

Refer to the exhibit. An engineer is configuring an EtherChannel between Switch1 and Switch2 and notices the console message on Switch2. Based on the output, which action resolves this issue?

  1. Configure more member ports on Switch1.
  2. Configure less member ports on Switch2.
  3. Configure the same port channel interface number on both switches.
  4. Configure the same EtherChannel protocol on both switches.

Answer(s): D



Viewing page 52 of 268
Viewing questions 205 - 208 out of 1067 questions
