Cisco 350-501 Exam Questions
Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) (Page 6 )

Updated On: 30-May-2026
View Related Case Study

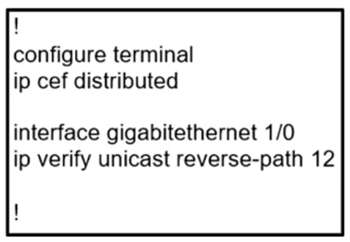

Refer to the exhibit. Which show command should be implemented to display per-interface statistics about uRPF drops and suppressed drops?

  1. show cef interface
  2. show ip traffic
  3. show ip interface
  4. show ip interface brief

Answer(s): C


Reference:

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_data_urpf/configuration/xe-3s/sec-data-urpf- xe-3s-book/cfg-unicast-rpf.html#GUID-3609F224-5D40-422E-8754-B12C60677612



View Related Case Study

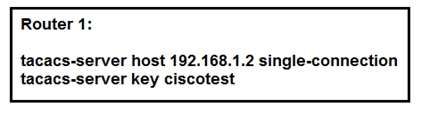

Refer to the exhibit. What is the result of this configuration?

  1. Router 1 opens and closes a TCP connection to the TACACS+ server every time a user requires authorization
  2. Router 1 and the TACACS+ server maintain one open connection between them only when network administrator is accessing the router with password ciscotest
  3. Router 1 and the TACACS+ server maintain one open connection between them
  4. Router 1 opens and closes a TCP connection to the TACACS+ server every time a user requires authentication

Answer(s): C



View Related Case Study

Which QoS model allows hosts to report their QoS needs to the network?

  1. IntServ
  2. CB-WFQ
  3. DiffServ
  4. MQC

Answer(s): A

Explanation:

IntServ follows the signaled-QoS model, where the end-hosts signal their QoS needs to the network.


Reference:

https://www.cisco.com/en/US/technologies/tk543/tk766/ technologies_white_paper09186a00800a3e2f.html



View Related Case Study

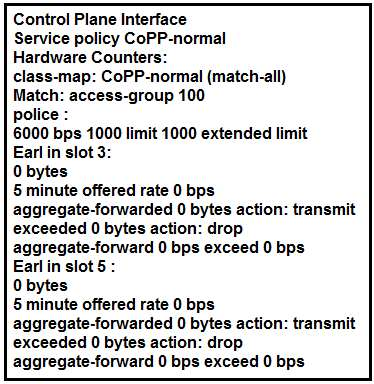

Refer to the exhibit. Which show command shows statistics for the control plane policy and is used to

troubleshoot?

  1. show control-plane CoPP
  2. show policy control-plane
  3. show control-plane
  4. show policy-map control-plane

Answer(s): D



View Related Case Study



Refer to the exhibit. An engineer has started to configure a router for secure remote access as shown. All users who require network access need to be authenticated by the SSH protocol. Which two actions must the engineer implement to complete the SSH configuration? (Choose two.)

  1. Configure an IP domain name.
  2. Configure ACL 100 to permit access to port 22.
  3. Configure a password under the vty lines.
  4. Configure crypto keys.
  5. Configure service password encryption.

Answer(s): A,D



View Related Case Study

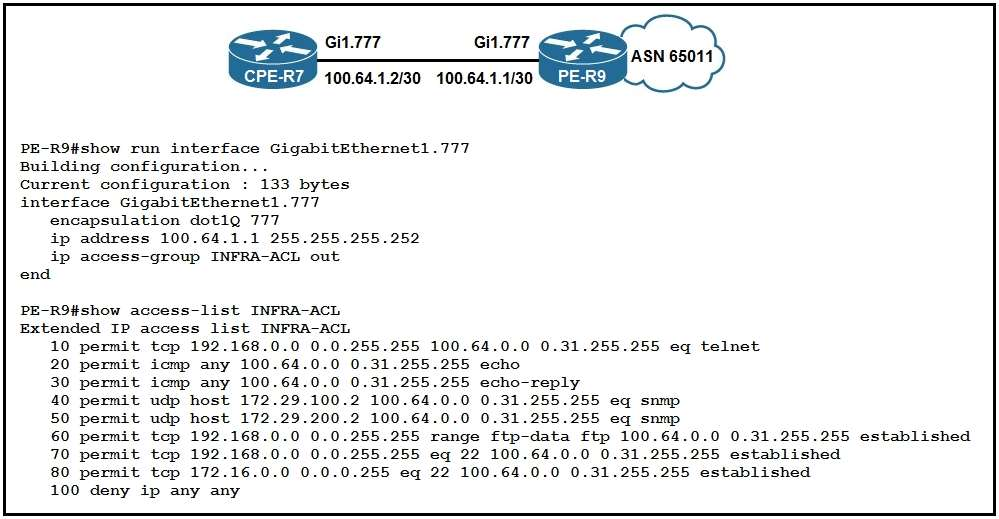

Refer to the exhibit. To protect in-band management access to CPE-R7, an engineer wants to allow only SSH management and provisioning traffic from management network 192.168.0.0/16. Which infrastructure ACL change must be applied to router PE-R9 to complete this task?

  1. ip access-list extended INFRA-ACL
    15 permit tcp 192.168.0.0 0.0.255.255 range 49152 65535 100.64.0.0 0.31.255.255 eq 443
  2. ip access-list extended INFRA-ACL
    no 10
    15 permit tcp 192.168.0.0 0.0.255.255 range 49152 65535 100.64.0.0 0.31.255.255 eq 22
  3. ip access-list extended INFRA-ACL
    15 permit tcp 192.168.0.0 0.0.255.255 range 49152 65535 100.64.0.0 0.31.255.255 eq 22
  4. ip access-list extended INFRA-ACL
    no 10
    15 permit tcp 192.168.0.0 0.0.255.255 eq 22 100.64.0.0 0.31.255.255 eq 22

Answer(s): B



View Related Case Study

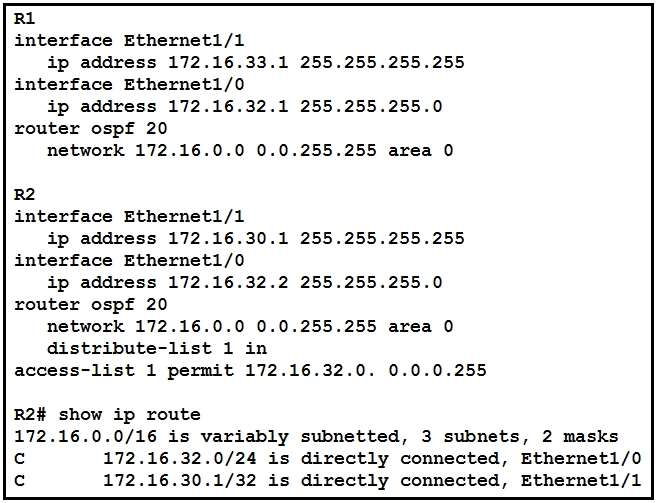

Refer to the exhibit. A network engineer notices that router R2 is failing to install network 172.16.33.1/32 in the routing table. Which configuration must the engineer apply to R2 to fix the problem?

  1. R2(config)# access-list 1 permit 172.16.33.0 0.0.0.255
  2. R2(config)# access-list 1 permit 172.16.33.0 255.255.0.0
  3. R2(config)# access-list 1 permit 172.16.33.0 255.255.255.0
  4. R2(config)# access-list 1 permit 172.16.33.0 255.0.0.0

Answer(s): A



View Related Case Study

Which two PHY modes are available to implement an IOS XR 10 Gigabit Ethernet interface? (Choose two.)

  1. LAN
  2. SONET
  3. MAN
  4. WAN
  5. WDWM

Answer(s): A,D



Viewing page 6 of 66
Viewing questions 41 - 48 out of 515 questions
