Free Fortinet NSE7_EFW-7.0 Exam Braindumps (page: 5)

Page 5 of 42
PDF with 163 Questions

Which statement about IKE and IKE NAT-T is true?

  1. IKE is used to encapsulate ESP traffic in some situations, and IKE NAT-T is used only when the local FortiGate is using NAT on the IPsec interface.
  2. IKE is the standard implementation for IKEv1 and IKE NAT-T is an extension added in IKEv2.
  3. They both use UDP as their transport protocol and the port number is configurable.
  4. They each use their own IP protocol number.

Answer(s): C

Explanation:

IKE without NAT-T runs over UDP port 500. IKE with NAT-T runs over UDP port 4500. It can be configurable - https://docs.fortinet.com/document/fortigate/7.0.0/new- features/33578/configurable-ike-port

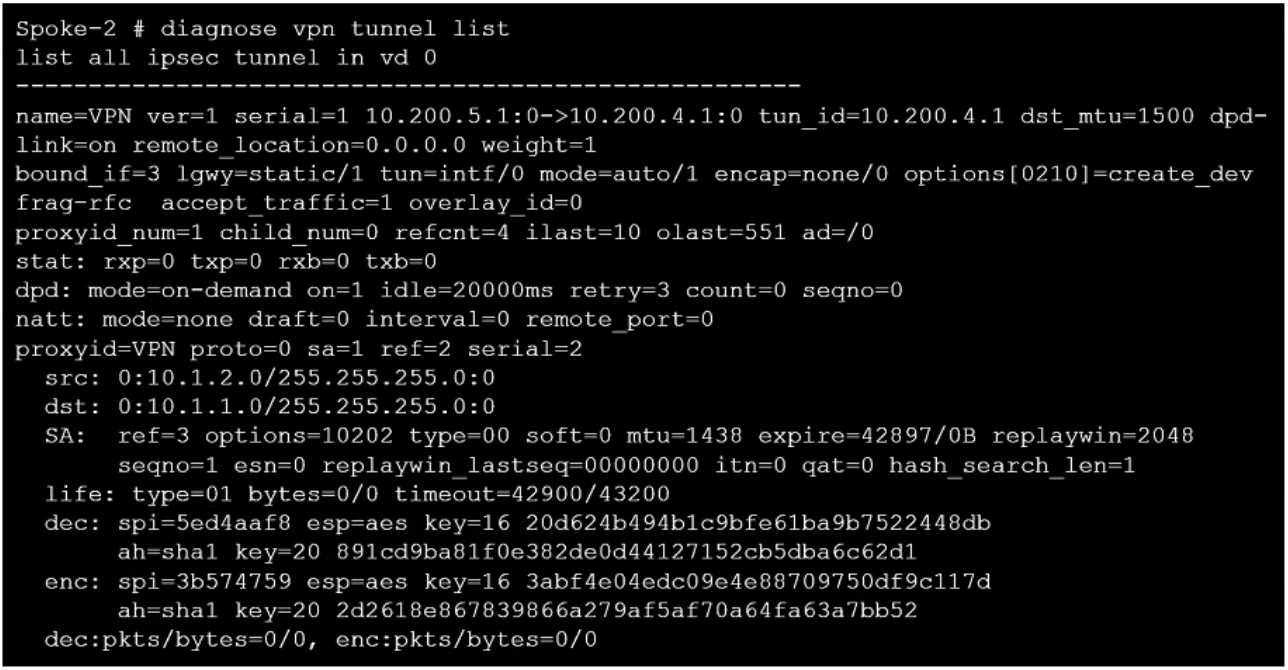

Refer to the exhibit, which contains the partial output of a diagnose command.



Based on the output, which two statements are correct? (Choose two.)

  1. The remote gateway has quick mode selectors containing a destination subnet of 10.1.2.0/24.
  2. The remote gateway IP is 10.200.5.1.
  3. DPD is disabled.
  4. Anti-replay is enabled.

Answer(s): A,D

Explanation:

Enterprise_Firewall_7.0_Study_Guide-Online.pdf p 427, 444 Since the local subnet is 10.1.2.0/24, the remote gateway has the destination subnet as 10.1.2.0. The remote gateway IP is 10.200.4.1. DPD is enabled (dpd-link=on)



Which statement about the designated router (DR) and backup designated router (BDR) in an OSPF multi-access network is true?

  1. Only the DR receives link state information from non-DR routers.
  2. Non-DR and non-BDR routers form full adjacencies to DR only.
  3. Non-DR and non-BDR routers send link state updates and acknowledgements to 224.0.0.6.
  4. FortiGate first checks the OSPF ID to elect a DR.

Answer(s): C

Explanation:

Some special IP multicast addresses are reserved for OSPF: 224.0.0.5: All OSPF routers must be able to transmit and listen to this address. 224.0.0.6: All DR and BDR routers must be able to transmit and listen to this address. https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first- ospf/7039-1.html



An administrator has been assigned the task of creating a set of firewall policies which must be evaluated before any custom policies defined within the policy packages of managed FortiGate devices, across all 25 ADOMSs in FortiManager.
How should the administrator accomplish this task?

  1. Create a footer policy in the Global ADOM containing the firewall policies that must be evaluated first, and then assign this footer policy to all other ADOMs.
  2. Create a header policy in the Global ADOM containing the firewall policies that must be evaluated first, and then assign this header policy to all other ADOMs.
  3. Move the FortiGate devices into a single globally scoped ADOM, and merge policy packages, inserting the new firewall policies at the top.
  4. Use a CLI script from the root ADOM on FortiManager to push these new policies to all FortiGate devices, through the FGFM tunnel.

Answer(s): B

Explanation:

Enterprise_Firewall_7.0_Study_Guide-Online.pdf p 244



Viewing page 5 of 42
Viewing questions 17 - 20 out of 163 questions
