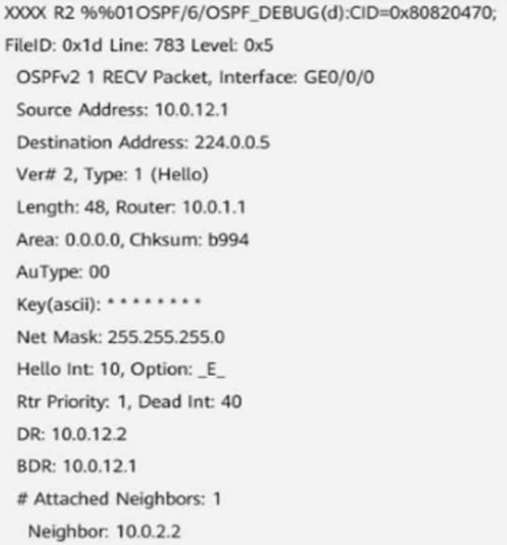

The figure shows the debugging information on an OSPF router. Which of the following is the router ID of this router?
Answer(s): D
In the debugging information provided, the Router ID field shows the value 10.0.1.1 under the "Router" section. This indicates that the router sending the OSPF Hello packet has a Router ID of 10.0.1.1.

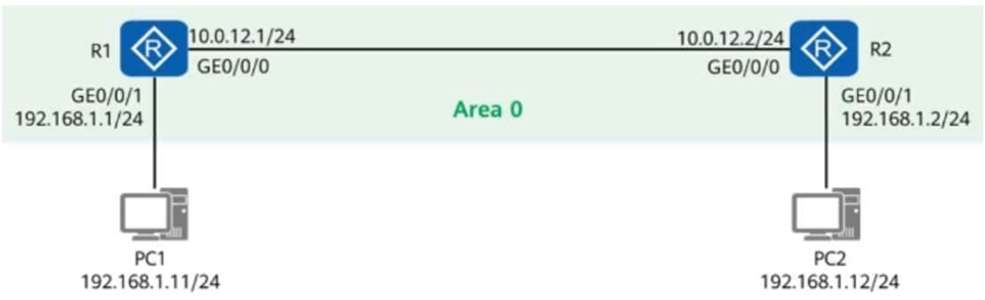

A network engineer provides a troubleshooting report after rectifying a fault. The actual network is simplified into the one shown in the figure, where R1 and R2 both have OSPF enabled, and function as the gateways of PC1 and PC2, respectively. Given this, which of the following statements is false?
Answer(s): A,B,D
The OSPF routing table of R1 contains a route to 192.168.1.0/24. True: R1 is directly connected to the network 192.168.1.0/24 via its GE0/0/1 interface, so this route will appear in R1's routing table.The router LSA generated by R1 contains information with the link ID being 192.168.1.0. True: R1 will generate a Router-LSA that includes the networks it is directly connected to. Since R1 is connected to the 192.168.1.0/24 network, this information will be included in its LSA.R1 cannot ping 192.168.1.2. False: R1 should be able to ping 192.168.1.2 because it is directly connected to the 192.168.1.0/24 network on its GE0/0/1 interface. The IP address 192.168.1.2 likely belongs to PC2 or an interface on R2.PC1 and PC2 cannot ping each other. True: PC1 and PC2 are in different networks (192.168.1.11/24 and 192.168.1.12/24, respectively), and their traffic must be routed through R1 and R2. If there is a routing or OSPF issue, PC1 and PC2 may not be able to ping each other.
During an attempt to log in to a NetEngine AR6120 through the console port, the network engineer finds that the password is incorrect and the login fails. If a Telnet account can be used to log in to the device and the account has the permission to change the console port password, the network engineer can log in to the device through Telnet to change the console port password.
Answer(s): A
If the network engineer can successfully log in to the NetEngine AR6120 device via Telnet and the account used has the required permissions (such as administrator privileges), the engineer can modify the device configuration, including changing the console port password. Once logged in via Telnet with appropriate privileges, the engineer can access the device’s configuration mode and update the console port password to regain access through the console port.

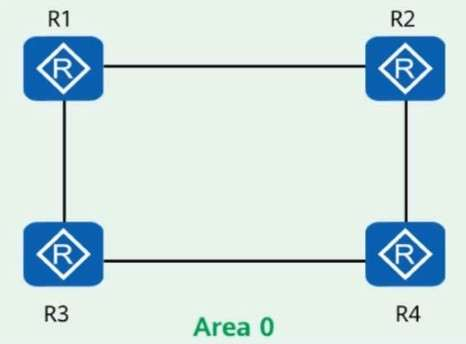

On the OSPF network shown in the figure, a network engineer finds that R1 and R2 have the same router ID, and both have imported default routes (with the default-route-advertise always command configured). Given this, which of the following statements is false?
Answer(s): B
R1 and R2 can establish a neighbor relationship. OSPF requires unique router IDs to establish neighbor relationships. Since R1 and R2 have the same router ID, they cannot establish a neighbor relationship. OSPF will fail to form a neighbor adjacency between two routers with identical router IDs.
On the network shown in the figure, the DHCP server function is enabled on GE0/0/0 of R2, and the address pool is an interface address pool. When GE0/0/0 and GE0/0/1 of R1 function as DHCP clients, only one interface can obtain an IP address by default.
In a typical DHCP configuration where a router (in this case, R2) acts as a DHCP server with an address pool based on its interface address, the DHCP server will assign IP addresses to clients on the same network segment. However, if the address pool is limited to the IP addresses available on that interface (in this case, GE0/0/0 of R2), it can only assign one address to one client by default. Therefore, when both GE0/0/0 and GE0/0/1 of R1 act as DHCP clients, only one of these interfaces can obtain an IP address from the DHCP server because the address pool has a limited number of addresses corresponding to the single interface of R2.

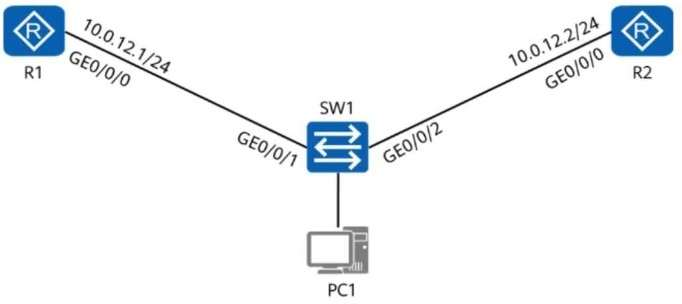

On the network shown in the figure, VRRP is configured on R1 and R2, and the virtual IP address is 10.0.12.254. After the configuration is complete, the network engineer checks the VRRP status on R1 and R2, and finds that both devices are in the Master state. Which of the following is not a possible cause of this problem?
If the interfaces on the switch are in different VLANs, R1 and R2 may not be able to communicate properly to establish a VRRP relationship. This would typically prevent both from reaching the Master state, not cause both to be in the Master state.
On a PIM-SM multicast network, a network engineer finds that multicast clients cannot receive multicast data. Which of the following is not a possible cause of this problem?
Answer(s): C
State-Refresh messages are used in PIM to keep the multicast forwarding state alive and are typically sent by the RP. However, if the downstream interfaces are disabled from forwarding these messages, it does not directly affect the ability of clients to receive multicast data. The clients can still join the multicast group as long as the initial Join messages are processed correctly. Thus, this option is the least likely to be a cause for the issue described.
As its network scale expands, an enterprise plans to move scattered servers to the same equipment room for unified management. During hardware migration, network engineers do not need to perform device commissioning and therefore do not need to work out a migration solution.
Even if network engineers do not need to perform device commissioning, migrating servers to a new equipment room typically requires careful planning and a migration solution. This is necessary to ensure proper connectivity, minimal downtime, and that all network configurations are correctly implemented. Key considerations in a migration solution might include:-Planning the physical layout and power requirements.-Ensuring network configurations (IP addresses, VLANs, routing, etc.) are appropriate for the new environment.-Testing connectivity and services after migration.-Implementing a rollback plan in case of issues during migration.-
