On a BGP/MPLS IP VPN network, which of the following are carried when a PE advertises VPNv4 routes? (Choose all that apply.)
Answer(s): A,B,C
IPv4 prefix: The actual IPv4 prefix of the customer network is part of the VPNv4 route. The VPNv4 address is a combination of the Route Distinguisher (RD) and the IPv4 prefix.RD (Route Distinguisher): The Route Distinguisher is used to make the IPv4 prefix unique in the MPLS VPN network. The RD allows multiple customers to use overlapping IP address spaces without conflict.Export target: The Export Route Target (RT) is an extended BGP community attribute that determines which VPNs a route should be exported to. It specifies which VPN sites are allowed to receive the route.

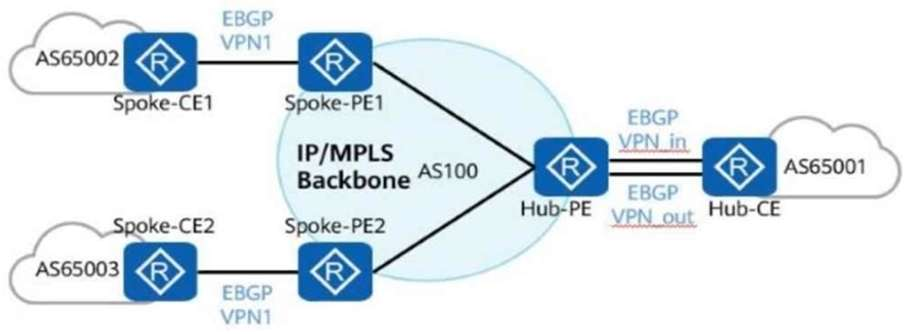

In the hub-spoke networking shown in the figure, the Hub-PE can be configured to allow repetitive local AS numbers for correct route transmission.
Answer(s): A
In the hub-spoke networking topology shown in the figure, the Hub-PE acts as an intermediary between the different spoke sites (Spoke-PE1 and Spoke-PE2). Since both Spoke-CE1 and Spoke-CE2 belong to different AS numbers, but the Hub-PE communicates with both spokes using EBGP, the issue of repetitive local AS numbers may arise. To prevent BGP from rejecting routes that contain the local AS number multiple times, the Hub-PE can be configured to allow repetitive local AS numbers. This ensures that the routes learned from different spokes can be properly propagated to the other spokes or to the Hub-CE without being rejected due to AS path loop detection mechanisms.
On an MPLS network, after an LSR receives a Hello message from a peer, the LSR establishes an LDP adjacency with the peer. The Hello message is sent in multicast or unicast mode.
In MPLS (Multiprotocol Label Switching), LDP (Label Distribution Protocol) uses Hello messages to discover peers and establish adjacencies. These Hello messages can be sent in either multicast or unicast mode, depending on the situation:-Multicast: LDP Hello messages are typically sent using multicast to discover peers on directly connected networks (usually on Ethernet interfaces).-Unicast: After discovering a peer, LDP Hello messages can also be sent in unicast mode to maintain the LDP session. Once the LSR (Label Switch Router) receives a Hello message from a peer, it establishes an LDP adjacency with the peer, and this adjacency is used for further label distribution and session establishment.
MPLS can carry multiple network protocol services, including unicast IPv4 services, multicast IPv4 services, unicast IPv6 services, and multicast IPv6 services.
MPLS (Multiprotocol Label Switching) is a versatile technology that can carry a wide range of network protocol services. These include:-Unicast IPv4 services: MPLS is commonly used to carry unicast IPv4 traffic across an MPLS network.-Multicast IPv4 services: MPLS can also be used to support multicast IPv4 traffic with the appropriate extensions, such as Multicast VPN (MVPN).-Unicast IPv6 services: MPLS can transport unicast IPv6 traffic over an MPLS backbone, typically using MPLS L3VPN or 6PE (IPv6 Provider Edge) techniques.Multicast IPv6 services: Similar to multicast IPv4, MPLS can also support multicast IPv6 services through specific extensions and configurations. This flexibility makes MPLS a powerful platform for carrying multiple types of traffic efficiently.
On a BGP/MPLS IP VPN network, VPNv4 routes carry the export RT. Which of the following attributes is used by MP-BGP to carry the export RT?
In a BGP/MPLS IP VPN network, VPNv4 routes use the Extended Community attribute to carry the Route Target (RT), which is used to control how routes are imported and exported between different VPNs. The Export RT is applied when exporting a VPNv4 route from a VRF on a PE router, and it is carried within the Extended Community attribute, allowing other PE routers to determine if the route should be imported into their respective VRFs.

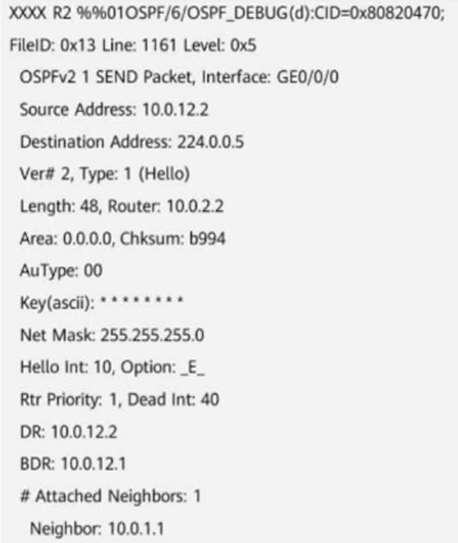

The figure shows the debugging information on an OSPF router. Which of the following is the router ID of this router?
The debugging information in the figure shows an OSPF Hello packet being sent. The field Router: 10.0.2.2 indicates the Router ID of the router that is generating the OSPF Hello packet.
The device operating environment is crucial for stable device operating, including the equipment room, power supply, and heat dissipation. Maintenance personnel must be on site to maintain the device operating environment.
Answer(s): B
While the operating environment of network devices—such as the equipment room, power supply, and heat dissipation—is indeed crucial for the stable operation of devices, it is not always necessary for maintenance personnel to be physically on-site to maintain the environment. Many aspects of the environment can be monitored and controlled remotely using environmental monitoring systems, such as temperature and humidity sensors, power management systems, and remote cooling controls.In critical situations where physical intervention is required, personnel may need to be on-site, but routine monitoring and many maintenance tasks can be performed remotely.

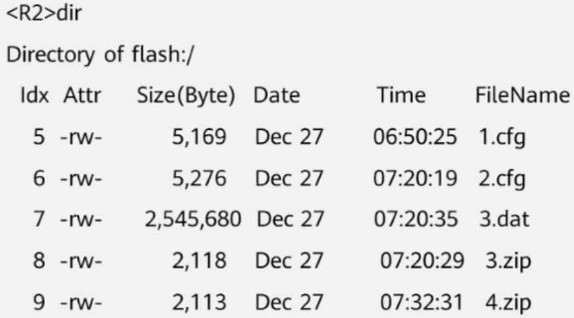

The figure shows the file information on R2. When a network engineer runs the dir | exclude 1 command to view the file information, which of the following files will be displayed?
Answer(s): B,C,D
The command dir | exclude 1 is used to exclude lines that contain the digit "1" from the output of the dir command. Therefore, any files whose names include the digit "1" will not be displayed.Let’s analyze the files:-1.cfg: Contains the digit "1" (will be excluded).-2.cfg: Does not contain the digit "1" (will be displayed).-3.dat: Does not contain the digit "1" (will be displayed).-3.zip: Does not contain the digit "1" (will be displayed).-4.zip: Contains the digit "1" (will be excluded).
