Free AZ-305 Exam Braindumps
Designing Microsoft Azure Infrastructure Solutions Questions 80–84 (page: 19)

Updated On: 16-Nov-2026
View Related Case Study

HOTSPOT (Drag and Drop is not supported)
You have a Microsoft Entra tenant that contains a management group named MG1.
You have the Azure subscriptions shown in the following table.

The subscriptions contain the resource groups shown in the following table.

The tenant contains the Azure AD security groups shown in the following table.

The tenant contains the user accounts shown in the following table.

You perform the following actions:
-Assign User3 the Contributor role for Sub1.
-Assign Group1 the Virtual Machine Contributor role for MG1.
-Assign Group3 the Contributor role for the Tenant Root Group.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Note: Each correct selection is worth one point.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Box 1: Yes
User1 is member of Group1.
Group1 is assigned the Virtual Machine Contributor role for MG1.
MG1 is in Sub1.
RG1 is in Sub1.
Virtual Machine Contributor
Create and manage virtual machines, manage disks, install and run software, reset password of the root user of the virtual machine using VM extensions, and manage local user accounts using VM extensions. This role does not grant you management access to the virtual network or storage account the virtual machines are connected to. This role does not allow you to assign roles in Azure RBAC.
Management groups are containers that help you manage access, policy, and compliance across multiple subscriptions. Create these containers to build an effective and efficient hierarchy that can be used with Azure Policy and Azure Role Based Access Controls.
If your organization has many subscriptions, you may need a way to efficiently manage access, policies, and compliance for those subscriptions. Azure management groups provide a level of scope above subscriptions. You organize subscriptions into containers called "management groups" and apply your governance conditions to the management groups. All subscriptions within a management group automatically inherit the conditions applied to the management group.
Box 2: No
User2 is a member of Group2.
User2 has no special permissions to Group2.
Box 3: Yes
User3 is a member of Group3.
Group3 is assigned the Contributor role for the Tenant Root Group.
As a member of the Tenant Root Group User3 can create storage accounts in RG2.
Note: Each Microsoft Entra tenant is given a single top-level management group called the root management group. This root management group is built into the hierarchy to have all management groups and subscriptions fold up to it. This group allows global policies and Azure role assignments to be applied at the directory level.


Reference:

https://learn.microsoft.com/en-us/azure/role-based-access-control/built-in-roles https://learn.microsoft.com/en-us/azure/governance/management-groups/manage https://learn.microsoft.com/en-us/azure/defender-for-cloud/management-groups-roles



View Related Case Study

HOTSPOT (Drag and Drop is not supported)
You have several Azure App Service web apps that use Azure Key Vault to store data encryption keys.
Several departments have the following requests to support the web app:

Which service should you recommend for each department’s request? To answer, configure the appropriate options in the answer area.
Note: Each correct selection is worth one point.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Box 1: Microsoft Entra Privileged Identity Management
Microsoft Entra Privileged Identity Management (PIM) is the correct service for this scenario. It provides a comprehensive set of features that directly address your requirements for managing, monitoring, and auditing privileged access.
Key Features for Your Scenario
Review Membership & Justification: PIM allows you to perform access reviews where reviewers can approve or deny continued membership. You can require users to provide a business justification both when they activate a role and during these access reviews.
Alerts for Assignment Changes: The service generates security alerts and email notifications when administrative roles are assigned outside of PIM or when roles are activated.
Activation & Action History: PIM maintains an audit history of role activations. To see the specific changes administrators made to Azure resources during their activation period, you can view the Azure resource activity associated with that activation.
Box 2: Managed Identities for Azure resources
Managed identities provide an identity for applications to use when connecting to resources that support Microsoft Entra authentication. Applications may use the managed identity to obtain Microsoft Entra tokens. With Azure Key Vault, developers can use managed identities to access resources. Key Vault stores credentials in a secure manner and gives access to storage accounts.
Note:
To enable your Azure App Service to securely access Azure Key Vault using Managed Identities, follow these steps to configure the environment and update your application code.
1. Enable Managed Identity on the App Service
You must first give your Web App its own identity in Microsoft Entra ID.
2. Grant Access Permissions in Key Vault
Once the identity is created, you must authorize it to read keys from the Key Vault. Azure RBAC is the recommended modern approach.
3. Retrieve Keys in Application Code
Use the Azure Identity library and the Azure Key Vault Keys library to access the vault without hardcoded credentials.
Box 3: Microsoft Entra Privileged Identity Management
Privileged Identity Management provides time-based and approval-based role activation to mitigate the risks of excessive, unnecessary, or misused access permissions on resources that you care about. Here are some of the key features of Privileged Identity Management:
Provide just-in-time privileged access to Microsoft Entra ID and Azure resources
Assign time-bound access to resources using start and end dates
Note:
In Azure environments, PIM is specifically designed to provide just-in-time (JIT) and time-bound elevated access to administrative roles.
While Microsoft Entra ID Protection focuses on detecting and remediating identity-based risks (like leaked credentials or atypical travel), PIM directly manages the lifecycle of privileged access.
Why PIM is the Better Fit
Just-in-Time Access: You can make a user "eligible" for an administrator role. They only activate the role when they actually need to create or configure the web apps, rather than having permanent high-level permissions.
Time-Bound Windows: You can enforce a maximum duration for the activation (e.g., 4 hours), after which the administrator access is automatically revoked.
Approval Workflows: If the test environment is sensitive, PIM can require a manager or designated administrator to approve the request before the elevated access is granted.
Audit Logging: Every activation and action taken while the role is active is logged, providing a clear trail for security compliance.


Reference:

https://docs.microsoft.com/en-us/azure/active-directory/privileged-identity-management/pim-configure https://oneuptime.com/blog/post/2026-02-16-how-to-set-up-managed-identity-for-azure-app-service-to-access-key-vault/view



View Related Case Study

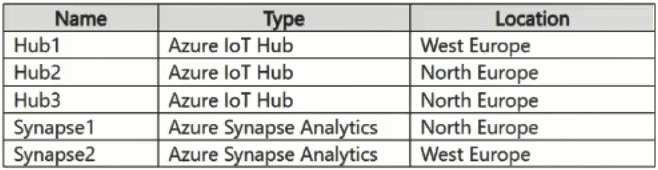

You are building an app named App1 that will monitor thousands of sensors across multiple sites. The app will include the resources shown in the following table.

You need to recommend a real-time analytics solution for App1. The solution must meet the following requirements:
-Perform analytics on the sensor data in real time.
-Ensure that the solution scales dynamically.
-Minimize development effort.
-Minimize costs.
What is the minimum number of Azure Stream Analytics jobs you should deploy?

  1. 1
  2. 2
  3. 3
  4. 6

Answer(s): B

Explanation:

One Azure Stream Analytics job for the West Europe region, and one Azure Stream Analytics job for the North Europe region.
Note:
A single Azure Stream Analytics (ASA) job cannot span multiple regions; it is a single-region service by design, and by default, customer data and metadata for the job are stored and processed within that single region to meet data residency requirements.
While ASA offers built-in features like Availability Zones to improve fault tolerance and uptime within a region, it does not natively support distributing a single job across different geographic regions.
A single Azure Stream Analytics (ASA) job can include both Azure IoT Hubs and Azure Synapse Analytics by configuring IoT Hub as a streaming input and Synapse Analytics (specifically, a SQL pool or Data Explorer pool within it) as an output. You can set up multiple inputs and outputs for an ASA job, allowing you to ingest data from IoT devices and then process and store it in Synapse Analytics for further analysis and reporting.
How to integrate them:
Configure the Input: In your Azure Stream Analytics job, add an input of type Azure IoT Hub. This ingests the real-time data streams from your IoT devices.
Write Your Query: Use the Stream Analytics Query Language to define the transformations and processing you want to perform on the incoming data.
Configure the Output: Add an output to your ASA job that targets an Azure Synapse Analytics resource, such as a Synapse SQL pool or Data Explorer pool.
Connect and Process: Once configured, the ASA job will read data from the IoT Hub, apply your query logic, and then write the results to the connected Synapse Analytics instance, making the data available for further analytics and business intelligence.


Reference:

https://learn.microsoft.com/en-us/azure/stream-analytics/data-protection https://learn.microsoft.com/en-us/azure/stream-analytics/stream-analytics-solution-patterns



View Related Case Study

HOTSPOT (Drag and Drop is not supported)
You have six Azure subscriptions in a management group. Each subscription contains two resource groups. Each resource group contains an Azure App Service instance. The App Service instances use app slots.
You need to perform the following actions on three of the subscriptions:
-Disable public network access for all the app slots.
-Assign tags to all the App Service instances.
The solution must meet the following requirements:
-Ensure that the App Service instances in the remaining subscriptions are unaffected.
-Minimize administrative effort.
What is the minimum number of Azure Policy definitions and assignments required? To answer, select the appropriate options in the answer area.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Box 1: 2
Policy definitions
Policy definition 1: Disable public network access for all the app slots.
Policy definition 2: Assign tags to all the App Service instances.
Box 2: 1
Policy assignments
Group the two policy definitions into a single policy initiative. For the policy initiative make one policy assignment with scope of the three subscriptions.
Note: Azure Policy evaluates resources and actions in Azure by comparing the properties of those resources to business rules. These business rules, described in JSON format, are known as policy definitions. To simplify management, several business rules can be grouped together to form a policy initiative (sometimes called a policySet). Once your business rules have been formed, the policy definition or initiative is assigned to any scope of resources that Azure supports, such as management groups, subscriptions, resource groups, or individual resources. The assignment applies to all resources within the Resource Manager scope of that assignment.


Reference:

https://learn.microsoft.com/en-us/azure/governance/policy/overview



View Related Case Study

HOTSPOT (Drag and Drop is not supported)
You have the following Azure management group hierarchy.
● A root management group named RootMG1
● Under RootMG1, two child management groups named Group1 and Group2
● Under Group2, three Azure subscriptions named Sub1, Sub2, and Sub3
Your company has identified the following governance requirements:
● Production and development workloads must inherit a common baseline policy that restricts Azure regions and enforces required resource tags.
● Sub3 must remain under Group2 for organizational reporting, but the subscription must NOT inherit the common baseline policy.
● Existing noncompliant resources in Sub1 must be brought into compliance after the common baseline policy is assigned.
● Access to shared AI resources must support self-service requests, approval, periodic review, and automatic expiration
● The team that manages Group1 must minimize policy assignments for RootMG1.
A consultant proposes the following governance solution:
● Assign an Azure Policy security baseline named Policy1 that contains the region and tagging controls for Group2.
● Exclude Sub3 from the Policy1 assignment.
● After assigning Policy1, run remediation tasks for the existing resources in Sub1.
● Use Microsoft Entra entitlement management for access packages to shared AI resources.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Note: Each correct selection is worth one point.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:





Yes
Yes
No
Policies assigned to Group2 apply to its descendant subscriptions, so Sub1 and Sub2 inherit the region and tagging controls through a single assignment.
Microsoft Entra entitlement management access packages support self-service requests, approval workflows, recurring access reviews, and automatic expiration. Access to the shared AI resources can be provided through security groups included in the packages and granted the appropriate resource permissions.
Excluding Sub3 through the assignment’s notScopes setting prevents Policy1 from applying to that subscription while it remains under Group2. No additional assignment at RootMG1 is necessary.


Reference:

https://learn.microsoft.com/en-us/azUre/governance/policy/concepts/scope https://github.com/MicrosoftDocs/entra-docs/blob/main/docs/id-governance/entitlement-management-overview .md https://github.com/MicrosoftDocs/entra-docs/blob/main/docs/id-governance/entitlement-management-access-p ackage-create.md https://learn.microsoft.com/en-us/azure/governance/policy/concepts/assignment-structure?trk=article-ssr-fronte nd-pulse_little-text-block



Viewing page 19 of 78
Viewing questions 91 - 95 out of 382 questions
