Microsoft AZ-400 Exam Questions
Designing and Implementing Microsoft DevOps Solutions (Page 11 )

Updated On: 21-Feb-2026
Page 11 of 103
PDF with 510 Questions

SIMULATION
You need to create a notification if the peak average response time of an Azure web app named az400-9940427-main is more than five seconds when evaluated during a five-minute period. The notification must trigger the “https://contoso.com/notify” webhook.
To complete this task, sign in to the Microsoft Azure portal.

  1. See Explanation section for answer.

Answer(s): A

Explanation:

1. Open Microsoft Azure Portal
2. Log into your Azure account and go to App Service and look under Monitoring then you will see Alert.
3. Select Add an alert rule

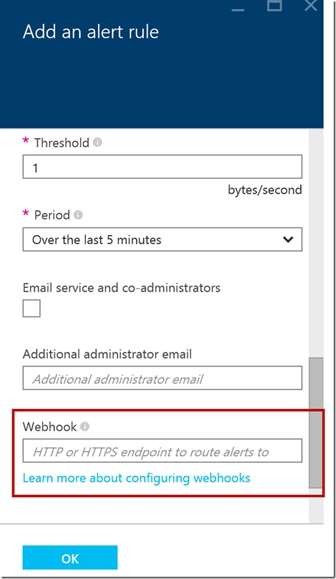

4. Configure the alert rule as per below and click Ok. Source: Alert on Metrics
Resource Group: az400-9940427-main Resource: az400-9940427-main Threshold: 5
Period: Over the last 5 minutes Webhook: https://contoso.com/notify


Reference:

https://azure.microsoft.com/es-es/blog/webhooks-for-azure-alerts/



SIMULATION
You need to create and configure an Azure Storage account named az400lod11566895stor in a resource group named RG1lod11566895 to store the boot diagnostics for a virtual machine named VM1.
To complete this task, sign in to the Microsoft Azure portal.

  1. See Explanation section for answer.

Answer(s): A

Explanation:

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.
On the Storage Accounts window that appears, choose Add. Select the subscription in which to create the storage account. Under the Resource group field, select RG1lod11566895
Next, enter a name for your storage account named: az400lod11566895stor Select Create.

Step 2: Enable boot diagnostics on existing virtual machine
To enable Boot diagnostics on an existing virtual machine, follow these steps:

Sign in to the Azure portal, and then select the virtual machine VM1.
In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

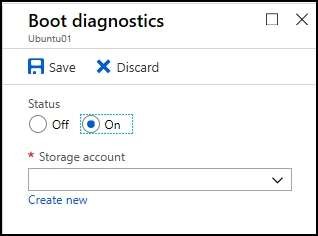

In Boot diagnostics settings, change the status to On, and from the Storage account drop-down list, select the storage account az400lod11566895stor. Save the change.

You must restart the virtual machine for the change to take effect.


Reference:

https://docs.microsoft.com/en-us/azure/storage/common/storage-account-create https://docs.microsoft.com/en-us/azure/virtual-machines/troubleshooting/boot-diagnostics



SIMULATION
You have a web app that connects to an Azure SQL Database named db1.

You need to configure db1 to send Query Store runtime statistics to Azure Log Analytics.
To complete this task, sign in to the Microsoft Azure portal.

  1. See Explanation section for answer.

Answer(s): A

Explanation:

To enable streaming of diagnostic telemetry for a single or a pooled database, follow these steps:

1. Go to Azure SQL database resource.

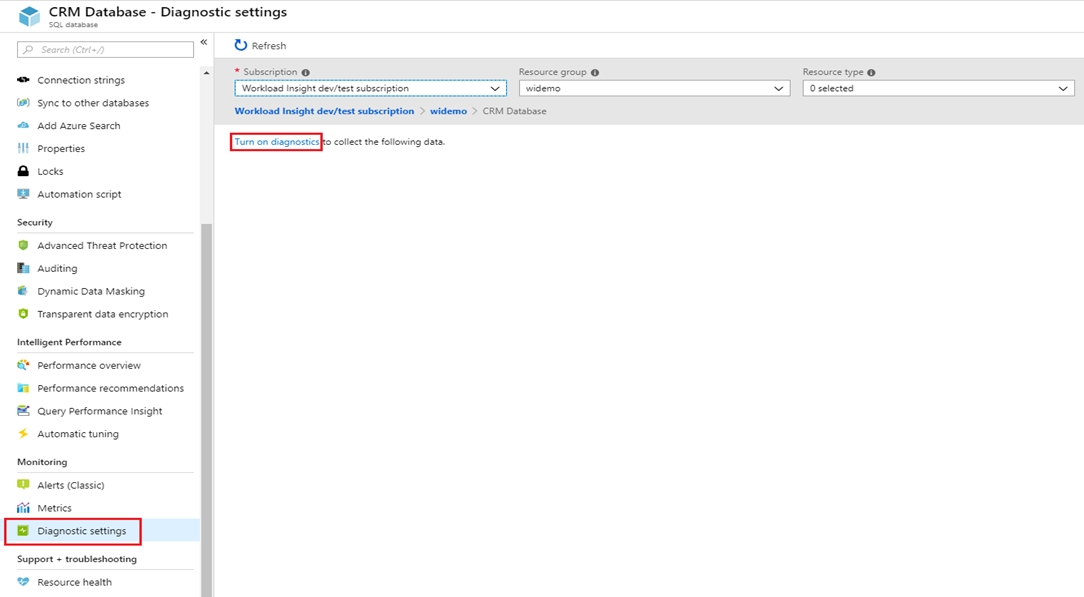

2. Select Diagnostics settings.
3. Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.
4. Select Add diagnostic setting to configure parallel streaming of diagnostics data to multiple resources.


5. Enter a setting name for your own reference.

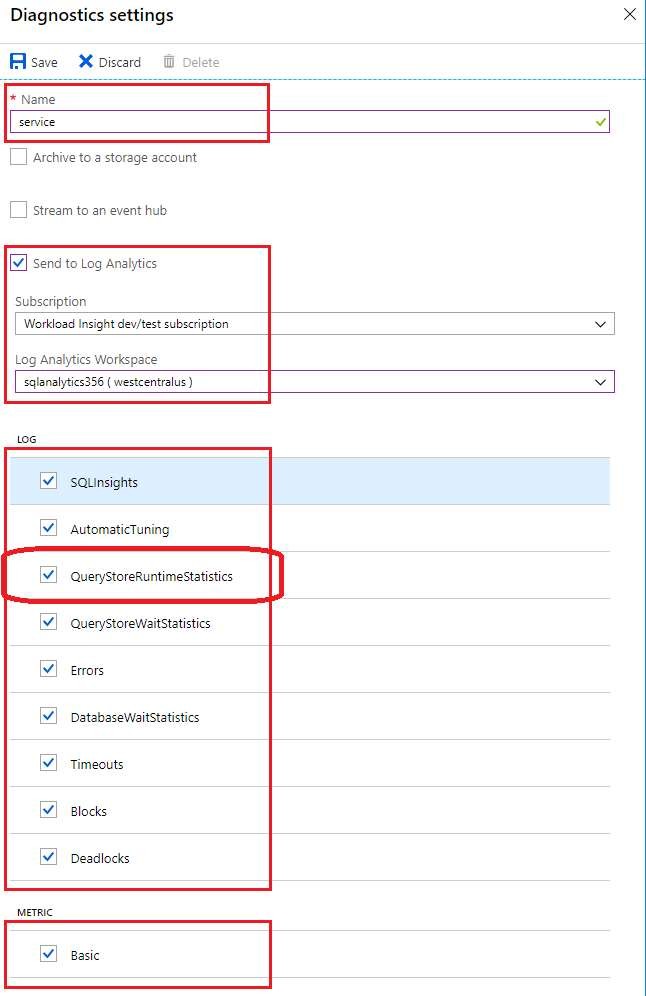

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.
7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: QueryStoreRuntimeStatistics



8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.
9. Select Save.


Reference:

https://docs.microsoft.com/en-us/azure/azure-sql/database/metrics-diagnostic-telemetry-logging-streaming-export-configure



DRAG DROP (Drag and Drop is not supported)
You have several Azure virtual machines that run Windows Server 2019.
You need to identify the distinct event IDs of each virtual machine as shown in the following table.


How should you complete the Azure Monitor query? To answer, drag the appropriate values to the correct locations. Each value may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

NOTE: Each correct selection is worth one point.

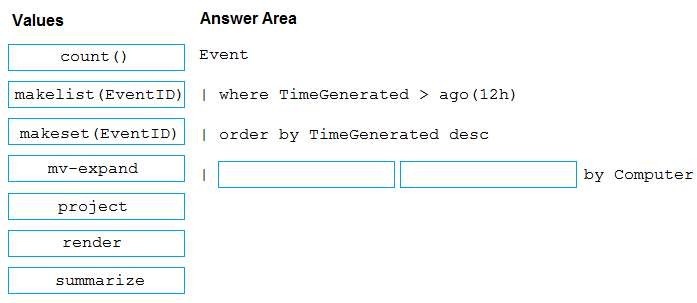

Select and Place:

  1. See Explanation section for answer.

Answer(s): A

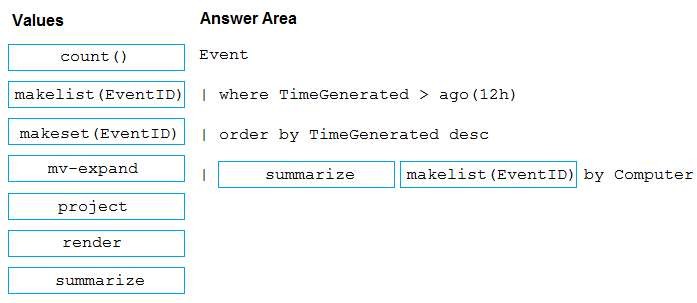

Explanation:




You can use makelist to pivot data by the order of values in a particular column. For example, you may want to explore the most common order events take place on your machines. You can essentially pivot the data by the order of EventIDs on each machine.

Example:
Event
| where TimeGenerated> ago(12h)
| order by TimeGenerateddesc
| summarize makelist(EventID) by Computer


Reference:

https://docs.microsoft.com/en-us/azure/azure-monitor/log-query/advanced-aggregations



HOTSPOT (Drag and Drop is not supported)
You have an Azure web app named Webapp1.

You need to use an Azure Monitor query to create a report that details the top 10 pages of Webapp1 that failed.

How should you complete the query? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

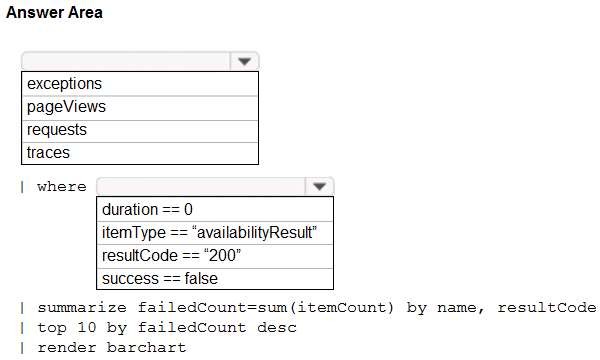

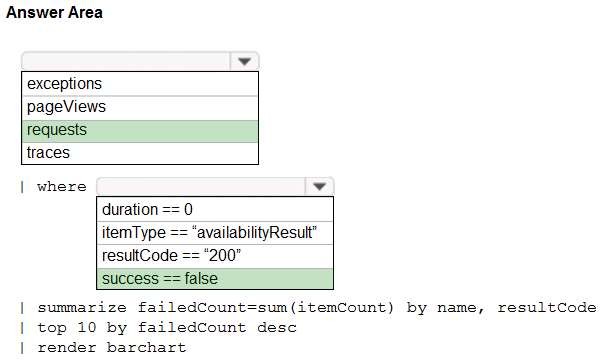

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:





Box 1: requests
Failed requests (requests/failed):
The count of tracked server requests that were marked as failed. Kusto code:
requests
| where success == 'False'
Box 2: success == false


Reference:

https://docs.microsoft.com/en-us/azure/azure-monitor/platform/app-insights-metrics
