AZ-700: Designing and Implementing Microsoft Azure Networking Solutions
Free Practice Exam Questions (page: 14)
Updated On: 2-Jan-2026

Page 14 of 75
PDF with 369 Questions
View Related Case Study

DRAG DROP (Drag and Drop is not supported)

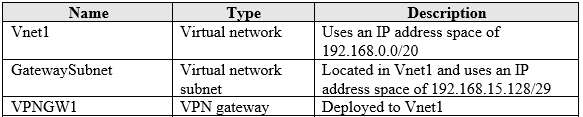

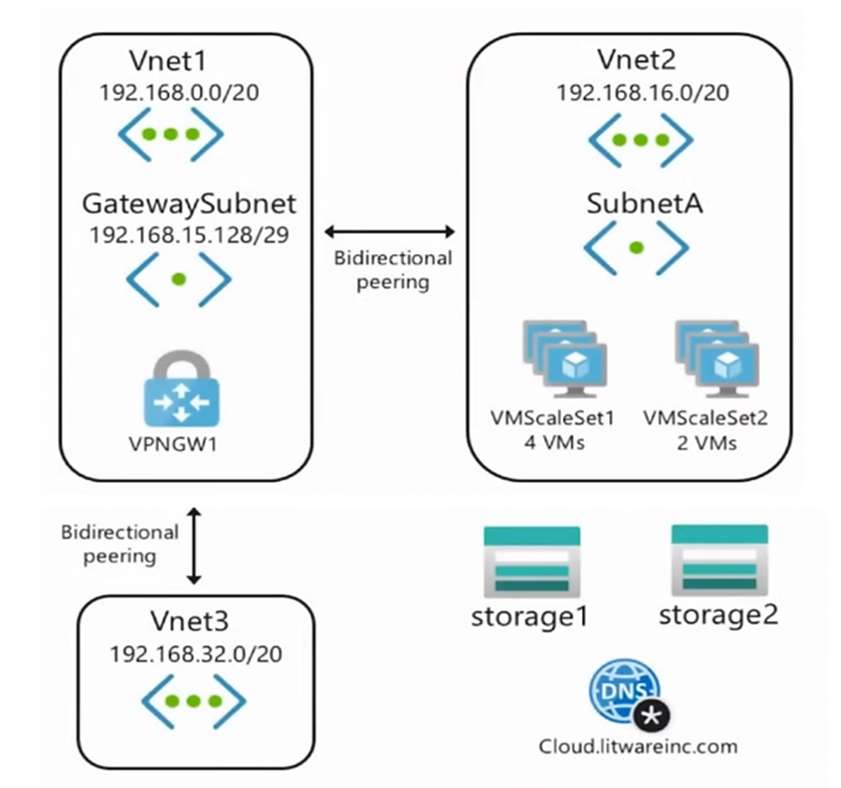

You need to prepare Vnet1 for the deployment of an ExpressRoute gateway. The solution must meet the hybrid connectivity requirements and the business requirements.

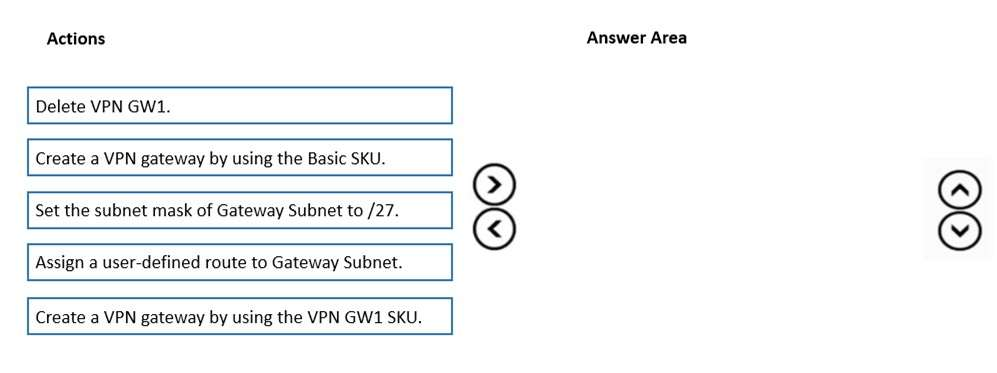

Which three actions should you perform in sequence for Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

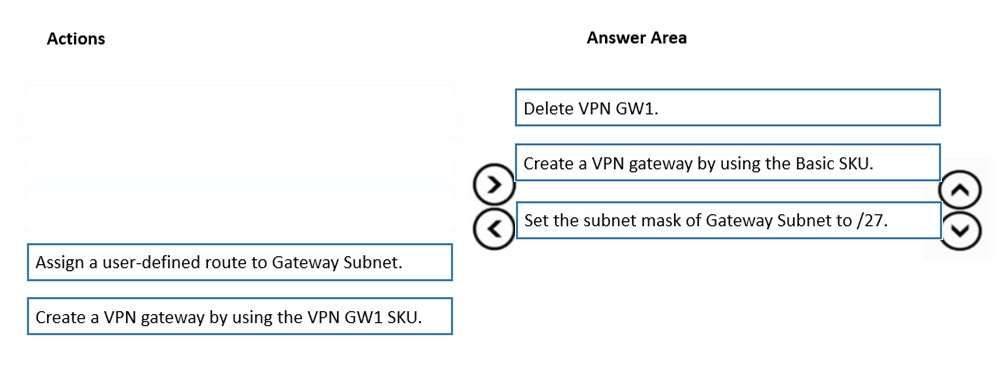

Step 1: Delete the VPN GW1.
The existing VPN GW1 GatewaySubnet is too small with /29.

Users must be able to connect to Vnet1 by using a Point-to-Site (P2S) VPN when working remotely.
Connections must be authenticated by Microsoft Entra ID.
Litware wants to minimize costs whenever possible, as long as all other requirements are met.



Step 2: Create a VPN gateway by using Basic SKU.
Basic SKU is good enough.

Note
The Basic gateway SKU does not support IKEv2 or RADIUS authentication. If you plan on having Mac clients connect to your virtual network, do not use the Basic SKU.

Step 3: Set the subnet mask of Gateway Subnet to /27.
When you create the gateway subnet, you specify the number of IP addresses that the subnet contains. The number of IP addresses needed depends on the VPN gateway configuration that you want to create. Some configurations require more IP addresses than others. We [Microsoft] recommend that you create a gateway subnet that uses a /27 or /28.
It's best to specify /27 or larger (/26,/25 etc.). This allows enough IP addresses for future changes, such as adding an ExpressRoute gateway.


Reference:

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-point-to-site-resource-manager-portal



View Related Case Study

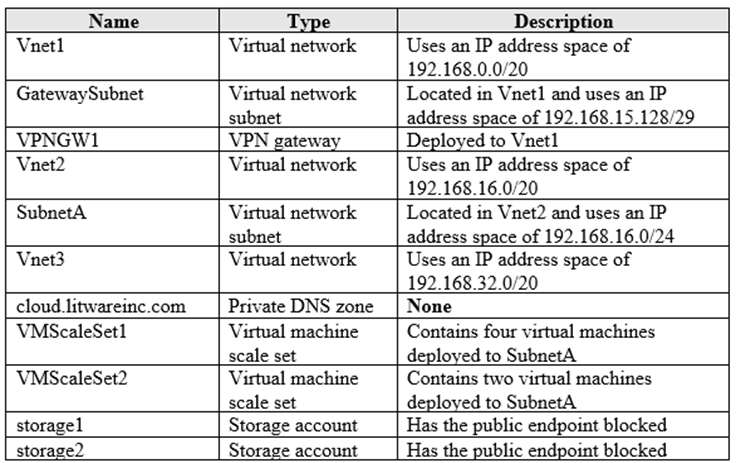

You need to connect Vnet2 and Vnet3. The solution must meet the virtual networking requirements and the business requirements.

Which two actions should you include in the solution? Each correct answer presents part of the solution.

Note: Each correct selection is worth one point.

  1. On the peering from Vnet1, select Allow gateway transit.
  2. On the peerings from Vnet2 and Vnet3, select Use remote gateways.
  3. On the peerings from Vnet2 and Vnet3, select Allow gateway transit.
  4. On the peering from Vnet1, select Use remote gateways.
  5. On the peering from Vnet1, select Allow forwarded traffic.

Answer(s): A,B

Explanation:

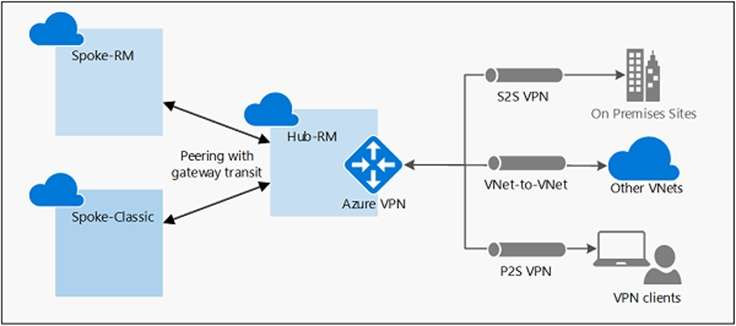

Virtual network peering seamlessly connects two Azure virtual networks, merging the two virtual networks into one for connectivity purposes. Gateway transit is a peering property that lets one virtual network use the VPN gateway in the peered virtual network for cross-premises or VNet-to-VNet connectivity. The following diagram shows how gateway transit works with virtual network peering.



In the diagram, gateway transit allows the peered virtual networks to use the Azure VPN gateway in Hub-RM.
Connectivity available on the VPN gateway, including S2S, P2S, and VNet-to-VNet connections,


Reference:

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-peering-gateway-transit



View Related Case Study

HOTSPOT (Drag and Drop is not supported)

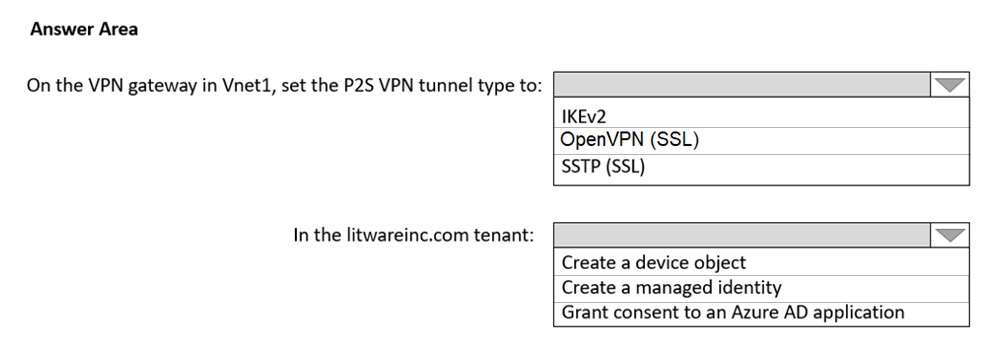

You need to implement a P2S VPN for the users in the branch office. The solution must meet the hybrid networking requirements.

What should you do? To answer, select the appropriate options in the answer area.

Note: Each correct selection is worth one point.

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:


Reference:

https://docs.microsoft.com/en-us/azure/vpn-gateway/openvpn-azure-ad-tenant



View Related Case Study

HOTSPOT (Drag and Drop is not supported)

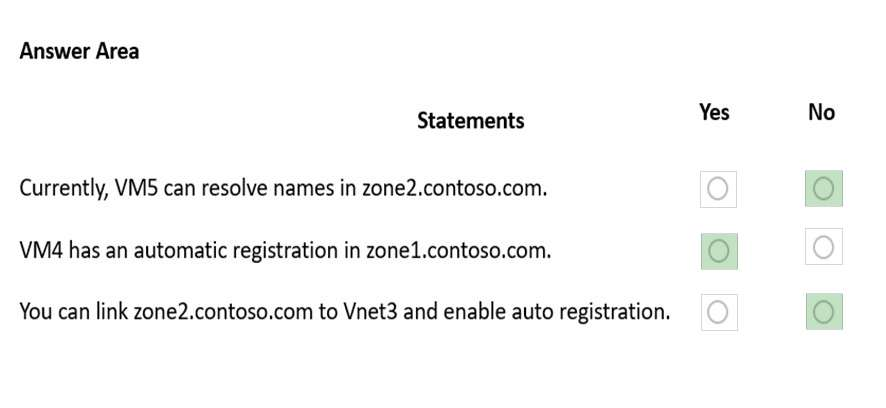

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

Note: Each correct selection is worth one point.

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Box 1: No

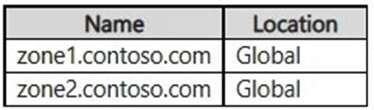

Zone2.contoso.com is not linked to any virtual networks. Therefore, no VMs are able to resolve names in the zone.

Box 2: Yes
VM4 is in VNet3. Zone1.contoso.com has a link to VNet3 and auto-registration is enabled on the link.

Box3: No
VNet3 is linked to zone1.contoso.com and auto-registration is enabled on the link. A virtual network can only have one registration zone. You can link zone2.contoso.com to VNet3 but you won't be able to enable auto- registration on the link.



View Related Case Study

HOTSPOT (Drag and Drop is not supported)

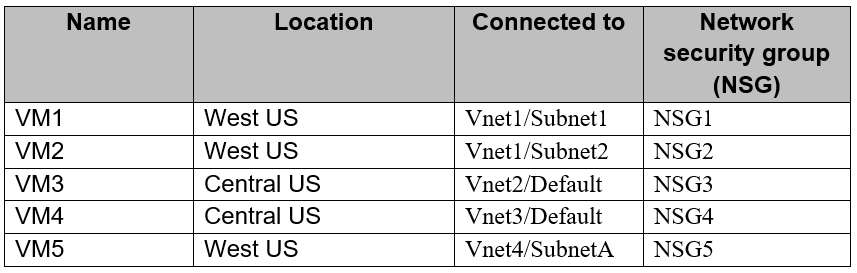

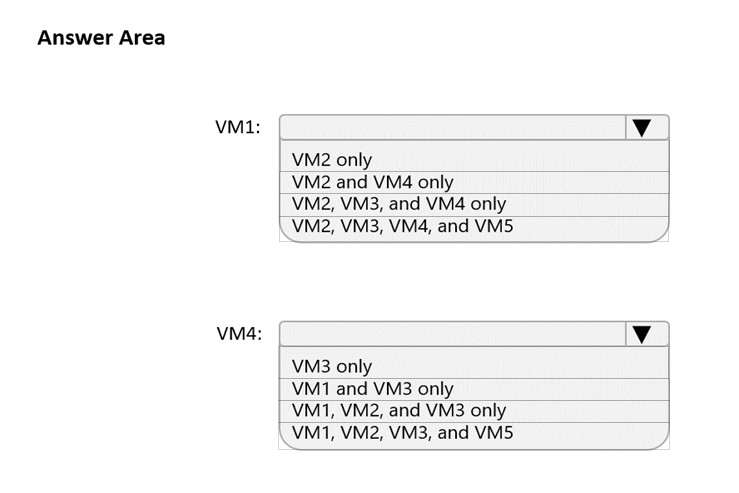

Which virtual machines can VM1 and VM4 ping successfully? To answer, select the appropriate options in the answer area.

Note: Each correct selection is worth one point.

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

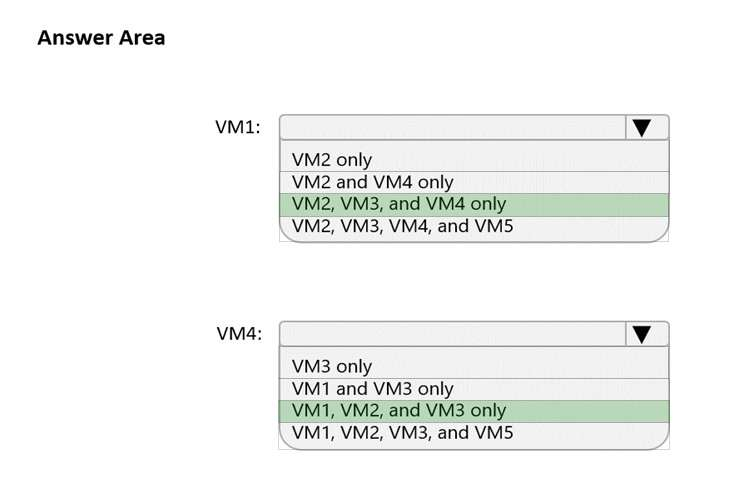

Box 1: VM2, VM3 and VM4.
VM1 is in VNet1/Subnet1. VNet1 is peered with VNet2 and VNet3. There are no NSGs blocking outbound ICMP from VNet1. There are no NSGs blocking inbound ICMP to VNet1/Subnet2, VNet2 or VNet3. Therefore, VM1 can ping VM2 in VNet1/Subnet2, VM3 in VNet2 and VM4 in VNet3.

Box 2:

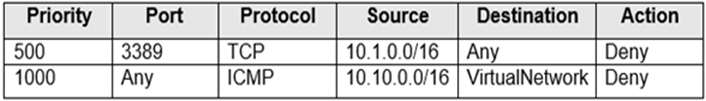

VM4 is in VNet3. VNet3 is peered with VNet1 and VNet2. There are no NSGs blocking outbound ICMP from VNet3. There are no NSGs blocking inbound ICMP to VNet1/Subnet1, VNet1/Subnet2 or VNet2 from VNet3 (NSG10 blocks inbound ICMP from VNet4 but not from VNet3). Therefore, VM4 can ping VM1 in VNet1/ Subnet1, VM2 in VNet1/Subnet2 and VM3 in VNet2.
