Nokia 4A0-C01 Exam
Nokia NRS II Composite Exam (Page 12 )

Updated On: 19-Jan-2026
Page 12 of 170
PDF with 852 Questions

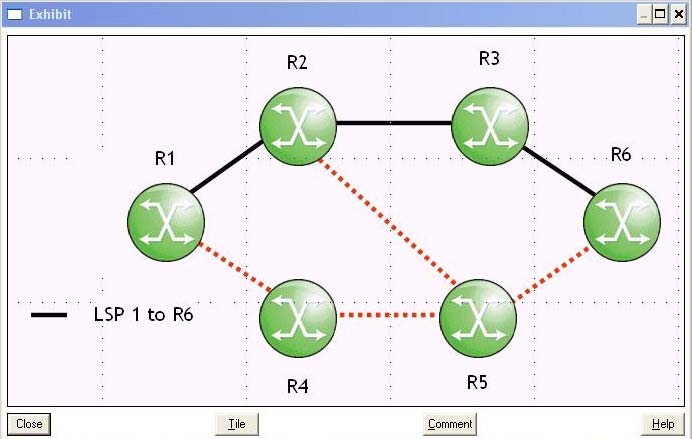

Click on the exhibit.

RSVP state for LSP 1 has timed out on router R3. Which of the following actions will router R3 initiate to clear the RSVP session?

  1. Send a RESV Tear message toward router R6.
  2. Send a RESV Tear message toward router R1.
  3. Send a RESV Error message toward router R6.
  4. Send a RESV Error message toward router R1.

Answer(s): B



Which of the following regarding per-platform label space is TRUE?

  1. A separate label is used for each interface on which the FEC is advertised.
  2. A single label is assigned to a FEC for all interfaces on the same router,
  3. It is typically used when the device has ATM or Frame Relay interfaces.
  4. It uses more label resources than a per-interface label space.

Answer(s): B



How many SAPs can be configured on a port configured with NULL encapsulation?

  1. 1
  2. 4096
  3. None. This encapsulation is not supported.
  4. The number is limited only by the capacity of the router

Answer(s): A



Which of the following about RSVP-TE summary refresh messages is TRUE?

  1. They list the RSVP session names that the router is refreshing,
  2. They list the Message IDs that the router is refreshing,
  3. They list the Tunnel IDs that the router is refreshing.
  4. They list the LSP I Ds that the router is refreshing.

Answer(s): B



Which of the following regarding the location of an MPLS label is FALSE?

  1. The MPLS label value may be carried in an ATM header.
  2. The MPLS label value may be carried in a shim header.
  3. The MPLS label value may be carried in an OSPF header.
  4. The MPLS label value may be carried in a Frame Relay header.

Answer(s): C



Viewing page 12 of 170
Viewing questions 56 - 60 out of 852 questions
