Nokia 4A0-C01 Exam
Nokia NRS II Composite Exam (Page 5 )

Updated On: 19-Jan-2026
Page 5 of 170
PDF with 852 Questions

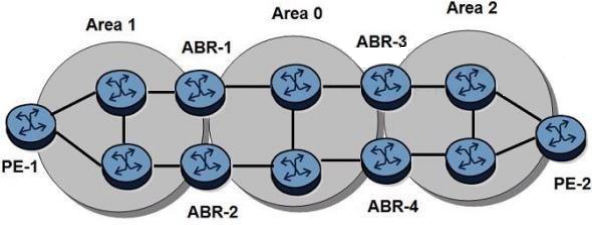

Click on the exhibit.

An LDP-over-RSVP tunnel is established between PE-1 and PE-2. Which of the following is NOT required to protect the LDP-over-RSVP tunnel?

  1. PE-1 requires T-LDP sessions to both ABR-1 and ABR-2.
  2. PE-1 requires a full mesh of RSVP-TE LSPs to all routers in area 1.
  3. ABR-1 requires T-LDP sessions to all ABRs in area 0.
  4. PE-1 requires fast reroute enabled on all RSVP-TE LSPs.

Answer(s): B



Which of the following about Type 10 opaque LSAs is TRUE?

  1. Type 10 opaque LSAs are supported by IS-IS.
  2. Type 10 opaque LSAs are flooded to all areas of the routing domain.
  3. Type 10 opaque LSAs are stored in an LSDB.
  4. Type 10 opaque LSAs are used for traffic engineering support.

Answer(s): D

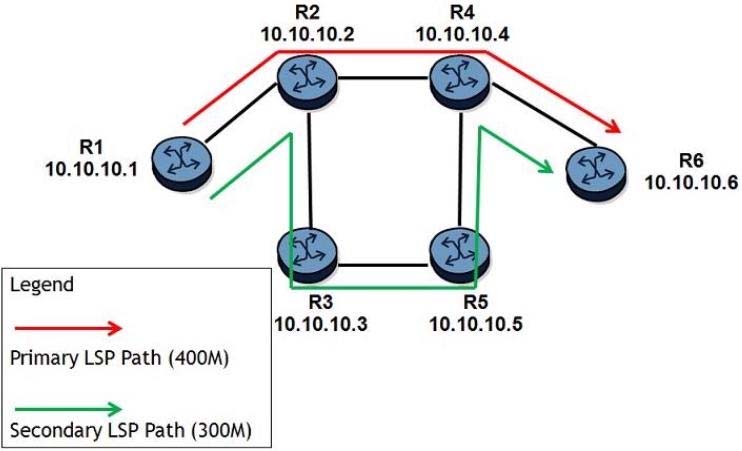

Click on the exhibit.

All links have 1Gbps unreserved bandwidth initially and Shared Explicit reservation style is used. After the LSP's primary and standby secondary paths are signaled, how much unreserved bandwidth is left on the links?

  1. R1-R2 will have 300Mbps left and R2-R4 will have 400Mbps left.
  2. R1-R2 will have 400Mbps left and R2-R4 will have 400Mbps left.
  3. R1-R2 will have 600Mbps left and R2-R4 will have 600Mbps left.
  4. R1-R2 will have 300Mbps left and R2-R4 will have 600Mbps left.

Answer(s): C

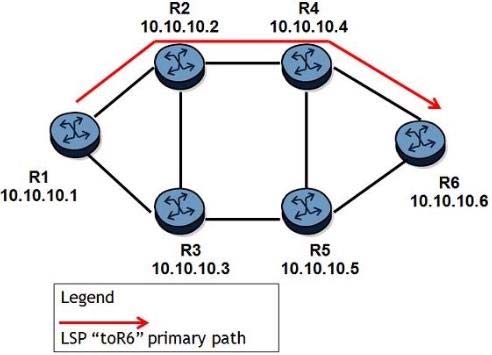

Click on the exhibit.

Which of the following CANNOT be used to ensure the LSP toR6" will follow the path R1-R2-R4-R6?

  1. Admin groups
  2. Hop-limit
  3. Strict hops
  4. TE-Metric

Answer(s): B



Which of the following describes a service on the Alcatel-Lucent 7750 SR?

  1. A logical entity that provides a uniform, end-to-end configuration, management and billing model for provisioning either Internet or VPN connectivity.
  2. Provides connectivity between customer access points.
  3. A service that can either be local or distributed.
  4. All of the above

Answer(s): D



Viewing page 5 of 170
Viewing questions 21 - 25 out of 852 questions
