What is the primary determining factor of the fundamental frequency for pulsed wave transducers?
Answer(s): A
The fundamental frequency of a pulsed wave transducer is primarily determined by the thickness of the piezoelectric element. The frequency is inversely proportional to the thickness of the element thinner elements produce higher frequencies, while thicker elements produce lower frequencies. This relationship is derived from the formula = 2 f=2dv, where f is the frequency, v is the propagation speed of sound in the piezoelectric material, and d is the thickness of the element.
ARDMS Sonography Principles and Instrumentation, Chapter on Transducer Technology.
Which feature is a characteristic of continuous wave Doppler?
Answer(s): D
Continuous wave Doppler uses two crystals one for transmitting and one for receiving ultrasound waves continuously. This allows for the measurement of high velocities without aliasing, a common limitation in pulsed wave Doppler. However, continuous wave Doppler does not have range specificity, meaning it cannot precisely determine the depth from which the Doppler signal is returning.
ARDMS Sonography Principles and Instrumentation, Chapter on Doppler Ultrasound.
If the pulse repetition frequency is 3 kHz, what is the maximum Doppler shift that can be detected without aliasing?
The maximum Doppler shift that can be detected without aliasing is determined by the Nyquist limit, which is half of the pulse repetition frequency (PRF). If the PRF is 3 kHz, the Nyquist limit is 3 2=1.5 23kHz=1.5kHz. Therefore, the maximum Doppler shift that can be detected without aliasing is 1.5 kHz. Aliasing occurs when the Doppler shift exceeds this limit, causing an incorrect representation of the velocity.
ARDMS Sonography Principles and Instrumentation, Chapter on Doppler Principles.
What is the result of increasing the wall filter setting during Doppler sampling?
Comprehensive and Detailed Explanation From Exact Extract:The wall filter in Doppler ultrasound is designed to eliminate low-frequency signals, typically associated with motion artifacts such as vessel wall or tissue motion. These low-frequency signals are not part of the desired blood flow signal and can interfere with accurate Doppler display.When the wall filter setting is increased, it removes these low-frequency signals from the Doppler spectrum. However, increasing the wall filter too much can also eliminate true low-velocity flow information, leading to a loss of clinically relevant data.This principle is described in official sonography Principles and Instrumentation references:"Increasing the wall filter will reduce the display of low-frequency Doppler shifts, which are typically associated with slow-moving structures. These low-frequency signals can represent either slow blood flow or tissue motion artifacts."Therefore, the correct answer is D: Reduced display of low-frequency shifts.

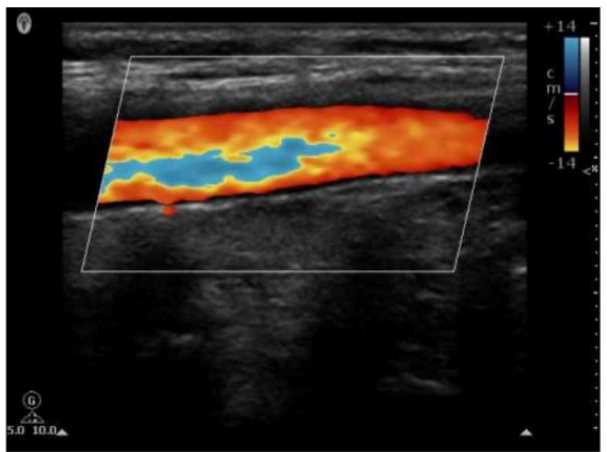

Which pulsed-wave Doppler adjustment would be appropriate to correct the aliasing seen in this image?
Answer(s): C
Comprehensive and Detailed Explanation From Exact Extract:Aliasing occurs in pulsed-wave Doppler imaging when the Doppler shift frequency exceeds the Nyquist limit (which is half the pulse repetition frequency, PRF). This results in a wrap-around of the Doppler signal, which appears as a reversal of flow direction (aliasing artifact).According to standard Principles and Instrumentation references in sonography:"To eliminate aliasing, the Doppler PRF (scale) should be increased. Increasing the PRF raises the Nyquist limit and therefore allows for higher measurable velocities without aliasing."The correct adjustment to correct this aliasing artifact is C: Increase the Doppler pulse repetition frequency. This effectively increases the Nyquist limit and resolves the wrap-around aliasing appearance.Options A and B (adjusting the spectral Doppler gain) would only change the appearance of the Doppler waveform (i.e., its amplitude and brightness) but would not affect aliasing. Option D (decreasing the PRF) would actually worsen the aliasing by lowering the Nyquist limit.Therefore, the correct choice is to increase the Doppler PRF.
