Free Cisco® 200-301 Exam Braindumps (page: 83)

Page 52 of 350
PDF with 1395 Questions

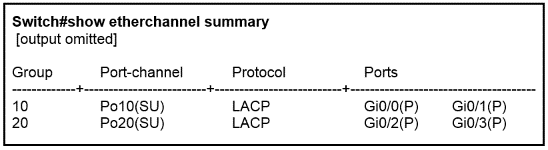

Refer to the exhibit. Which two commands when used together create port channel 10? (Choose two.)

  1. int range g0/0-1 channel-group 10 mode active
  2. int range g0/0-1 channel-group 10 mode desirable
  3. int range g0/0-1 channel-group 10 mode passive
  4. int range g0/0-1 channel-group 10 mode auto
  5. int range g0/0-1 channel-group 10 mode on

Answer(s): A,C



Refer to the exhibit. An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the GigabitEthernet 3/1/4 port on a switch?

  1. The phone and a workstation that is connected to the phone do not have VLAN connectivity.
  2. The phone sends and receives data in VLAN 50, but a workstation connected to the phone sends and receives data in VLAN 1.
  3. The phone sends and receives data in VLAN 50, but a workstation connected to the phone has no VLAN connectivity.
  4. The phone and a workstation that is connected to the phone send and receive data in VLAN 50.

Answer(s): B

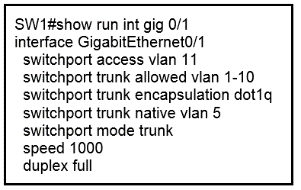

Refer to the exhibit. Which action is expected from SW1 when the untagged frame is received on the GigabitEthernet0/1 interface?

  1. The frame is processed in VLAN 1
  2. The frame is processed in VLAN 11
  3. The frame is processed in VLAN 5
  4. The frame is dropped

Answer(s): C



Which command is used to enable LLDP globally on a Cisco IOS ISR?

  1. lldp run
  2. lldp enable
  3. lldp transmit
  4. cdp run
  5. cdp enable

Answer(s): A

Explanation:

Link Layer Discovery Protocol (LLDP) is an industry standard protocol that allows devices to advertise, and discover connected devices, and there capabilities (same as CDP of Cisco). To enable it on Cisco devices, we have to use this command under global configuration mode: Sw(config)# lldp run
