Free 300-410 Exam Braindumps
Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) Questions 9–16 (page: 3)

Updated On: 9-Jul-2026
Page 3 of 81
PDF with 640 Questions

What is a prerequisite for configuring BFD?

  1. Jumbo frame support must be configured on the router that is using BFD.
  2. All routers in the path between two BFD endpoints must have BFD enabled.
  3. Cisco Express Forwarding must be enabled on all participating BFD endpoints.
  4. To use BFD with BGP, the timers 3 9 command must first be configured in the BGP routing process.

Answer(s): C


Reference:

https://www.cisco.com/c/en/us/td/docs/ios/12_0s/feature/guide/fs_bfd.html#wp1043332



DRAG DROP (Drag and Drop is not supported)

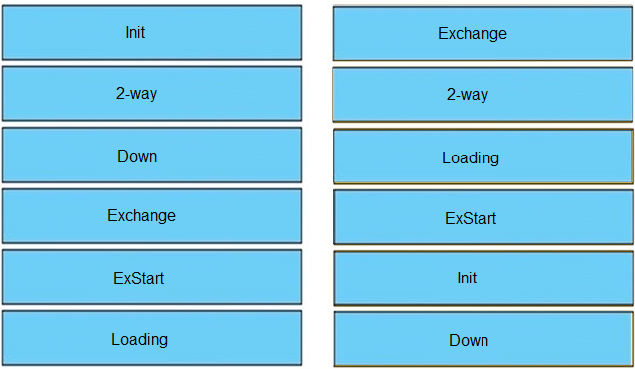

Drag and drop the OSPF adjacency states from the left onto the correct descriptions on the right.
Select and Place:

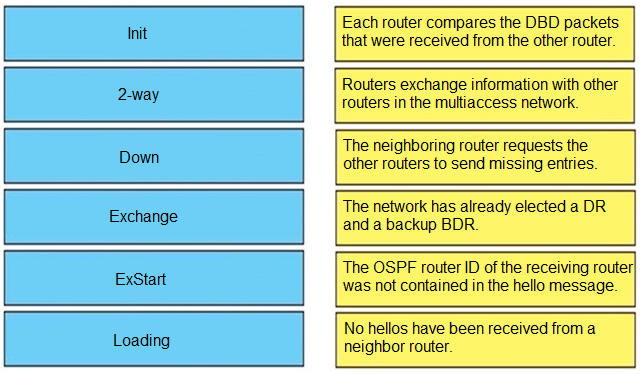

  1. See Explanation section for answer.

Answer(s): A

Explanation:


Reference:

https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13685-13.html

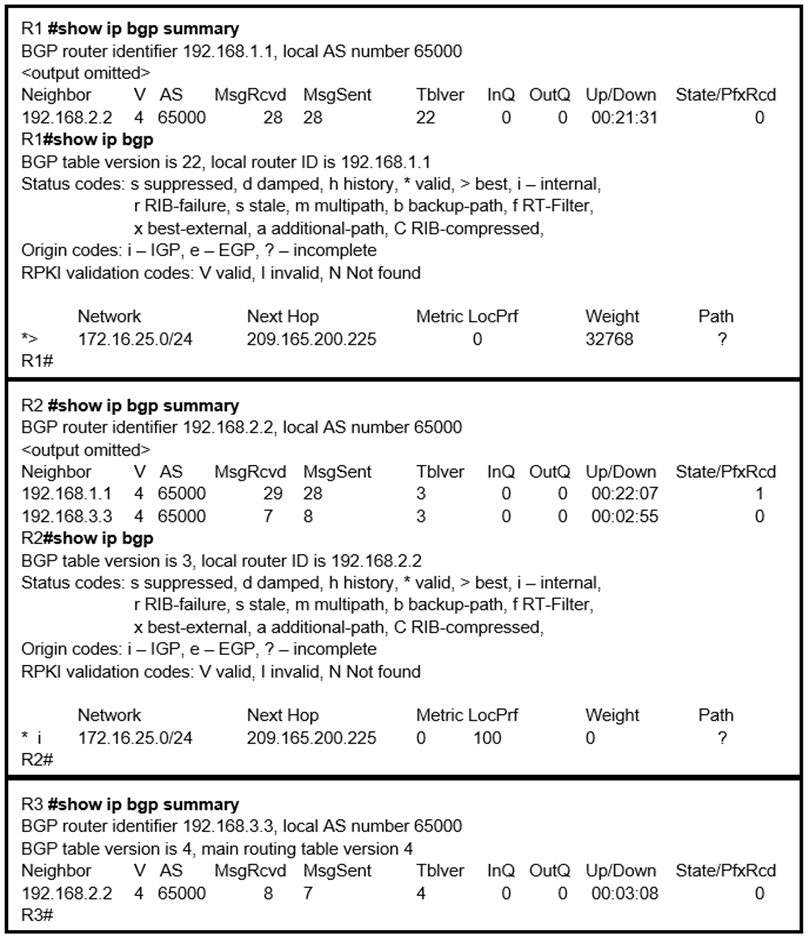

Refer to the exhibit. R2 is a route reflector, and R1 and R3 are route reflector clients. The route reflector learns the route to 172.16.25.0/24 from R1, but it does not advertise to R3. What is the reason the route is not advertised?

  1. R2 does not have a route to the next hop, so R2 does not advertise the prefix to other clients.
  2. Route reflector setup requires full IBGP mesh between the routers.
  3. In route reflector setup, only classful prefixes are advertised to other clients.
  4. In route reflector setups, prefixes are not advertised from one client to another.

Answer(s): A

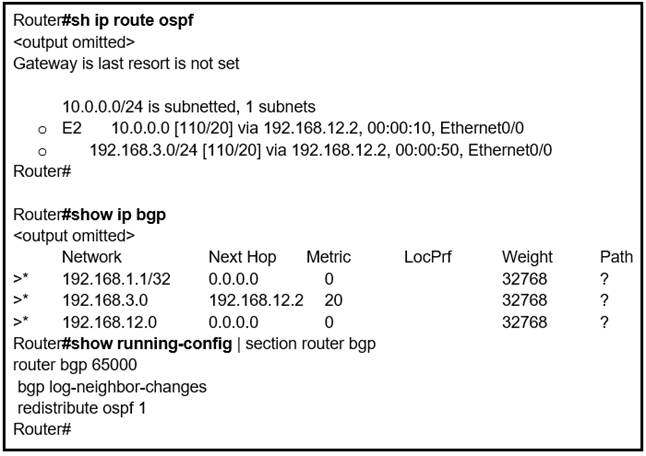

Refer to the exhibit. An engineer is trying to redistribute OSPF to BGP, but not all of the routes are redistributed. What is the reason for this issue?

  1. By default, only internal routes and external type 1 routes are redistributed into BGP
  2. Only classful networks are redistributed from OSPF to BGP
  3. BGP convergence is slow, so the route will eventually be present in the BGP table
  4. By default, only internal OSPF routes are redistributed into BGP

Answer(s): D

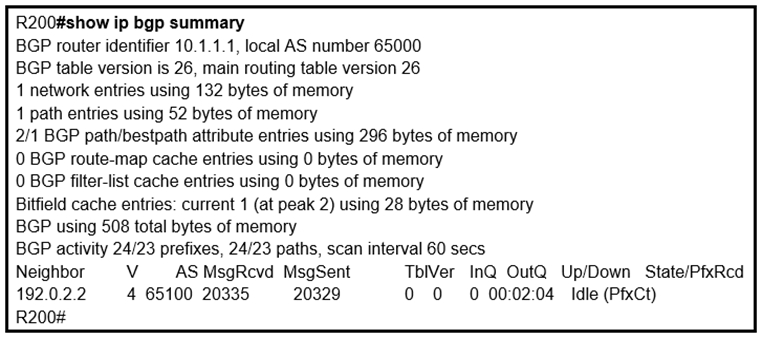

Refer to the exhibit. In which circumstance does the BGP neighbor remain in the idle condition?

  1. if prefixes are not received from the BGP peer
  2. if prefixes reach the maximum limit
  3. if a prefix list is applied on the inbound direction
  4. if prefixes exceed the maximum limit

Answer(s): D



Which attribute eliminates LFAs that belong to protected paths in situations where links in a network are connected through a common fiber?

  1. shared risk link group-disjoint
  2. linecard-disjoint
  3. lowest-repair-path-metric
  4. interface-disjoint

Answer(s): A


Reference:

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_eigrp/configuration/xe-3s/asr1000/ire-xe-3s-asr1000/ire-ipfrr.html#:~:text=Shared%20Risk%20Link,group%20share%20risks.

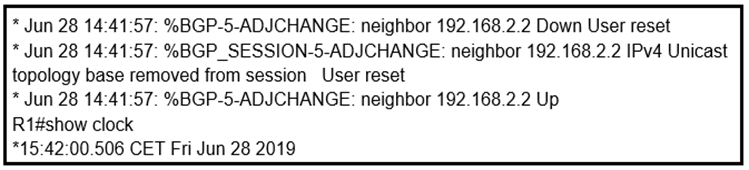

Refer to the exhibit. An engineer is troubleshooting BGP on a device but discovers that the clock on the device does not correspond to the time stamp of the log entries. Which action ensures consistency between the two times?

  1. Configure the service timestamps log uptime command in global configuration mode.
  2. Configure the logging clock synchronize command in global configuration mode.
  3. Configure the service timestamps log datetimelocaltime command in global configuration mode.
  4. Make sure that the clock on the device is synchronized with an NTP server.

Answer(s): C

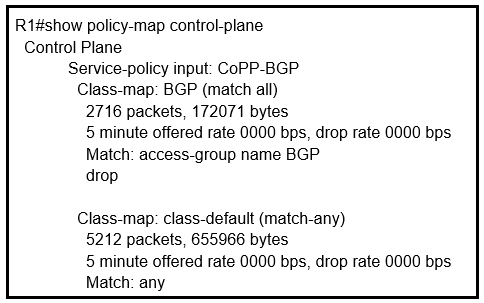

Refer to the exhibit. What is the result of applying this configuration?

  1. The router can form BGP neighborships with any other device.
  2. The router cannot form BGP neighborships with any other device.
  3. The router cannot form BGP neighborships with any device that is matched by the access list named “BGP”.
  4. The router can form BGP neighborships with any device that is matched by the access list named “BGP”.

Answer(s): C



  PDF
Viewing page 3 of 81
Viewing questions 11 - 15 out of 640 questions
