QUESTION: 33

A DNS server with IP address 192.168.1.1 is deployed in a data center. A network engineer must configure a Cisco UCS Fabric Interconnect to use this DNS.
Which configuration should be applied?

ficl-mgmt-A# scope fabric-interconnect a ficl-mgmt-A /fabric-interconnect # set name 192.168.1.1 ficl-mgmt-A /fabric-interconnect # scope system ficl-mgmt-A /system # commit-buffer
ficl-mgmt-A# scope system ficl-mgmt-A /system # create dns 192.168.1.1 ficl-mgmt-A /system* # commit-buffer
ficl-mgmt-A# scope fabric-interconnect a ficl-mgmt-A /fabric-interconnect # set name 192.168.1.1 ficl-mgmt-A /fabric-interconnect* # commit-buffer
ficl-mgmt-A# scope system ficl-mgmt-A /system # scope services ficl-mgmt-A /system/services # create dns 192.168.1.1 ficl-mgmt-A /system/services* # commit-buffer

Answer(s): D

Explanation:

Reference:

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/1-3-1/b_CLI_Config_Guide_1_3_1/
CLI_Config_Guide_1_3_1_chapter11.pdf

Reveal Solution Next Question

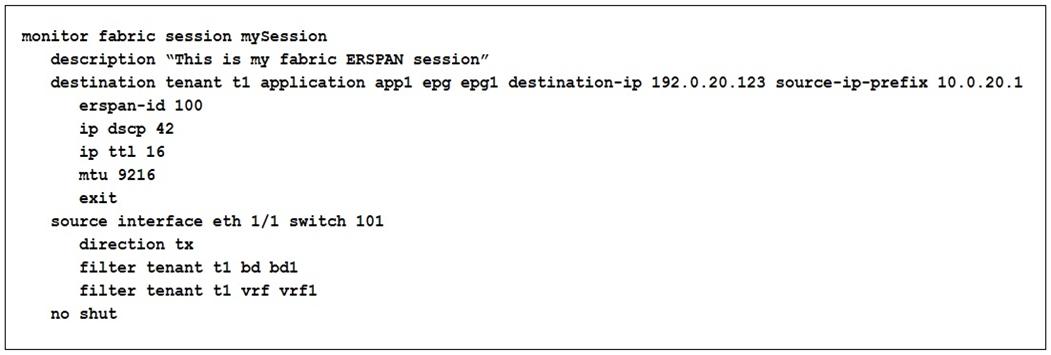

Refer to the exhibit. An engineer needs to implement a monitoring session that should meet the following requirements:
-Monitor traffic from leaf to leaf switches on a Cisco ACI network
-Support filtering traffic from Bridge Domain or VRF
Which configuration must be added to meet these requirements?

interface eth 1/2 leaf 101
application epg epg1 app1
interface eth 1/2 switch 101
application app1 epg epg1

Answer(s): D

Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/troubleshooting/b_APIC_Troubleshooting/ b_APIC_Troubleshooting_chapter_0110.html

Reveal Solution Next Question

QUESTION: 35

An engineer is implementing OTV on a transport that supports multicast. The solution needs to meet the following requirements:
-Establish adjacency to the remote peer by using multicast.
Enable OTV advertisements for VLAN 100 to the other site.
Which two commands should be configured to meet these requirements? (Choose two.)

otv extend-vlan 100
otv site-vlan 100
otv use-adjacency-server 172.27.255.94
otv data-group 232.2.2.0/28
otv control-group 232.1.1.1

Answer(s): A,E

Explanation:

Reference:

https://www.ciscopress.com/articles/article.asp?p=2999385&seqNum=2

Reveal Solution Next Question

QUESTION: 36

An engineer needs to create a new user in the local user database on Cisco UCS Fabric Interconnect. The user needs permissions to change the following configuration inside UCS Manager version 3.1:
-vNIC and vHBA profiles
-Fan speed and power redundancy profile of UCS Manager
Which two roles must be assigned to a user to achieve this goal? (Choose two.)

facility-manager
server-equipment
operations
server-profile
server-compute

Answer(s): A,D

Explanation:

Reference:

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Admin-Management/3-1/ b_Cisco_UCS_Admin_Mgmt_Guide_3_1/b_UCSM_Admin_Mgmt_Guide_chapter_01.html

Reveal Solution Next Question
