Free Cisco® 350-601 Exam Braindumps (page: 20)

Page 20 of 132
PDF with 549 Questions

An engineer must perform an initial configuration of VXLAN Tunnel End-Point functionality on the Cisco Nexus 9000 Series platform. All the necessary features are already enabled on the switch. Which configuration set must be used to accomplish this goal?

  1. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface VLAN10 NX9K(config-if)# ip unnumbered loopback0 NX9K(config)# interface nve1 NX9K(contig-if-nve)# source-interface loopback0
  2. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface overlay0 NX9K(config-if-overlay)# source-interface loopback0 NX9K(config)# interface VLAN10 NX9K(contig-if-nve)# source-interface loopback0
  3. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface tunnel1 NX9K(config-if)# tunnel source loopback0 NX9K(config)# interface ethernet1/1 NX9K(contig-if)# ip unnumbered loopback0
  4. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface nve1 NX9K(config-if-nve)# source-interface loopback0 NX9K(config)# interface ethernet1/1 NX9K(contig-if)# ip unnumbered loopback0

Answer(s): D

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/vxlan/configuration/guide/b_Cisco_Nexus_9000_Series_NX-
OS_VXLAN_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x_chapter_011.html



An engineer must perform a software upgrade on a production Cisco Nexus 7000 Series Switch. Before the upgrade activity, the requirement is for all ports to be shut down and routing protocols to terminate gracefully. Which feature must be used to meet these requirements?

  1. Switch Profile
  2. Service Profile Template
  3. Maintenance Mode Profile
  4. Configuration Profile

Answer(s): C

Explanation:

You can use maintenance mode to isolate a switch from the network in order to perform debugging or an upgrade. When switch maintenance is complete, you can return the switch to normal mode.
When you place the switch in maintenance mode, all protocols are gracefully brought down and all physical ports are shut down. When normal mode is restored, all the protocols and ports are brought back up.


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus6000/sw/system_management/7x/b_6k_System_Mgmt_Config_7x/ configuring___maintenance_mode.pdf



DRAG DROP (Drag and Drop is not supported)

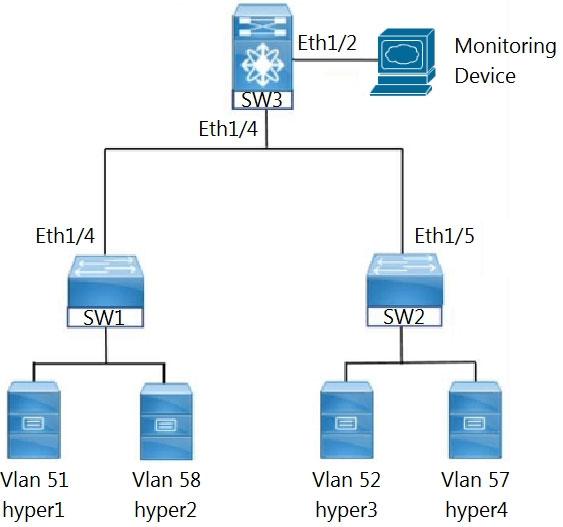

Refer to the exhibit. An engineer must monitor the Ethernet port and the corresponding VLAN traffic for the hyper4 device. The SW3 device is a Cisco Nexus 7000

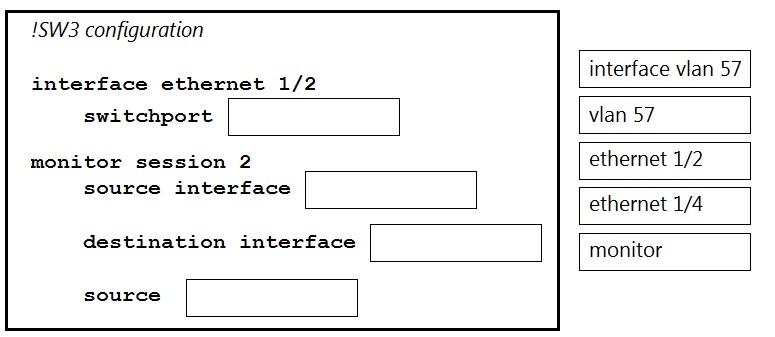

Series Switch. Drag and drop the code snippets from the right into the boxes in the configuration to meet these requirements.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



DRAG DROP (Drag and Drop is not supported)

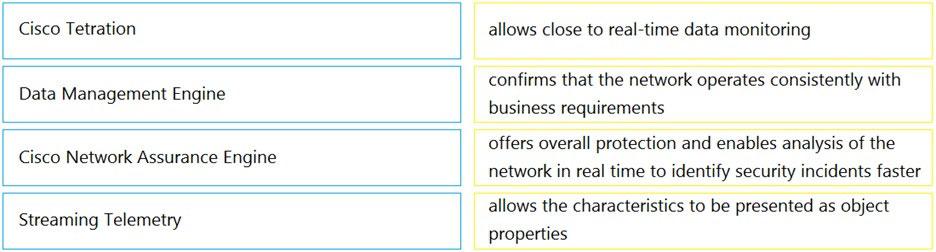

Drag and drop the network assurance concepts from the left onto the corresponding benefits on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Viewing page 20 of 132
Viewing questions 77 - 80 out of 549 questions
