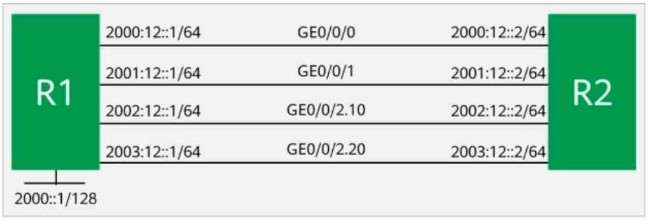

R1 and R2 use directly connected interfaces to establish an EBGP peer relationship. R1 imports 2000:: 1/128 to BGP. By default, which of the following is the next hop of the route from R2 to 2000:: 1/128?
Answer(s): D
In BGP, when a route is advertised between EBGP peers, the next hop of the route is the IP address of the interface used to establish the BGP session. Given that R1 and R2 have an EBGP relationship, the next hop will be the IP address of the interface on R1 that is directly connected to R2, which corresponds to the interface used for the EBGP session.Looking at the diagram: The interfaces between R1 and R2 are GE0/0/0, GE0/0/1, GE0/0/2.10, and GE0/0/2.20. The addresses on the interfaces are as follows:-GE0/0/0: 2000:12::1/64 (R1) <-> 2000:12::2/64 (R2)-GE0/0/1: 2001:12::1/64 (R1) <-> 2001:12::2/64 (R2)-GE0/0/2.10: 2002:12::1/64 (R1) <-> 2002:12::2/64 (R2)-GE0/0/2.20: 2003:12::1/64 (R1) <-> 2003:12::2/64 (R2)Since no specific interface is indicated, the assumption is that the EBGP session is established over the first available interface, which is GE0/0/0. The IP address of R1 on this interface is 2000:12::1.

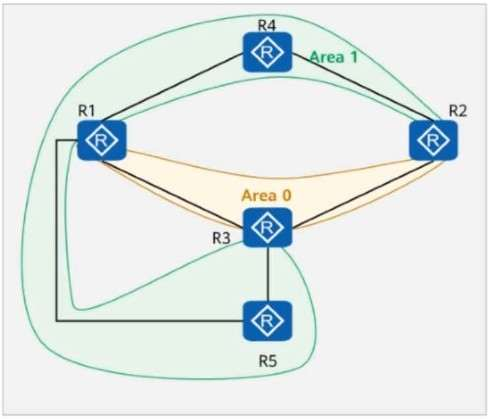

On the OSPFv3 network shown in the figure, area 1 is a common area. Which of the following statements are true? (Choose all that apply.)
Answer(s): A
R1, R2, and R3 are in the same OSPF Area 0 (the backbone area). OSPF routers within the same area have identical Link-State Databases (LSDBs) because they share and synchronize their LSAs (Link-State Advertisements).

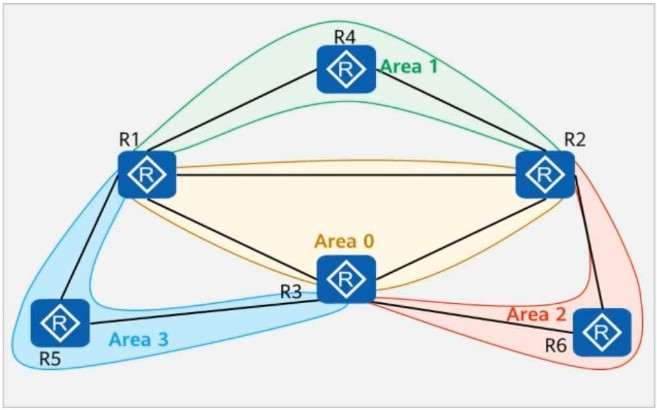

On the OSPFv3 network shown in the figure, area 1 is a stub area, area 2 is a common area, and area 3 is an NSSA. Which of the following LSAs is displayed only in area 2?
AS-External-LSAs are used to advertise routes from outside the OSPF autonomous system. However, AS-External-LSAs are not allowed in stub areas (Area 1) and NSSAs (Area 3). Therefore, they would only be seen in Area 2, which is a common area.
To support the processing and calculation of IPv6 routes, IS-IS adds a new NLPID to TLV 129. The NLPID is an 8-bit field that identifies network layer protocol packets. Which of the following is the NLPID of IPv6?
The NLPID (Network Layer Protocol Identifier) is an 8-bit field used in IS-IS (Intermediate System to Intermediate System) to identify the type of network layer protocol being used. For IPv6, the NLPID value is 142.

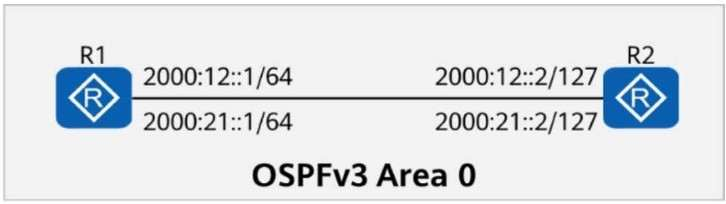

On the OSPFv3 network shown in the figure, each interface of R1 and R2 has two IPv6 addresses. Although the IPv6 address prefixes of R1 and R2 are different, they can still be used to establish an OSPFv3 neighbor relationship. If R2 is the DR, the Intra-Area-Prefix-LSA generated by R2 contains four prefixes.
In OSPFv3, each interface can have multiple IPv6 addresses, and these addresses are advertised using the Intra-Area-Prefix-LSA. In this case, both R1 and R2 have two IPv6 addresses on each interface (2000:12::/64 and 2000:21::/64 on R1, and 2000:12::/127 and 2000:21::/127 on R2). Since R2 is the Designated Router (DR) for this network, it will generate an Intra-Area-Prefix-LSA that contains all the prefixes associated with its interfaces. In this case, R2 has two prefixes on its interface with R1, and it will advertise both prefixes. Additionally, the Intra-Area-Prefix-LSA also includes the prefixes for the link-local addresses and any other relevant prefixes, bringing the total to four prefixes in the LSA generated by R2.

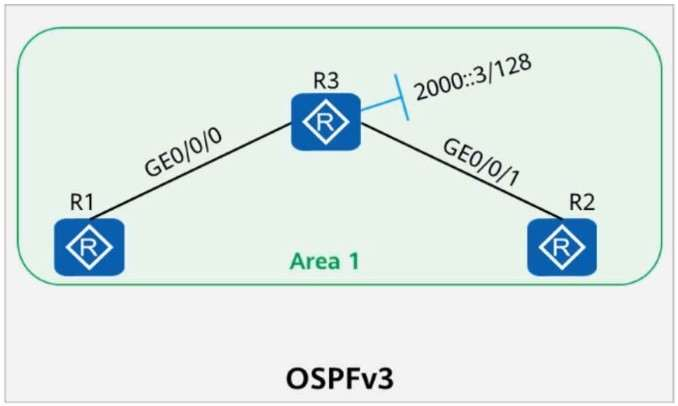

On the OSPFv3 network shown in the figure, the IPv6 address of Loopback0 on R3 is 2000::3/128, and OSPFv3 is enabled. Which of the following statements are true? (Choose all that apply.)
Answer(s): A,B,D
R2 definitely generates a Link-LSA. In OSPFv3, each router generates a Link-LSA (Type 8 LSA) to advertise its link-local IPv6 address and other interface-specific information. R2, like any other router in OSPFv3, will generate a Link-LSA for its connected interfaces.The Link-LSA generated by R2 does not exist in the LSDB of R1. Link-LSAs are unique to OSPFv3 and are not flooded beyond the router that generates them. They are only kept in the local LSDB of the router that generates them and are not propagated to other routers. Therefore, R1 will not have R2's Link-LSA in its LSDB.R3 definitely generates an Intra-Area-Prefix-LSA. Intra-Area-Prefix-LSAs (Type 9 LSAs) are used to advertise IPv6 prefixes associated with a specific router or network. R3 will generate an Intra-Area-Prefix-LSA to advertise its Loopback0 address (2000::3/128) and any other relevant prefixes for the area.
Which of the following TLVs is added to IS-IS to support multi-topology?
TLV 229 (Multi-Topology Identifier TLV) is specifically introduced to support IS-IS multi-topology (MT-IS-IS). This feature allows IS-IS to run multiple topologies for different network protocols or services, such as separate routing for IPv4 and IPv6 or for different classes of service.
If the display ospfv3 peer verbose command is run to check OSPFv3 neighbor information, the command output contains information such as the peer router ID, global unicast address of the peer interface, and neighbor status.
When the display ospfv3 peer verbose command is run, it provides detailed information about OSPFv3 neighbors, including the peer router ID, the global unicast address of the peer interface, and the neighbor status. This command helps in verifying the current state of OSPFv3 neighbors and their related details, making it a useful tool for troubleshooting OSPFv3 networks.
