Free Microsoft AZ-700 Exam Questions (page: 4)

Page 4 of 75
PDF with 369 Questions
View Related Case Study

Your company has an on-premises network and three Azure subscriptions named Subscription1,

Subscription2, and Subscription3 that are linked to the same Microsoft Entra tenant.

Each department at the company uses Azure resources that are connected to its own virtual network in the Azure subscription as shown in the following table.



All the resources in the subscriptions are in either the West US Azure region or the West US 2 Azure region.

You plan to connect all five virtual networks in the three Azure subscriptions to the on-premises network by using ExpressRoute.

What is the minimum number of ExpressRoute circuits required?

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5

Answer(s): A


Reference:

https://docs.microsoft.com/en-us/azure/expressroute/expressroute-introduction



View Related Case Study

Your company has offices in New York and Amsterdam. The company has an Azure subscription. Both offices connect to Azure by using a Site-to-Site VPN connection.

The office in Amsterdam uses resources in the North Europe Azure region. The office in New York uses resources in the East US Azure region.

You need to implement ExpressRoute circuits to connect each office to the nearest peering location. Once the ExpressRoute circuits are connected, the on-premises computers in the Amsterdam office must be able to connect to the on-premises servers in the New York office by using the ExpressRoute circuits.

Which ExpressRoute option should you use?

  1. ExpressRoute FastPath
  2. ExpressRoute Global Reach
  3. ExpressRoute Direct
  4. ExpressRoute Local

Answer(s): B


Reference:

https://docs.microsoft.com/en-us/azure/expressroute/expressroute-global-reach



View Related Case Study

HOTSPOT (Drag and Drop is not supported)

You have an Azure subscription that contains a single virtual network and a virtual network gateway.

You need to ensure that administrators can use Point-to-Site (P2S) VPN connections to access resources in the virtual network. The connections must be authenticated by Microsoft Entra ID.

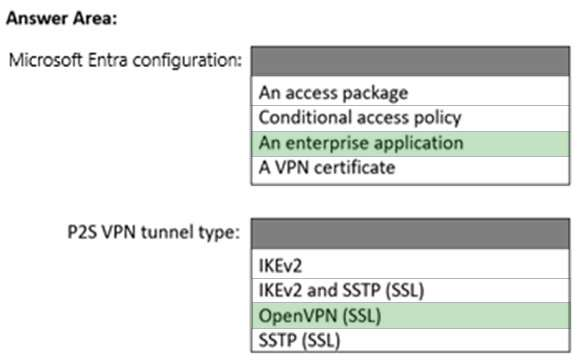

What should you configure? To answer, select the appropriate options in the answer area.

Note: Each correct selection is worth one point.

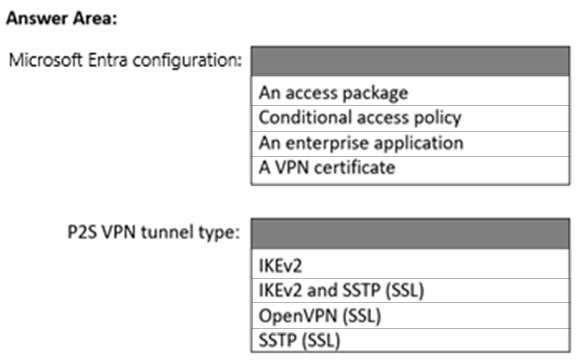

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:




Box 1: An enterprise application
Enable Microsoft Entra authentication on the VPN gateway:
1. Locate the Directory ID of the directory that you want to use for authentication. It's listed in the properties section of the Active Directory page.
2. Under your Microsoft Entra ID, in Enterprise applications, you see Azure VPN listed.
Copy the Directory ID.
3. Sign in to the Azure portal as a user that is assigned the Global administrator role.
4. Next, give admin consent. Copy and paste the URL that pertains to your deployment location in the address bar of your browser.
5. Select the Global Admin account if prompted.
6. Select Accept when prompted.

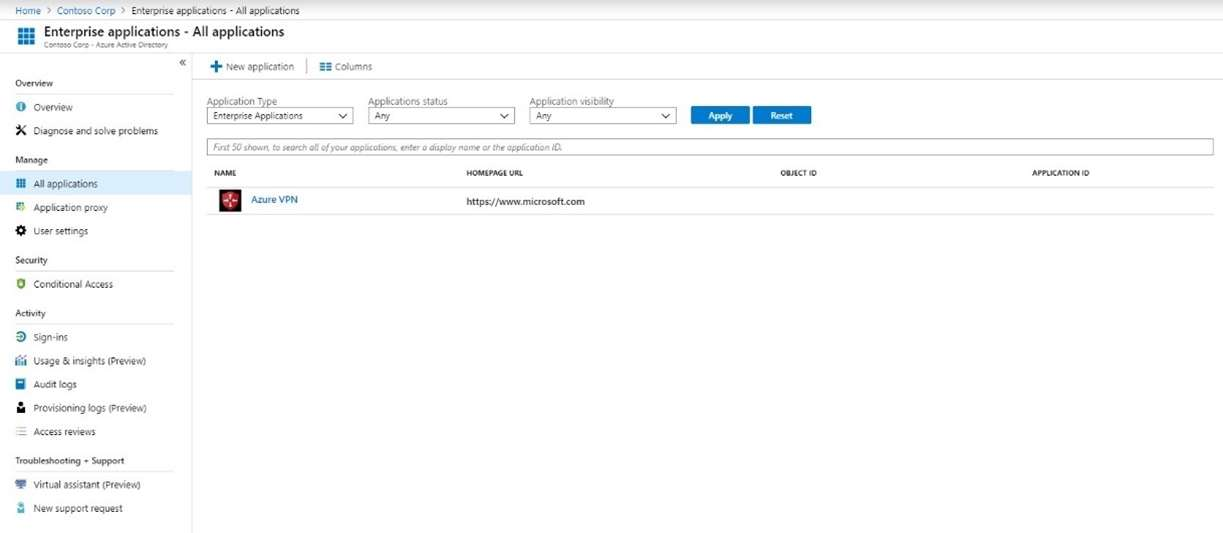

7. Under your Microsoft Entra ID, in Enterprise applications, you see Azure VPN listed.



Box 2: Open VPN (SSL)
When you connect to your VNet using Point-to-Site, you have a choice of which protocol to use. The protocol you use determines the authentication options that are available to you. If you want to use Microsoft Entra authentication, you can do so when using the OpenVPN protocol.


Reference:

https://docs.microsoft.com/en-us/azure/vpn-gateway/openvpn-azure-ad-tenant



View Related Case Study

HOTSPOT (Drag and Drop is not supported)

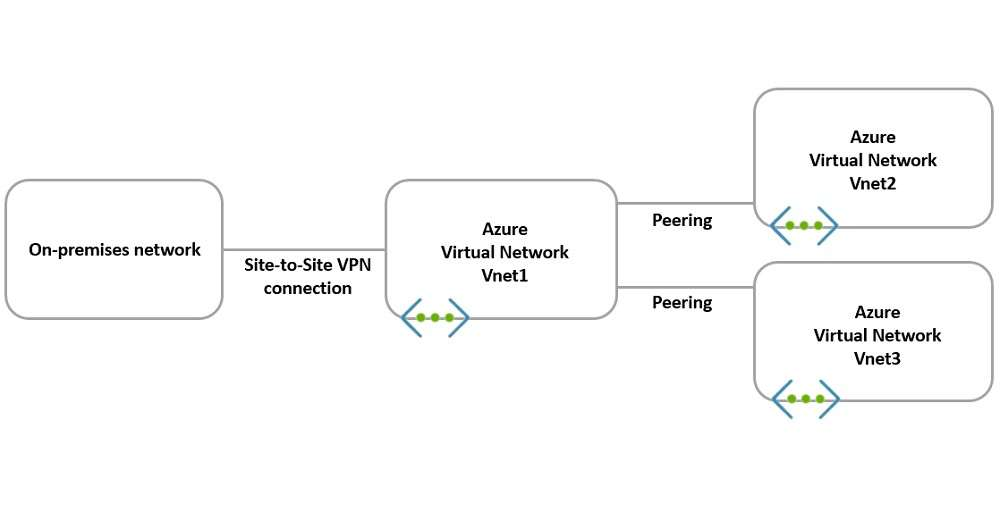

You have the hybrid network shown in the Network Diagram exhibit.

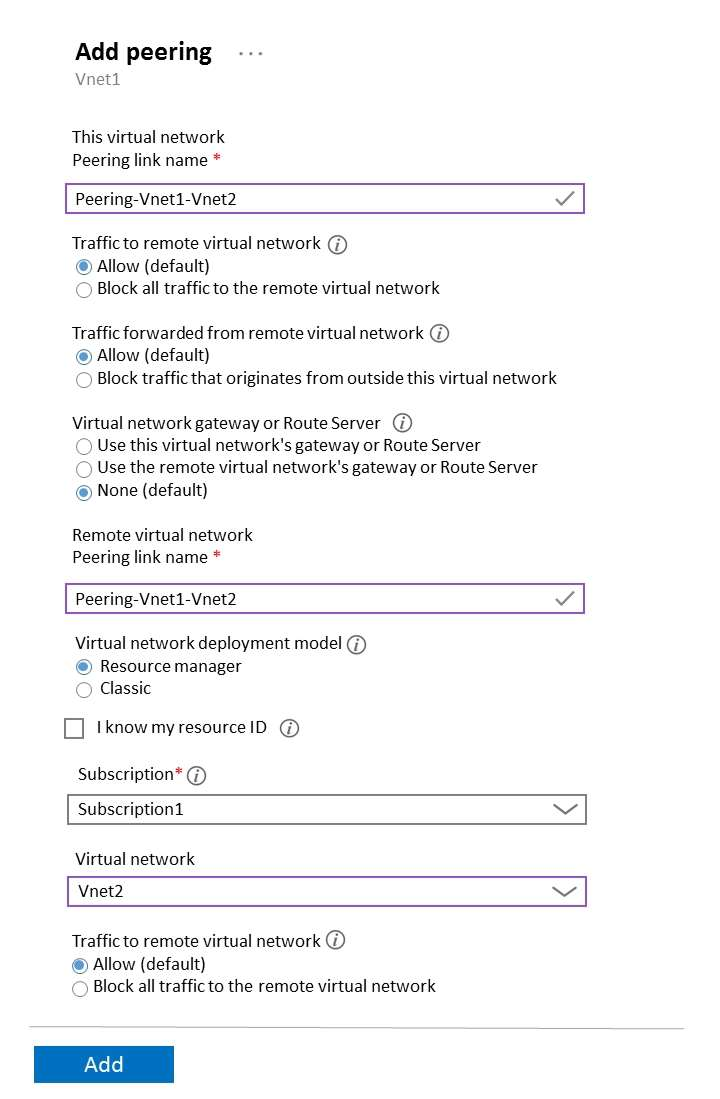

You have a peering connection between Vnet1 and Vnet2 as shown in the Peering-Vnet1-Vnet2 exhibit.

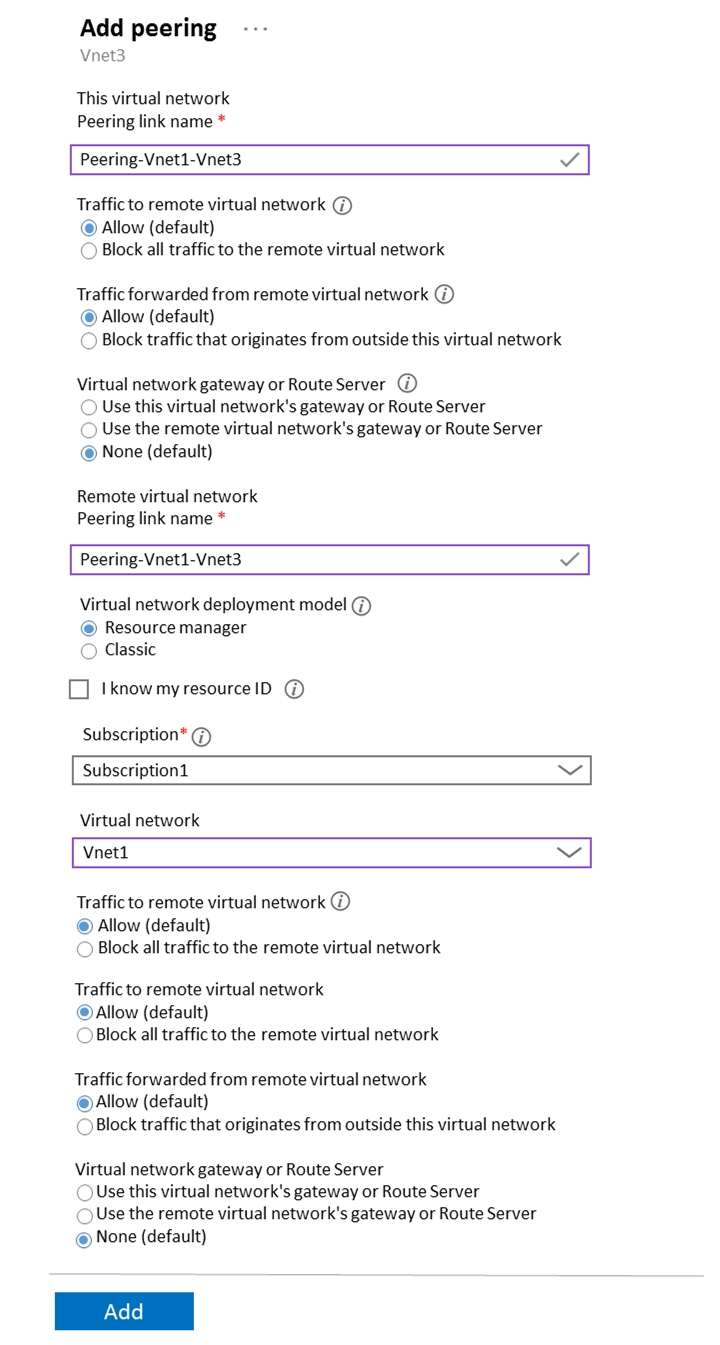

You have a peering connection between Vnet1 and Vnet3 as shown in the Peering-Vnet1-Vnet3 exhibit.

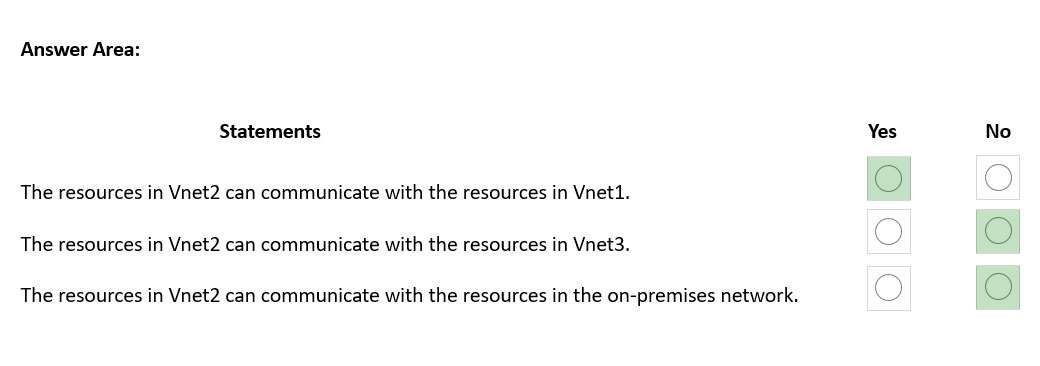

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

Note: Each correct selection is worth one point.

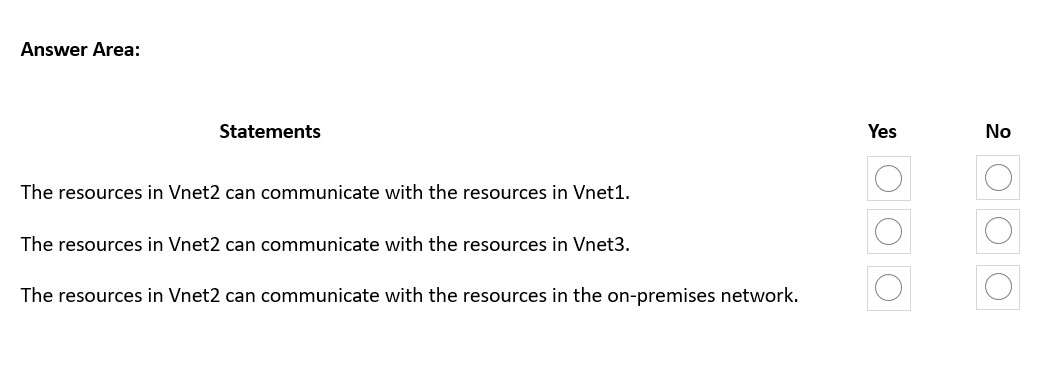

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Box 1: Yes
Virtual network peering seamlessly connects two Azure virtual networks, merging the two virtual networks into one for connectivity purposes.

Box 2: No
No Virtual Gateway is used.

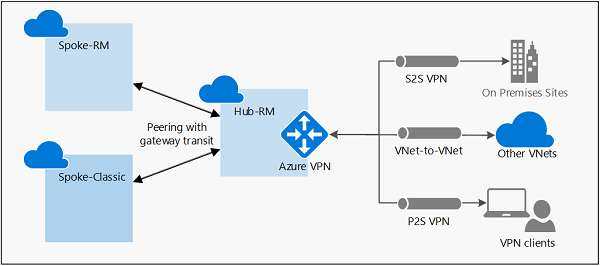

Gateway transit is a peering property that lets one virtual network use the VPN gateway in the peered virtual network for cross-premises or VNet-to-VNet connectivity. The following diagram shows how gateway transit works with virtual network peering.



In the diagram, gateway transit allows the peered virtual networks to use the Azure VPN gateway in Hub-RM. Connectivity available on the VPN gateway, including S2S, P2S, and VNet-to-VNet connections, applies to all three virtual networks.

Box 3: No
No Virtual Gateway is used.


Reference:

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-peering-gateway-transit



View Related Case Study

HOTSPOT (Drag and Drop is not supported)

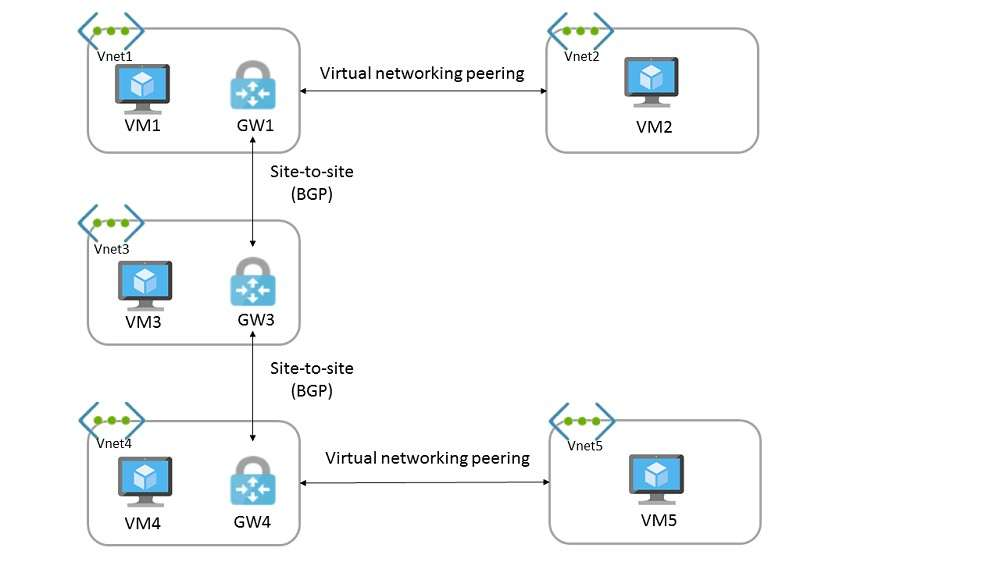

You have the Azure environment shown in the exhibit.



You have virtual network peering between Vnet1 and Vnet2. You have virtual network peering between Vnet4 and Vnet5. The virtual network peering is configured as shown in the following table.

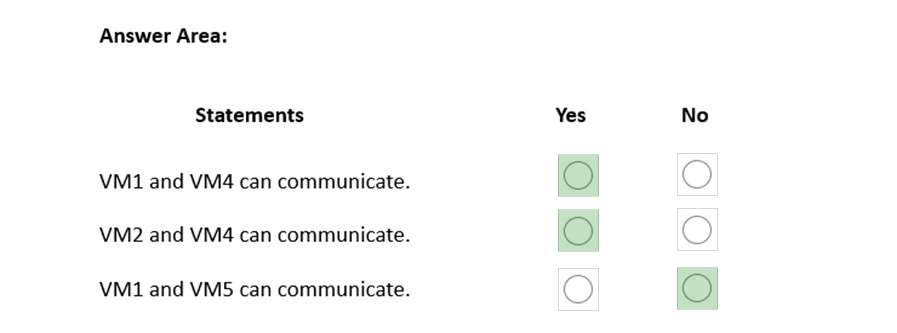

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

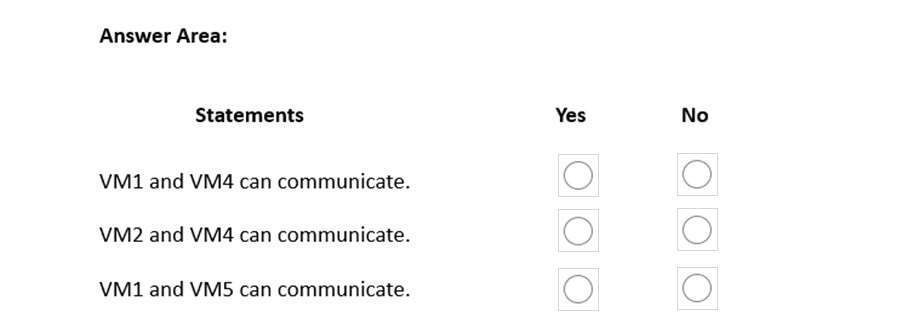

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Box 1: Yes
Virtual network peering seamlessly connects two Azure virtual networks, merging the two virtual networks into one for connectivity purposes. Gateway transit is a peering property that lets one virtual network use the VPN gateway in the peered virtual network for cross-premises or VNet-to-VNet connectivity. The following diagram shows how gateway transit works with virtual network peering.



In the diagram, gateway transit allows the peered virtual networks to use the Azure VPN gateway in Hub-RM. Connectivity available on the VPN gateway, including S2S, P2S, and VNet-to-VNet connections, applies to all three virtual networks.
In hub-and-spoke network architecture, gateway transit allows spoke virtual networks to share the VPN gateway in the hub, instead of deploying VPN gateways in every spoke virtual network.

Box 2: Yes
VM2 uses the remote gateway GW1 to reach VM4.

Box 3: No
VM2 can reach VM4 through GW1, but not VM5 as VNEt1 does not use remote Gateways.


Reference:

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-peering-gateway-transit https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-troubleshoot-peering-issues



Viewing page 4 of 75
Viewing questions 16 - 20 out of 369 questions
