Free AZ-700 Exam Braindumps (page: 3)

Page 2 of 66
PDF with 343 Questions

You have an Azure virtual network and an on-premises datacenter.
You are planning a Site-to-Site VPN connection between the datacenter and the virtual network.
Which two resources should you include in your plan? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

  1. a user-defined route
  2. a virtual network gateway
  3. Azure Firewall
  4. Azure Web Application Firewall (WAF)
  5. an on-premises data gateway
  6. an Azure application gateway
  7. a local network gateway

Answer(s): B,G


Reference:

https://docs.microsoft.com/en-us/azure/vpn-gateway/tutorial-site-to-site-portal



HOTSPOT (Drag and Drop is not supported) (Drag and Drop is not supported)
You need to connect an on-premises network and an Azure environment. The solution must use ExpressRoute and support failing over to a Site-to-Site VPN connection if there is an ExpressRoute failure.
What should you configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

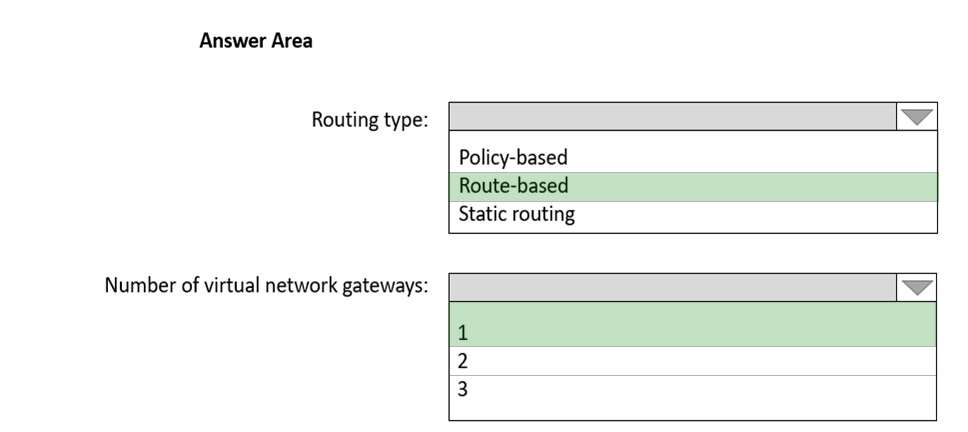

Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:


Reference:

https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager



Your company has an on-premises network and three Azure subscriptions named Subscription1, Subscription2, and Subscription3.
The departments at the company use the Azure subscriptions as shown in the following table.
All the resources in the subscriptions are in either the West US Azure region or the West US 2 Azure region.
You plan to connect all the subscriptions to the on-premises network by using ExpressRoute.
What is the minimum number of ExpressRoute circuits required?

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5

Answer(s): A


Reference:

https://docs.microsoft.com/en-us/azure/expressroute/expressroute-introduction



Your company has offices in New York and Amsterdam. The company has an Azure subscription. Both offices connect to Azure by using a Site-to-Site VPN connection.
The office in Amsterdam uses resources in the North Europe Azure region. The office in New York uses resources in the East US Azure region.
You need to implement ExpressRoute circuits to connect each office to the nearest Azure region. Once the ExpressRoute circuits are connected, the on-premises computers in the Amsterdam office must be able to connect to the on-premises servers in the New York office by using the ExpressRoute circuits.
Which ExpressRoute option should you use?

  1. ExpressRoute FastPath
  2. ExpressRoute Global Reach
  3. ExpressRoute Direct
  4. ExpressRoute Local

Answer(s): B


Reference:

https://docs.microsoft.com/en-us/azure/expressroute/expressroute-global-reach
