Free ASVAB Section 3: Mechanical Comprehension Exam Braindumps (page: 9)

Page 8 of 47
PDF with 187 Questions

If a force of 200 pounds is exerted over an area of 10-square inches, what’s the psi?

  1. 10
  2. 15
  3. 20
  4. 200

Answer(s): C

Explanation:

You can calculate psi as Pressure = Force/Area. So, in this problem, P = 200/10 = 20.

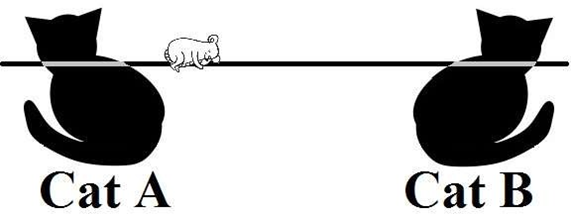

In the figure above, if Cat A moves toward the middle of the seesaw to get a better look at the mouse, Cat B will __________.

  1. remain stationary
  2. move toward the ground
  3. rise in the air
  4. instigate a cat fight

Answer(s): B

Explanation:

The Cat B will move towards the ground



If a ramp measures 6 feet in length and 3 feet in height, an object weighing 200 pounds requires how much effort to move using the ramp?

  1. 200 pounds
  2. 100 pounds
  3. 50 pounds
  4. 300 pounds

Answer(s): B

Explanation:

The formula to determine mechanical advantage of an incline plane is Length of Ramp ÷ Height of Ramp = Weight of Object ÷ Effort.
Plugging in the numbers gives you:
6/3 = 200/E
6E = 600
E = 100



A micrometer is used to measure _______________.

  1. small changes in temperature
  2. changes in psi
  3. thicknesses to a few thousandths of an inch
  4. objects invisible to the unaided eye

Answer(s): C

Explanation:

Micrometers measure very small but not microscopic objects.
