QUESTION: 25

Refer to the exhibit. The vPCneighborship between two switches is in suspended state. Which configuration change resolves the issue and brings up the vPCneighborship?

Change STP Port Type to Network on the peer switch
Enable Bridge Assurance on the local switches
Configure QoS MTU value of 9216 on the peer switch
Add VLAN 400-401 to the configuration on the local switch

Answer(s): C

Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/troubleshooting/guide/N5K_Troubleshooting_Guide/n5K_ts_vpc.pdf

Reveal Solution Next Question

Refer to the exhibit.

The VXLAN fabric is deployed with this configuration:

•The VLAN 50 interface has no IP address on VTEP1 and VTEP4
•The VLAN 100 interface has no IP address on VTEP2 and VTEP3
•The nve1 interface is configured on all VTEPs

Host A experiences timeouts when attempting to ping host B. Which set of actions allows host A to reach host B?

On VTEP1, associate VNI 50000 to Test_Telco VRF
On VTEP4, associate VNI 50000 to Test_Telco VRF
On VTEP2, associate VNI 30000 to Test_Telco VRF
On VTEP4, associate VNI 20000 to Test_Telco VRF
On VTEP1, associate VNI 30000 to Test_Telco VRF
On VTEP4, associate VNI 20000 to Test Telco VRF
On VTEP2, associate VNI 55000 to Test_Telco VRF
On VTEP4, associate VNI 50000 to Test_Telco VRF

Answer(s): A

Reveal Solution Next Question

QUESTION: 27

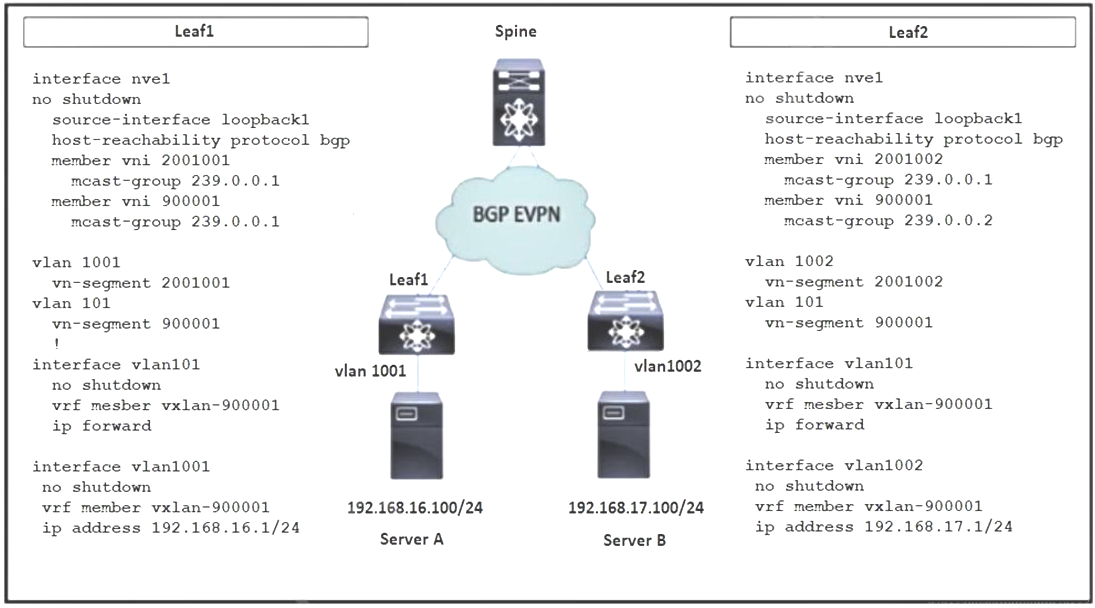

Refer to the exhibit.

To avoid service disruption, an engineer must move the server from LEAF_1 to LEAF_2. After running the test, the engineer noticed that LEAF_2 failed to forward network traffic into the VXLAN fabric. The BGP, interface NVE, and VNI were confirmed to be configured as expected. Which two actions must be taken on LEAF_2 to resolve the issue? (Choose two.)

Add fabric forwarding mode anycast-gateway on interface Vlan100.
Configure correspondent IP addressing on every interface.
Change the fabric forwarding anycast-gateway-mac MAC address.
Remove ip forward from interface Vlan30 and add it on interface Vlan100.
Enable HMM tracking to advertise host routes into the VXLAN fabric.

Answer(s): C,E

Reveal Solution Next Question

QUESTION: 28

Refer to the exhibit.

A network engineer must use BGP to route IPv4 and IPv6 routes between R1 and R2. The IPv4 addresses are exchanged as expected between the routers through BGP. The routers have reached an Established BGP state. However, the IPv6 routes from R2 fail to show in the routing table of R1. Which action resolves the issue?
