QUESTION: 29

Refer to the exhibit.

A network engineer notices a sudden interruption to the HSRP adjacency between the switches. The packet loss is reported on the servers for which the default gateway is set as the virtual IP of the HSRP. All servers on the VLAN can exchange ping messages. Which configuration set must be applied on the HSRP peers to resolve the adjacency issue?

key 0
accept-lifetime 00:00:00 Oct 01 2018 23:59:59 Sep 01 2020
key 0
send-lifetime 00:00:00 Oct 01 2018 23:59:59 Sep 01 2020
key 1
send-lifetime 00:00:00 Jun 01 2018 23:59:59 Sep 01 2022
key 1
accept-lifetime 00:00:00 Jun 01 2018 23:59:59 Sep 01 2020

Answer(s): D

Reveal Solution Next Question

QUESTION: 30

Refer to the exhibit.

The expected routes are not being leaked as expected from VRF RED to VRF BLUE. Which action resolves the issue?

Include the "le 32" knob under the RED_TO_BLUE_ACL prefix list.
Set the community to 65000:65000 under the route map
Configure VRF BLUE under the BGP configuration
Change the route targets under the VRFs

Answer(s): B

Reveal Solution Next Question

QUESTION: 31

Refer to the exhibit.

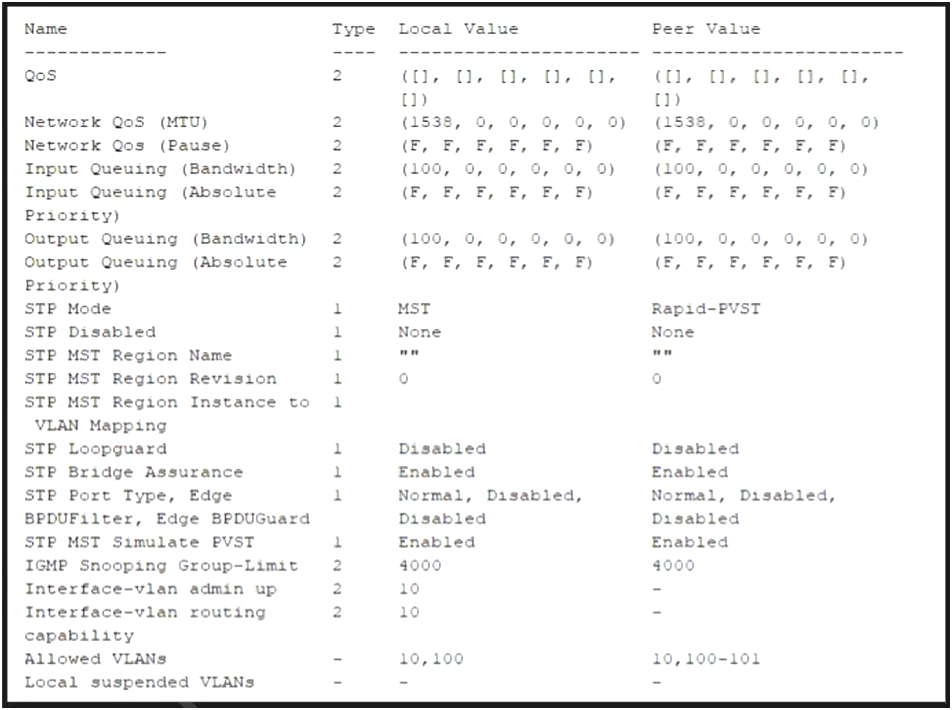

The administrator set up two pairs of Cisco Nexus switches. The administrator set different vPC priorities on all four Nexus switches. As soon as the administrator activates the vPC between the two pairs the network faces different issues. The problems range from both Nexus pairs declare themselves as root bridge, as well as spanning-tree inconsistencies and traffic forwarding issues. Which action resolves these issues?

Change the role priority on one pair.
Configure a vPC peer link between both peers.
Change domain ID on one pair to a different ID.
Configure peer-config-check-bypass on both pairs.

Answer(s): C

Reveal Solution Next Question

QUESTION: 32

Refer to the exhibit.

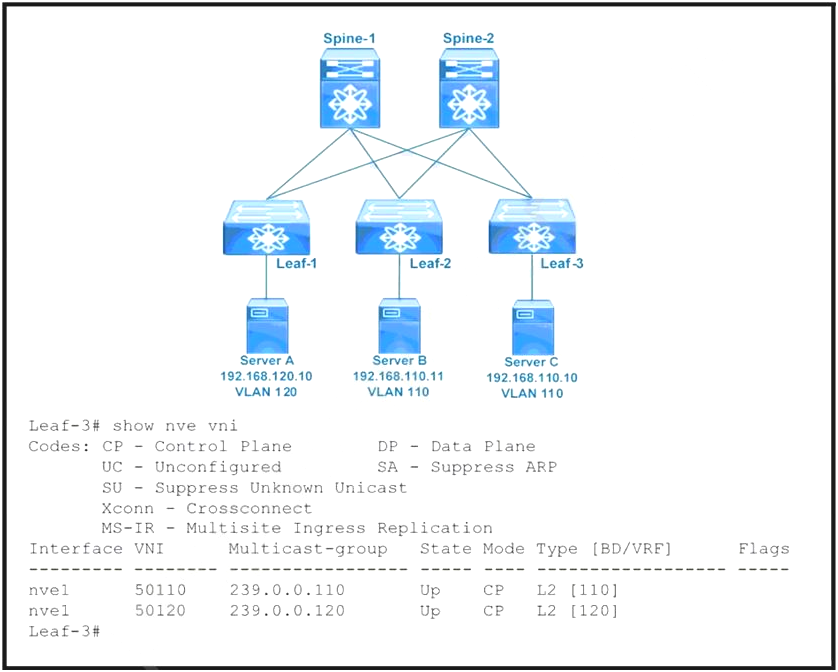

Server A and Server B experience inter-L2VN reachability issues. A BGP L2VPN session is up on both leaf switches and each leaf switch learns the host routes of its local server, but the remote host routes are not in the VRF routing table. Which configuration resolves the issue?

Associate Layer 3 VNI to VRF on the NVE interface for both leaf switches.
Modify multicast groups on Leaf1 to be unique per VNI.
Apply an anycast gateway to each SVI gateway on both leaf switches.
Configure BGP VPNv4 neighborship between the leaf switches and the spine.

Answer(s): A

Reveal Solution Next Question
