Free 350-601 Exam Braindumps (page: 2)

Page 2 of 132
PDF with 521 Questions

DRAG DROP (Drag and Drop is not supported)

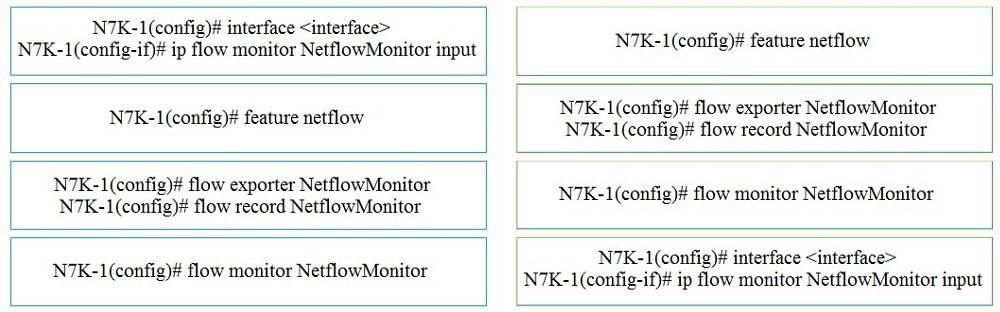

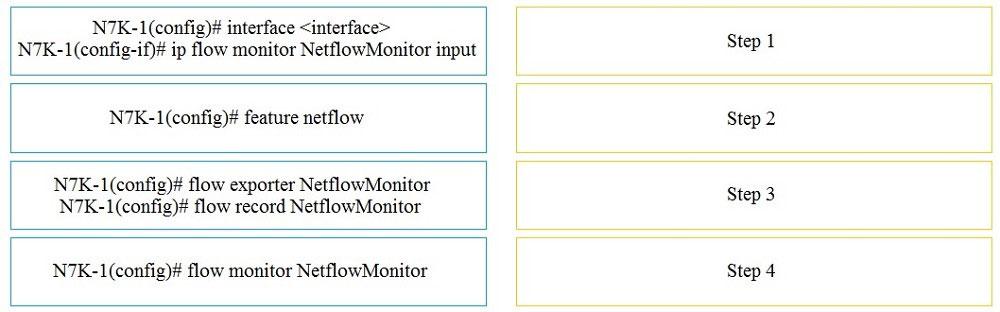

An engineer is implementing NetFlow on a Cisco Nexus 7000 Series Switch.
Drag and drop the NetFlow commands from the left into the correct order they must be entered on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:


Reference:

https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/112213-netflow-nexus7000-nsox-configex.html



Which virtual MAC address is the default for HSRP version 2 group 10?

  1. 0000.5E00.0110
  2. 0000.0C9F.F00A
  3. 3784.0898.1C0A
  4. 0000.0C9F.F010

Answer(s): B

Explanation:

In HSRP version 1, group numbers are restricted to the range from 0 to 255. HSRP version 2 expands the group number range from 0 to 4095.
HSRP version 2 permits an expanded group number range, 0 to 4095, and consequently uses a new MAC address range 0000.0C9F.F000 to 0000.0C9F.FFFF.
The increased group number range does not imply that an interface can, or should, support that many HSRPgroups. The expanded group number range was changed to allow the group number to match the VLAN number on subinterfaces.
The last digits of the MAC address is the HSRP group, in hex. 10 in hex is A.


Reference:

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipapp_fhrp/configuration/15-mt/fhp-15-mt-book/fhp-hsrp-v2.pdf

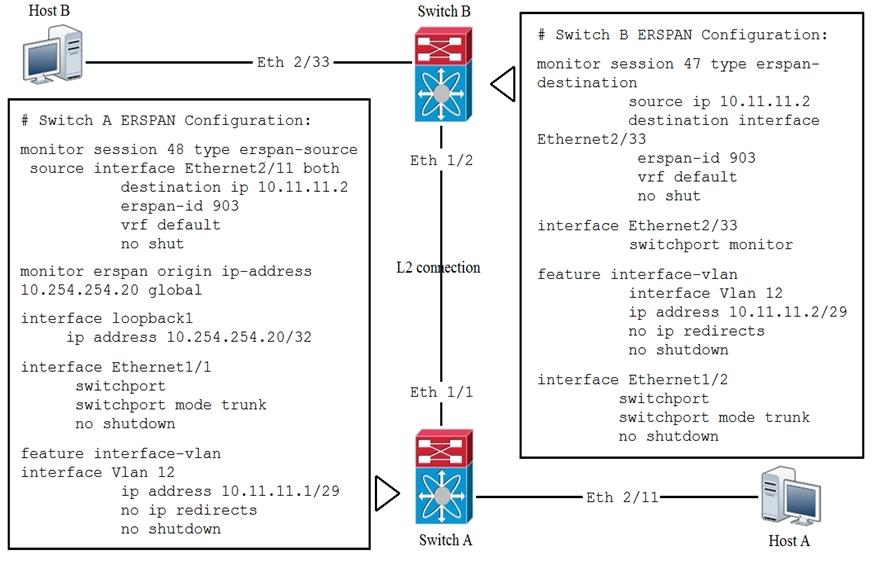

Refer to the exhibit.
Which statement about the ERSPAN configuration in this environment is true?

  1. The session number of the source of ERSPAN spanned traffic must have a session ID of 47 for the traffic analyzer to receive the traffic.
  2. Host B is the source of ERSPAN spanned traffic and host A is the traffic analyzer.
  3. The session number of the source of ERSPAN spanned traffic must have a session ID of 48 for the traffic analyzer to receive the traffic.
  4. Host A is the source of ERSPAN spanned traffic and host B is the traffic analyzer.

Answer(s): D

Explanation:

The Erspan-id needs to match between the switches. The ג€monitor sessionג€ ID is only locally significant and does not need to match on each device.


Reference:

https://www.letsconfig.com/how-to-configure-erspan-on-cisco-nexus-switches/

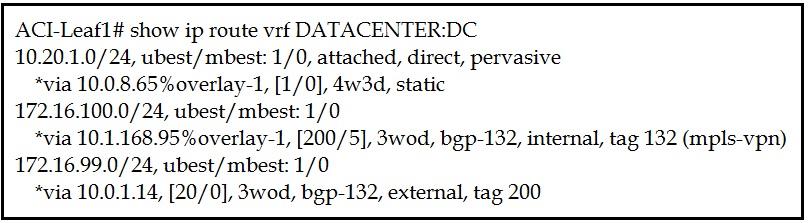

Refer to the exhibit.
Which two statements about the routing table of the leaf switch are true? (Choose two.)

  1. 10.20.1.0/24 is a BD subnet in ACI.
  2. The next hop 10.0.1.14 for route 172.16.99.0/24 is the TEP address of a border leaf in ACI.
  3. 172.16.100.0/24 is a BD subnet in ACI.
  4. The next hop 10.1.168.95 for route 172.16.100.0/24 is the TEP address of a border leaf in ACI.
  5. The next hop 10.0.8.65 for route 10.20.1.0/24 is the TEP address of a border leaf in ACI.

Answer(s): A,D

Explanation:

10.20.1.0/24 is a BD in ACI because of the part which says "direct, pervasive".
For the other answer choice, we see form the administrative distance and the "internal" naming, we know that this is an external subnet (172.16.100.0/24) and that as all external routes are exchanged withing the fabric through MP-BG. MP-BGP is actually used to populate the leaves in the fabric with routing on how to reach those external routes. In MP-BGP, the spines are only the route reflectors. So from this we know that the next hop of the external subnet will be a VTEP of a leaf.
