Free Cisco® 350-601 Exam Braindumps (page: 19)

Page 19 of 132
PDF with 549 Questions

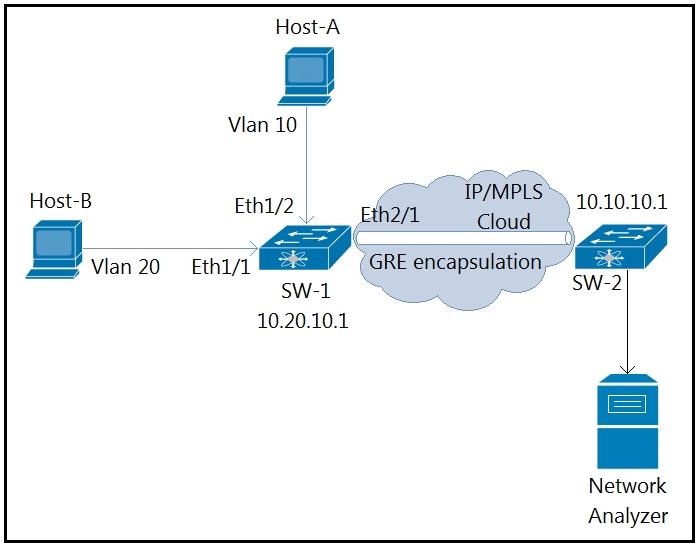

Refer to the exhibit. An engineer monitors ingress traffic from Host-A and all traffic for VLAN 20 from Host-B. Which configuration must be implemented to monitor and export traffic to Network Analyzer?

  1. SW-1(config)# monitor session 5 SW-1(config-monitor)# source interface ethernet 1/2 rx SW-1(config-monitor)# source interface ethernet 1/1 tx SW-1(config-monitor)# source vlan 20 both SW-1(config-monitor)# destination ip 10.10.10.1 SW-1(config-monitor)# no shut
  2. SW-1(config)# monitor session 5 type erspan-source SW-1(config-erspan-src)# source interface ethernet 1/2 rx SW-1(config-erspan-src)# source vlan 20 both SW-1(config-erspan-src)# destination ip 10.10.10.1 SW-1(config-erspan-src)# erspan-id 111 SW-1(config-erspan-src)# no shut
  3. SW-1(config)# monitor session 5 SW-1(config-monitor)# source interface ethernet 1/2 rx SW-1(config-monitor)# source interface ethernet 1/1 both SW-1(config-monitor)# source vlan 20 both SW-1(config-monitor)# destination interface ethernet 2/1 SW-1(config-monitor)# no shut
  4. SW-1(config)# monitor session 5 type erspan SW-1(config-erspan-src)# source interface ethernet 1/2 rx SW-1(config-erspan-src)# source interface ethernet 1/1 both SW-1(config-erspan-src)# destination ip 10.10.10.1 SW-1(config-erspan-src)# mtu 1000 SW-1(config-erspan-src)# no shut

Answer(s): B

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5600/sw/system_management/7x/b_5600_System_Mgmt_Config_7x/ b_6k_System_Mgmt_Config_7x_chapter_01110.html

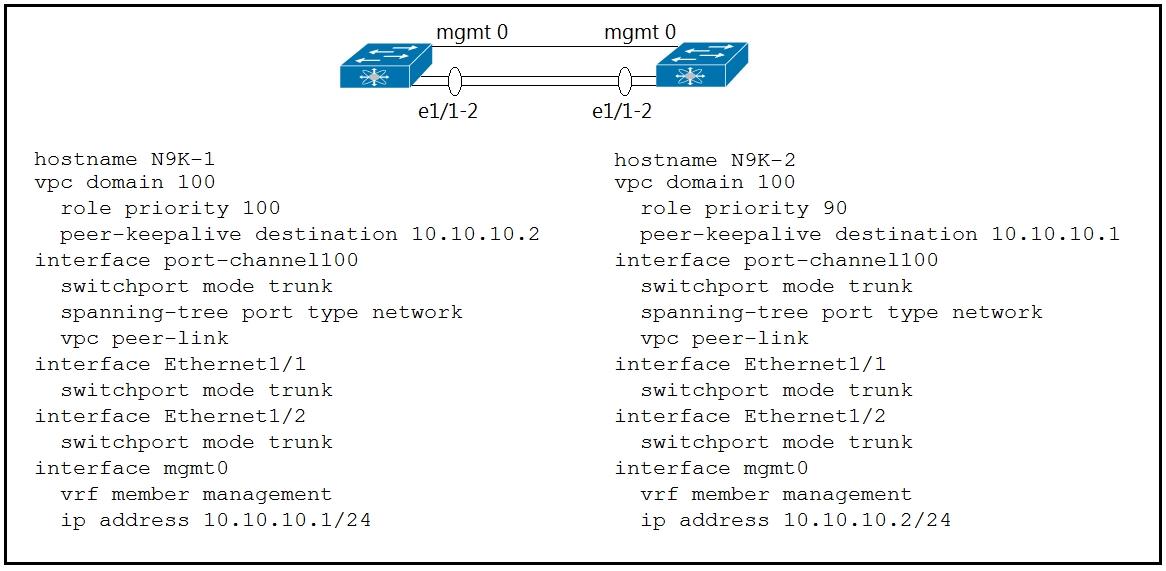

Refer to the exhibit. Which action completes the vPC domain implementation?

  1. Add the vPC member ports to the vPC channel group.
  2. Configure the system MAC on the vPC domain.
  3. Include the VRF management on the vPC domain.
  4. Allow VLANs on the vPC peer link member interfaces.

Answer(s): A

Explanation:

The physical interfaces need to be added to the Portchannel group. Configuring allowed VLANs on the vPC peer-link is optional.



Refer to the exhibit. A network engineer is implementing a configuration checkpoint on a Cisco Nexus 9000 Series Switch. The configuration must skip any existing vPC configuration errors and must complete if there are any configuration errors. The engineer finished the vPC domain configuration part. Which command completes the checkpoint implementation?

  1. best-effort
  2. stop-at-first-failure
  3. atomic
  4. verbose

Answer(s): A

Explanation:

The available options are:
1. atomic(default) Rollback only if there are no errors
2. Best-Effort: Rollback and skip any errors
3. Stop at First Failure : Rollback and stop if an error occurs


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-
OS_System_Management_Configuration_Guide_7x_chapter_01000.pdf



An engineer must implement a VXLAN-based data center interconnect. The long-distance transport provided by a service provider is IP-based, supports a maximum MTU of 1554 bytes, and does not support outbound traffic replication. Which action must be taken to build the data center interconnect?

  1. Announce host reachability over BGP.
  2. Create an IP access list and associate it with VNI to replicate traffic to remote VTEPs.
  3. Configure a route map to associate the IPs of the remote VTEPs.
  4. Implement BGP EVPN ingress replication.

Answer(s): D

Explanation:


Reference:

https://www.cisco.com/c/en/us/products/collateral/switches/nexus-9000-series-switches/white-paper-c11-739942.html



Viewing page 19 of 132
Viewing questions 73 - 76 out of 549 questions
