QUESTION: 77

DRAG DROP (Drag and Drop is not supported)
An engineer must configure HSPR protocol on two Cisco Nexus 9000 Series Switches running a virtual port channel. In addition, the HSRP implementation must meet these requirements:
-It must allow more than 500 groups.
-switch1 must act as the primary switch.
-Both switches must use a user-defined hardware address.

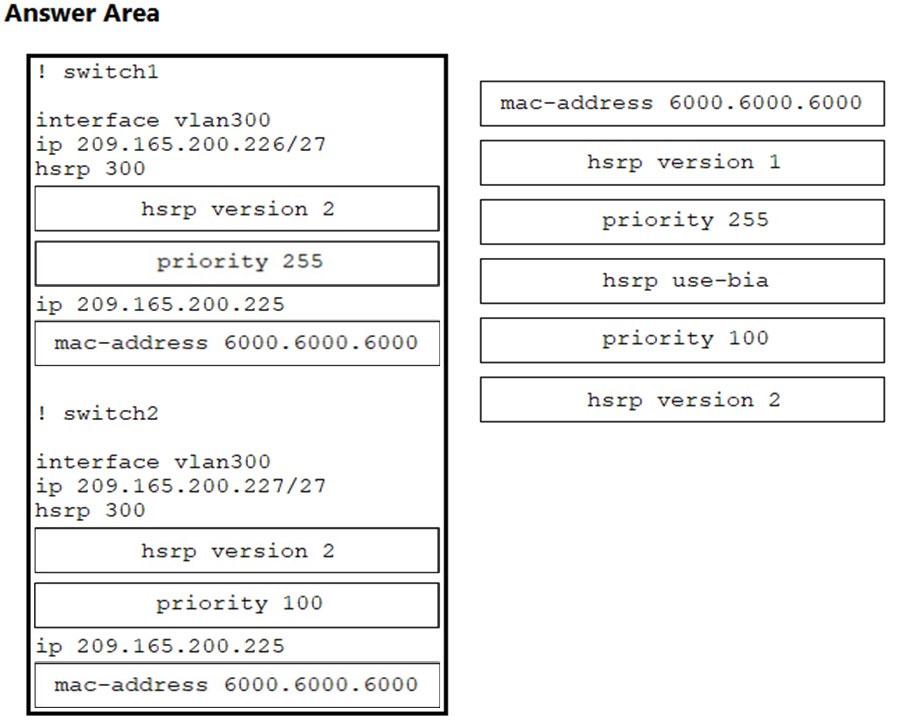

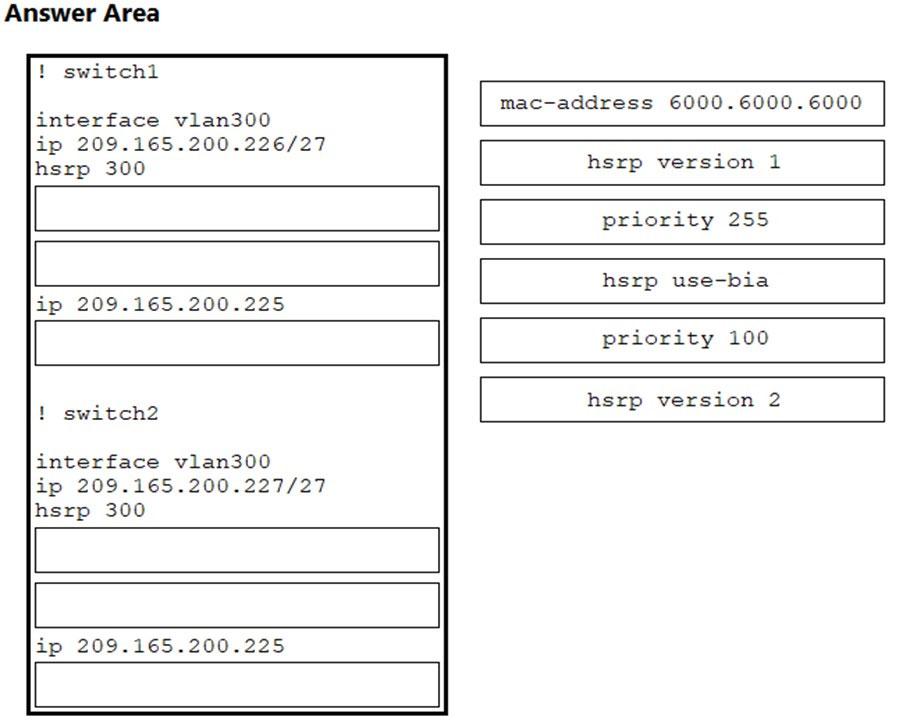

Drag and drop the commands from the right to complete a configuration of the HSRP on the left. The commands are used more than once. Not all commands are used.
Select and Place:

See Explanation section for answer.

Answer(s): A

Explanation:

Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/unicast/configuration/guide/l3_cli_nxos/l3_hsrp.html

Show Answer Next Question

QUESTION: 78

An engineer must configure OSPFv2 connectivity between a pair of Cisco Nexus switches. The connection between the switches must meet these requirements:
-Use unicast for updates.
-Use decentralized communication of updates.
-Full adjacency between switches.
Which configuration is needed to meet these requirements?

filter list between the neighbors
stub area between the neighbors
virtual link between the neighbors
interface with a type of p2p network

Answer(s): C

Explanation:

Reference:

https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/47866-ospfdb7.html

Show Answer Next Question

QUESTION: 79

An infrastructure architect is analyzing the deployment type for an application. Several companies must be able to operate the application environment and integrate it with a third-party protocol. The development team also must have maximum control over their development environment, including the operating system used, Python interpreter, and corresponding libraries. Which cloud deployment solution meets these requirements?

private cloud Platform as a Service
public cloud Storage as a Service
hybrid cloud Software as a Service
community cloud Infrastructure as a Service

Answer(s): D

Explanation:

A community cloud is defined as a cloud infrastructure in which multiple organizations share resources and services based on common operational and regulatory requirements.
Comparisons of IAAS, PAAS, and SAAS can be found at the link below:

Reference:

https://byjus.com/gate/difference-between-iaas-paas-and-saas/

Show Answer Next Question

QUESTION: 80

An engineer is performing an ISSU upgrade on the Cisco MDS 9000 Series Switch. What is the impact on the control plane of the switch?

It is down for less than 80 seconds.
It remains down for more than 80 seconds but less than 140 seconds.
It remains down until the next reboot.
It remains up throughout the update.

Answer(s): A

Explanation:

On a 95xx or 97xx Series MDS with dual supervisors, during the firmware upgrade, the new code is loaded on the standby supervisor. A switchover then occurs in order to make the supervisor that runs the new code active. The code is then loaded on the previously active supervisor, and it becomes the new standby supervisor. The data plane continues to pass fibre channel traffic. The modules then non-disruptively start at the lowest numbered module and proceed to the highest.
On a 91xx, 92xx, or 93xx Series MDS, which has only one supervisor, the supervisor (control plane) is reloaded. The data plane continues to pass fibre channel traffic.
If you intend to upgrade via Telnet, Secure Shell (SSH), or Simple Network Management Protocol (SNMP) (Fabric Manager/Device Manager), ensure that you have an Ethernet connection to both of the supervisors. After the Telnet session is lost during the upgrade, you must reconnect to the switch. You will connect to the previous standby supervisor now.

Reference:

https://www.cisco.com/c/en/us/support/docs/storage-networking/mds-9000-nx-os-san-os-software/118952-technote-mds9k-00.html

Show Answer Next Question
